Removal and Installation Procedures
6-- 14
TDS7104 & TDS7054 Service Manual
1. Remove the bottom cover: See Figure 6--4, on page 6--14.
2. Orient the oscilloscope: Set the oscilloscope so its top is down on the work
surface and its bottom is facing you.
a. Remove the four T-15 Torx screws that secure the bottom cover to the
oscilloscope.
b. Remove the bottom cover from the oscilloscope.
3. Reinstallation: Do in reverse steps a and b to reinstall the bottom cover.
Bottom cover
T-15 T orx
screw (4)

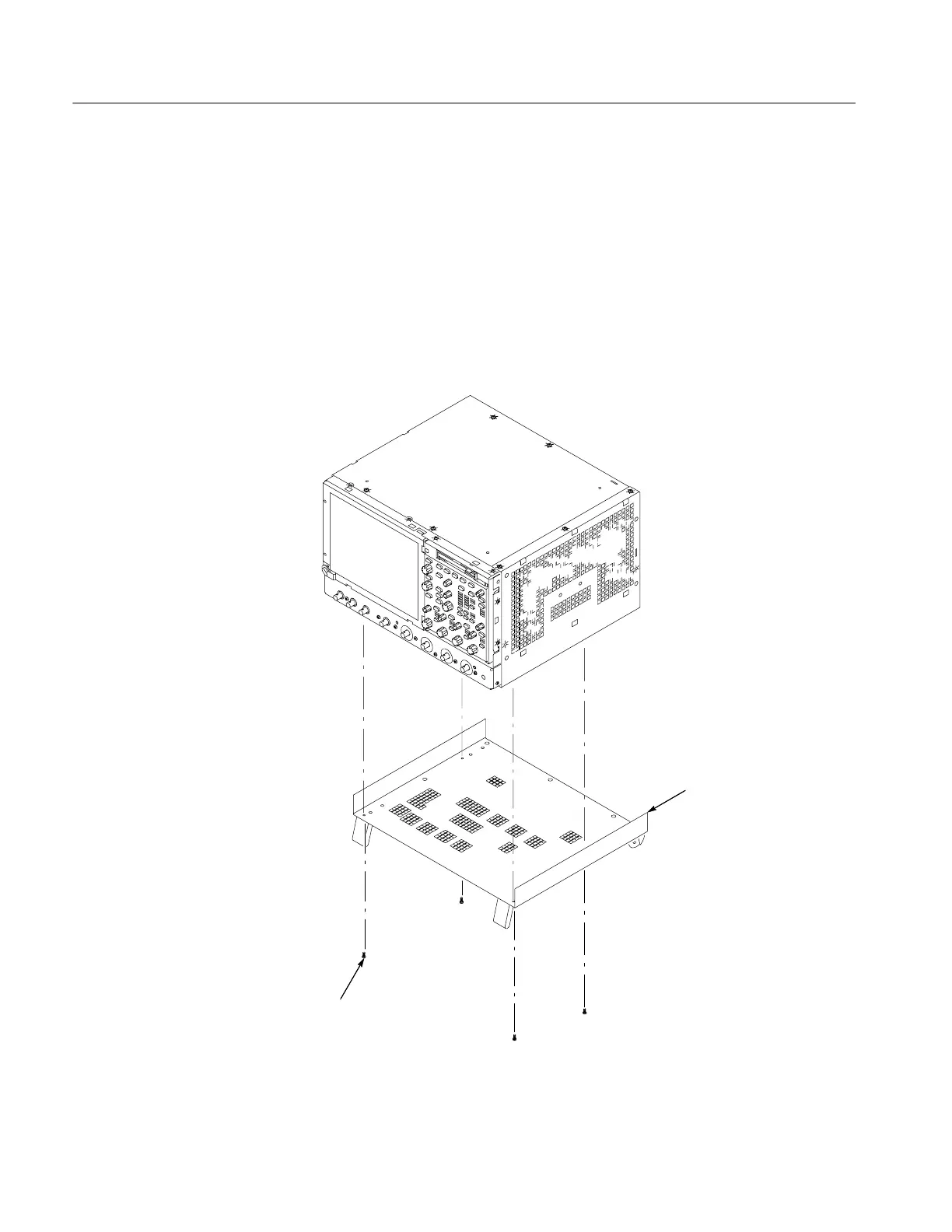

Figure 6--4: Bottom cover removal
Bottom Cover
