Removal and Installation Procedures
6-- 50
TDS7104 & TDS7054 Service Manual
T--15 Torx
screw (6)
Acquisition
circuit board
T--15 Torx
screw (6)
Flex circuit
Coaxial
cables (2)
Gasket
1.1

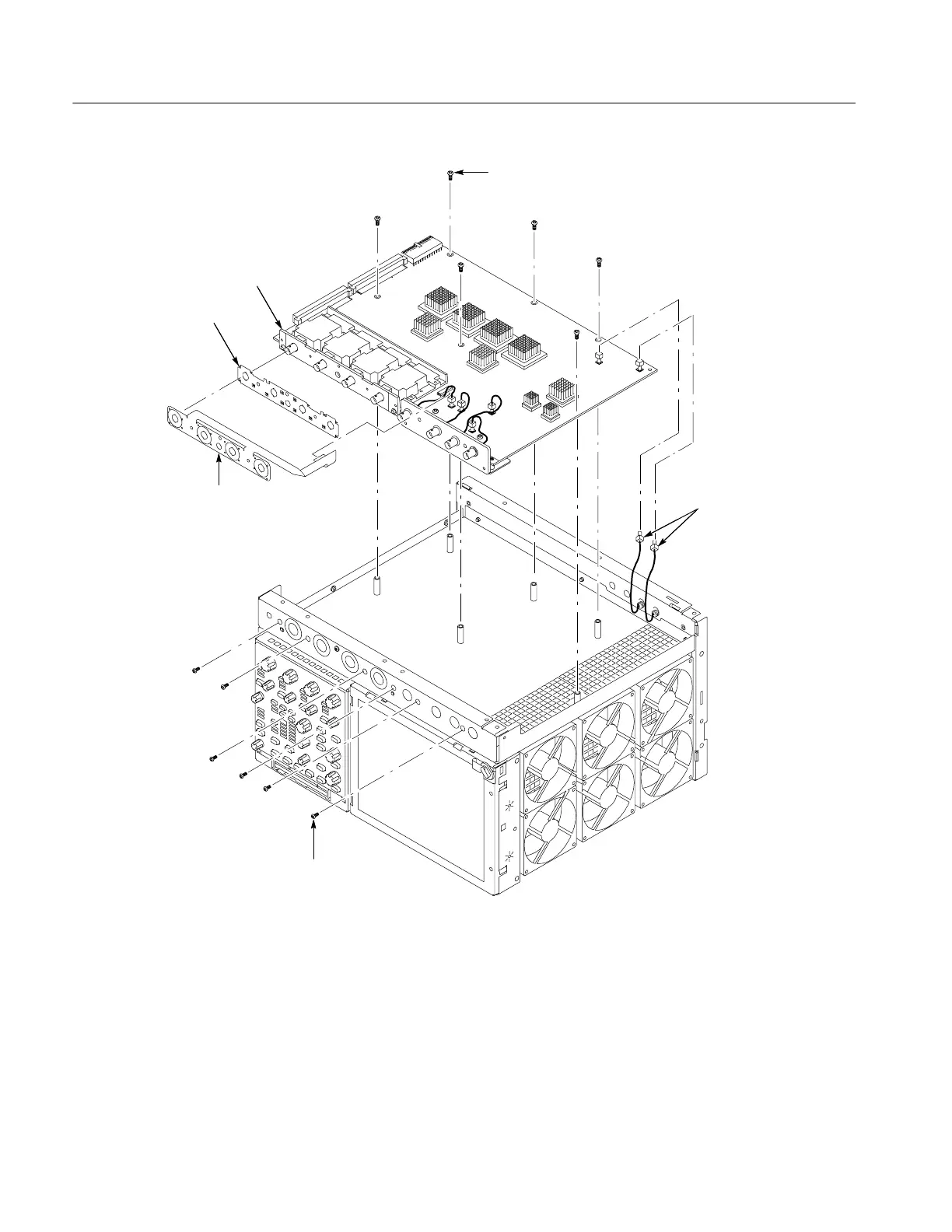

Figure 6--29: Acquisition circuit board removal
