Fig. &
•
Index Tektronix
Serial No.
Mfr.
•
No. Part No. Effective Dscont Qty 12345 Name & Description
Code
Mfr. Part No.
1-1
426-2214-01
FRAME,PNL,CAB.:FINISHED
TK1943 ORDER BY DESC
•
ATTACHING PARTS
-2
211-0503-00
3
SCREW,MACHINE:6-32 X 0.188,PNH,STL TK0435 ORDER BY DESC
•
END ATTACHING PARTS
-3
351-0286-08
2
GUIDE.PL-IN UNl:LOWER,NYLON
0JR05 ORDER BY DESC
•
ATTACHING PARTS
-4
213-0813-00
2
SCREW,TPG,TF:4-20,0.312L,PLASTITE,FLH,STL
72228 ORDER BY DESC
•
END ATTACHING PARTS
-5
367-0381-00
B010100
B010464
HANDLE,BOW:0.125 X 0.75,ALUMINUM
80009
367-0381-00
•
367-0381-01
B010465 B022458 HANDLE,BOW:0.125 X 0.75,ALUMINUM
TK1943
ORDER BY DESC
367-0381-02
B022459 HANDLE,BOW:0.125 X 0.75,ALUMINUM
TK1943 ORDER BY DESC
•
(REMOVE FOR OPTION 11)
ATTACHING PARTS
-6
134-0196-01
B010100 B010464
2
KNOB ASSEMBLY:REPLACEMENT
80009
134-0196-01
• 134-0196-02
B010465
2
KNOB ASSEMBLY:TM502A
0KBZ5
ORDER BY DESC
-7
211-0008-00
2
SCREW,MACHINE:4-40 X 0.25,PNH,STL
TK0435 ORDER BY DESC
•
-7.1
210-1307-00
2
WASHER,LOCK:0.115 ID,SPLIT,0.025 THK,SI BRZ
0KB01 ORDER BY DESC
•
-8
210-0993-00
2 WASHER,FLAT:0.143ID X 0.75 OD X 0.051,BRS
86928
ORDER BY DESC
END ATTACHING PARTS
•
-9
441-1813-00
B010100
B023538
CHAS,PWR SUPPLY:ALUMINUM
TK1943
441-1813-00
441-1813-01
B023539 CHAS,PWR SUPPLY:ALUMINUM
TK1943
441-1813-01
•
ATTACHING PARTS
-10
212-0023-00
4
SCREW,MACHINE:8-32 X 0.375,PNH,STL
TK0435
ORDER BY DESC
•
-11
211-0504-00
SCREW,MACHINE:6-32 X 0.250,PNH,STL
TK0435
ORDER BY DESC
END ATTACHING PARTS
•
-12
348-0640-00
4
GROMMET,PLASTIC:BLACK,ROUND,0.188 ID
0JR05
ORDER BY DESC
-13
214-3026-00
4
SPRING,GROUND:CU BE
TK1569 ORDER BY DESC
•
-14
348-0430-00
5
BUMPER,PLASTIC:BLACK POLYURETHANE
2K262 ORDER BY DESC
-15
407-3641-00
B010100
B012110 2
BRKT,CLAMP:ALUMINUM
TK1943
407-3641-00
•
407-3641 -01
B012111
B013420 2
BRACKET,CLAMP:TM502A(rM503A
TK1943 ORDER BY DESC
214-4289-01
B013421
2
HEAT SINK,XSTR:ALUMINUM TK1943 ORDER BY DESC
•
ATTACHING PARTS
-16
211 -0102-00
4
SCREW,MACHINE:4-40 X 0.5,FLH, 100 DEG,STL
TK0435
ORDER BY DESC
•
END ATTACHING PARTS
-17
--- ----
B010100 B013420 CIRCUIT BD ASSY:POWER SUPPLY
•
-
-
----
B013421 CIRCUIT BD ASSY:POWER SUPPLY
(SEE A1 REPL)
•
ATTACHING PARTS
-18
211 -0008-00
4
SCREW,MACHINE:4-40 X 0.25,PNH,STL
TK0435 ORDER BY DESC
•
END ATTACHING PARTS
CKT BD ASSY INCLUDES:
-19
2
. CONN,EDGECARD:PCB,;STR,2 X 28,0.156 CTR
•
.(SEE A1J3020,A1J3050 REPL)
-20
214-1593-02
2
. KEY.CONN PLZN:CKT BOARD CONN
0JR05 ORDER BY DESC
•
-21
--- -- - .CONN,HDR PWR:PCB,;MALE,STR,1 X 7,0.156
•
.(SEE A1J1010 REPL)
-22
-- ----
.CONN,HDR PWR:PCB,;MALE,STR,1 X 8,0
•
.(SEE A1J1040 REPL)
-22.1
175-4306-00 B013421
4
.CA ASSY,SP,ELEC:3,22 AWG,4.0 L,RIBBON
80009
175-4306-00
•
•
•
7-4
REV DEC 1993

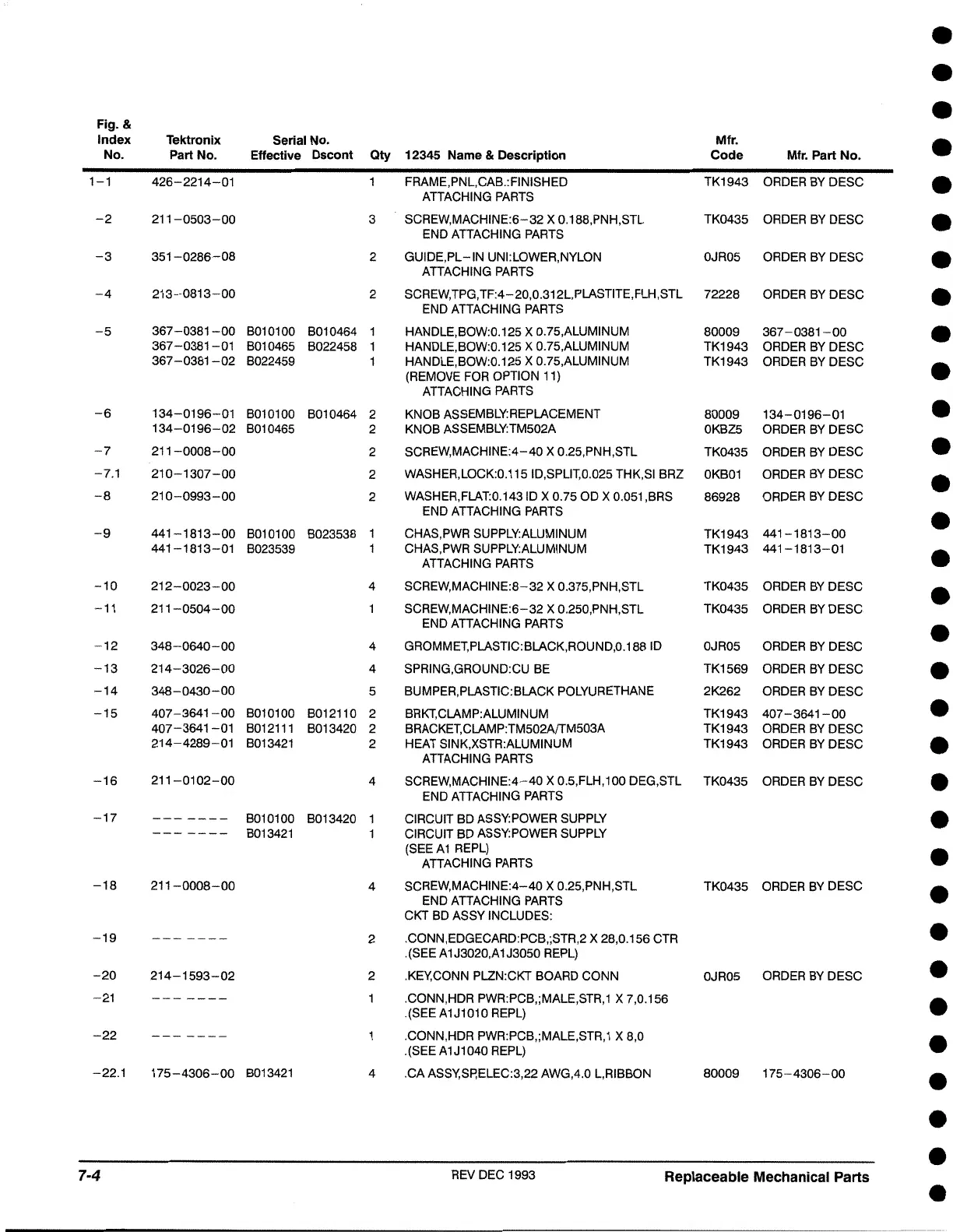

Replaceable Mechanical Parts
•
