Handle/Tilt Stand
Installation
TM 502A Instruction Manual
Before you install the handle, check the handle kit contents against the
following list:
2
Phillips screws
2
metal washers
2
lock washers
2
plastic locking buttons
1 metal handle
A Phillips screwdriver is the only tool required.
Perform the following steps to install the handle/tilt stand .
1. Turn off the power switch and disconnect the line cord .
/

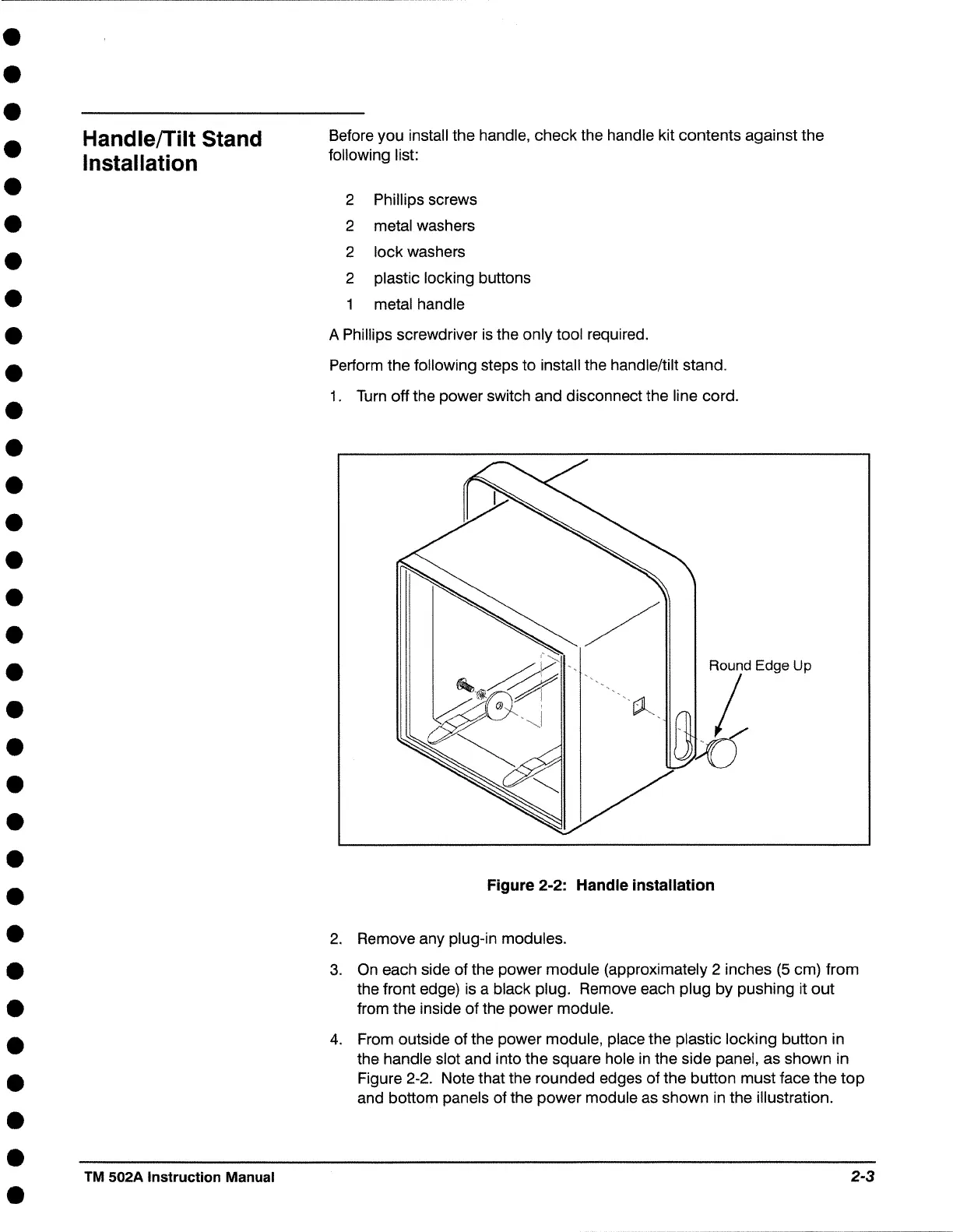

Figure 2-2: Handle installation
2. Remove any plug-in modules .
3. On each side of the power module (approximately 2 inches (5 cm) from
the front edge) is a black plug. Remove each plug by pushing it out
from the inside of the power module.
4. From outside of the power module, place the plastic locking button in
the handle slot and into the square hole in the side panel, as shown in
Figure 2-2. Note that the rounded edges of the button must face the top
and bottom panels of the power module as shown in the illustration .
2-3
