Tektronix TriMode P7700 Series User Manual

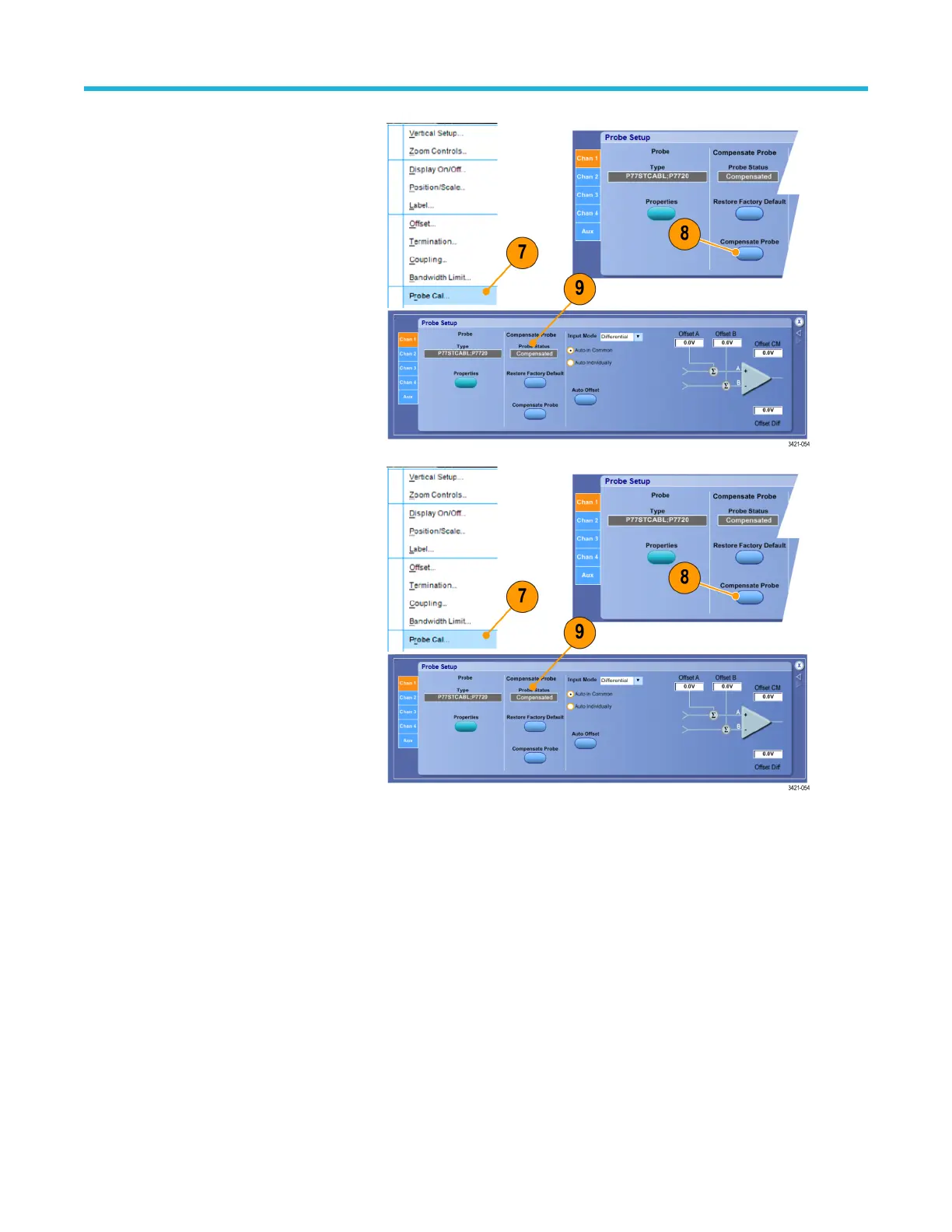

In the oscilloscope menu bar,
select Vertical and then select
Probe Cal.
The Probe Setup dialog box
appears.
Select the Compensate Probe
button.
The probe calibration routine
runs, optimizing the probe to the
oscilloscope for each input mode
setting.
Double-tap a Channel badge to
open a configuration menu for
that item.
The configuration menu appears.
Tap the Probe Setup panel to
confirm probe settings and run
compensation on the probe.
Tap the Compensate Probe
button
The probe compensation routine
runs, optimizing the probe to the
oscilloscope for both probe
attenuation settings.
When the compensation routine
completes, Compensated
appears in the Probe Status box.
When the compensation routine
completes, Pass appears in the
Probe Compensation Status box.
Functional check and calibration
P7700 Series TriMode™ Probes 16
