Teldat 4Ge User Manual for further information on its configuration and how to access the device.
In order to find out what type of license you have, you need to execute a ping to IP address 192.168.1.1. The device,
which has been previously configured with the default configuration and is correctly connected by means of an Ether-
net cable, will respond to the ping indicating whether you are dealing with a router or a 4Ge.
Note
Some devices leave the factory with customized settings for a client. This personalization means that
the device may have a different default configuration from the one shown above.
3.5 Connecting data
The Teldat 4Ge router has the following data connections.
3.5.1 ETHERNET Connection
The Teldat 4Ge router incorporates an Ethernet 10/100/1000 BaseT Switch port with automatic MDI/MDIX.

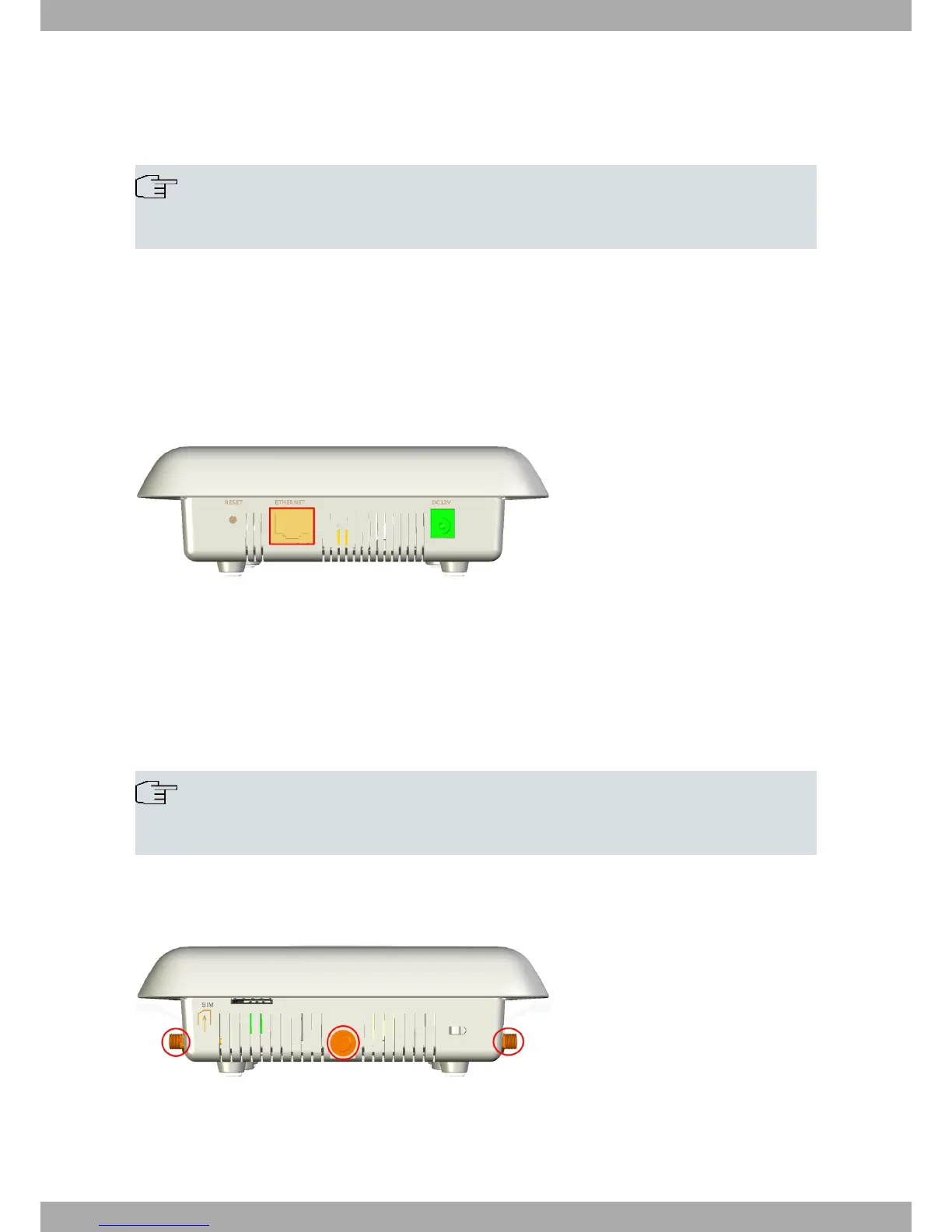

Fig. 13: Ethernet Port
3.5.2 Connecting the WWAN Antenna
The Teldat 4Ge router has three connectors to connect WWAN antennas. To assemble and disassemble the anten-
nas, simply screw them into the connectors labeled Cell (located on the front panel of the router).
The installation of these antennas in the Teldat 4Ge router is essential in order to improve the quality of the signal
received and transmitted by the cellular model.
Note
To obtain a good quality performance, the Teldat 4Ge router should always have the WWAN antennas
installed.
Some cellular telephony technologies use the antenna diversity technique to improve the quality of the signal re-
ceived (HSUPA, CDMA EV-DO, etc.). Due to this, the Teldat 4Ge router family incorporates various WWAN con-
nectors.
Fig. 14: The WWAN Antennas seen from the front panel
When the antennas are not directly connected to the router but installed through extension cords, the minimum dis-
tance between the two of them must be 7 cm. The maximum recommended distance between the two is 25 cm.
To achieve an optimum performance, the radio frequency accessories installed (antennas and cables) should be
3 Components and Power Supply Teldat S.A.
14 Teldat 4Ge Router
