Teldat Regesta Smart PRO User Manual

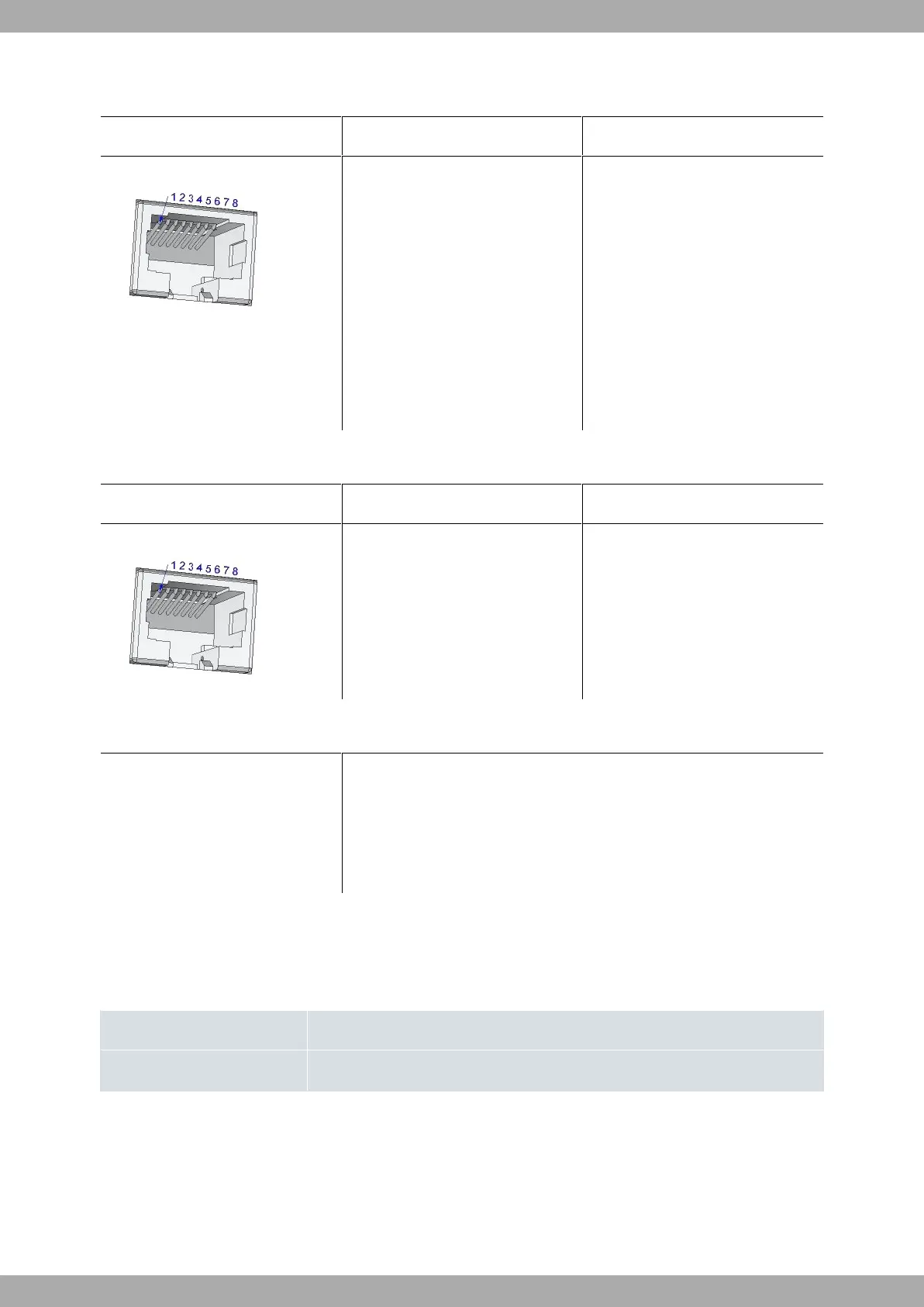

A.1.7 RS-232 serial port connectors
RJ45
PIN SERIAL
1
2
3
4
5
6
7
8
RTS
DTR
TxD
GND
CD
RxD
DSR
CTS
A.1.8 RS-485 serial port connectors
RJ45
PIN SERIAL
2
3
4
6
7
2H_R/TX-_4H_TX-
2H_R/TX+_4H_TX+
GND
4H_RX+
4H_RX-
A.1.9 Power supply connector
2-wire 5.08 mm pitch terminal
block
- AC-powered version:
Phase and Neutral connectors without assignation.
- DC-powered version:
V+ and V- connectors with polarity.
A.2 Technical specifications
A.2.1 Hardware architecture
MEMORY 128 Mbytes in SDRAM.
STORAGE UNIT FLASH Memory (32 Mbytes).
Technical Information Teldat S.A.
38 Regesta Smart PRO
