Teleco TVPLA868AC2 - 2.4 Quick Limit Switch Learning

7
3. SELF-LEARNING OF LIMIT SWITCHES
MOTOR 1 rst, then MOTOR 2
ATTENTION:
ON
1 2 3 4 5 6

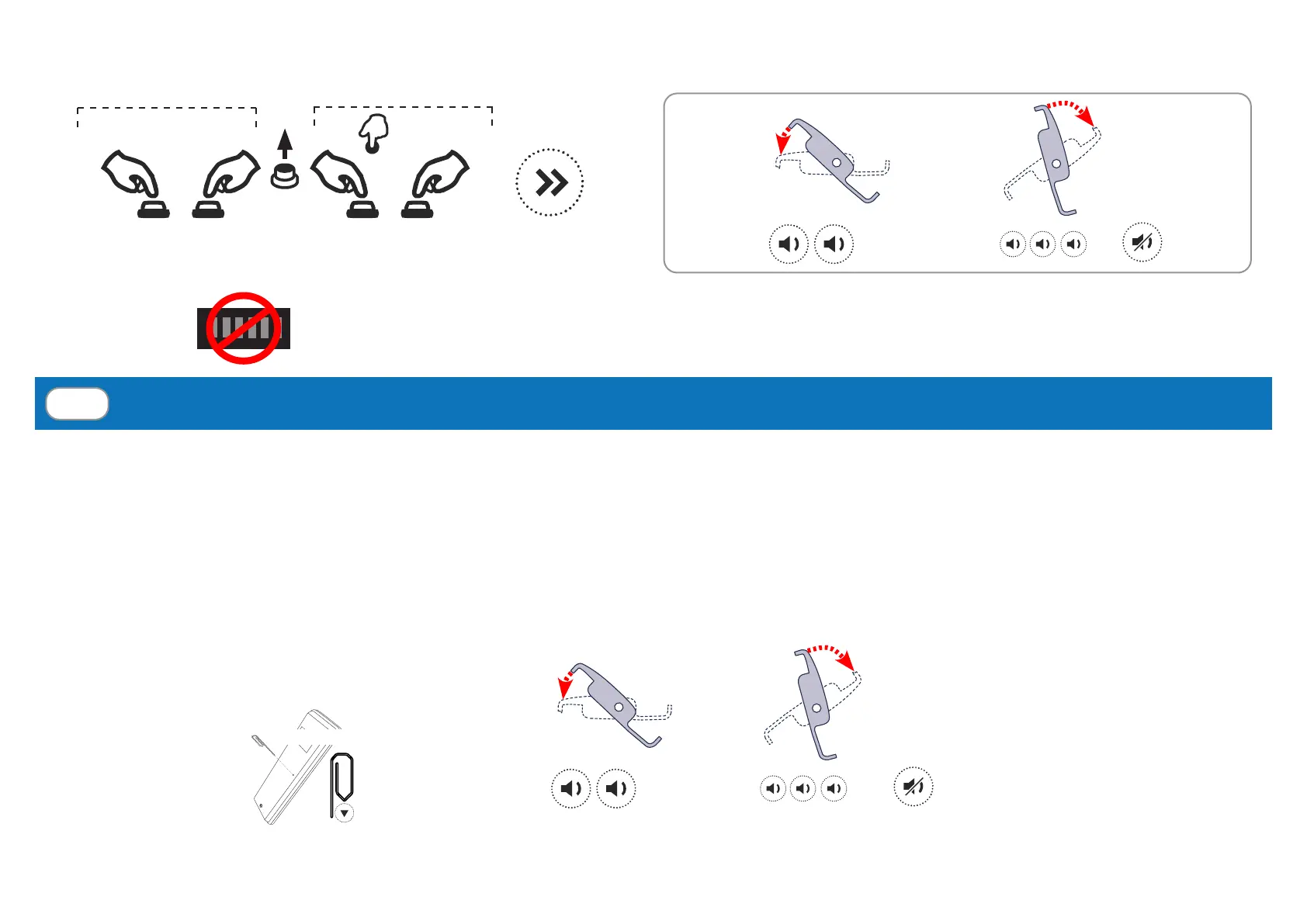

Press P1 and P2 simultaneously twice in quick succession and
hold them the second time for 5 s
DO NOT change the DIP conguration. This change would be signalled by a new intermittent sound and the ashing of L3,
and would require a new conguration procedure.
P2
+
P1
( 5 s)
P2
+
P1
complete
closing
complete
opening
...
...
< 1 s
2.4
QUICK LEARNING OF LIMIT SWITCH
If the following have been already programmed
• motor control mode
• the correct motor direction
• at least one transmitter for each of the independent motor output
• current threshold to be applied
it is possible to carry out the SELF-LEARNING OF LIMIT SWITCHES without accessing the control unit.
• Pergola with 2 synchronized motors: Together MOTOR 1 and MOTOR 2
• Pergola with 2 independent motors: MOTOR 1 rst, then MOTOR 2
Test the movement and the direction of the motors by
means of the memorized transmitter, after this keep the
button P3 of the transmitter pressed for 10 s.
Memorized
P3
( 10 s)
complete
closing
complete
opening
...
...
keep pressed
