Telecom Behnke 20-0043A-IP User Manual

54 www.behnke-online.de
GB
Instructions for Behnke SIP 2.0
Hardware
5VDC – 24 VDC
–
+
Ethernet connection
according to EIA/TIA 568 A
1: white-green
2: green
3: white-orange
6: orange

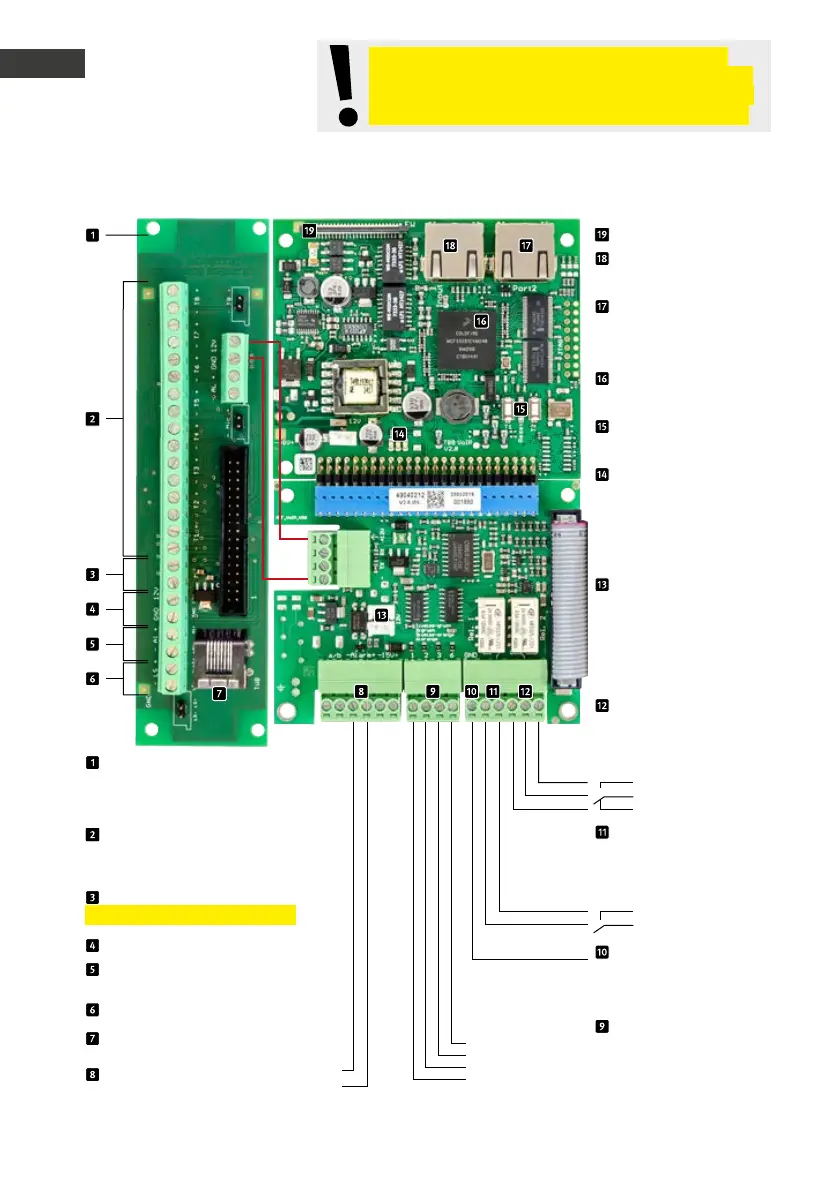

4.2. Remote electronics (up to 50m) 20-0005-IP
Connection for extensions
LAN receptacle INPUT
(SIP intercom station to Switch)
Network connection
PORT 2
(receptacle for additional IP devices,
e.g. an IP camera. Please adhere to the
technical data of the Switchport).
Master CPU
T1 + T2
Buttons to display device information
(cf. p. 55)
LEDs:
Red: Power supply PoE
(LED illuminated: PoE available)
blue: ready
(LED flashing Device “booting”)
(max 5 min)
Green: Registered on SIP server
Plug for module illumina-
tion (12V) / Illumination for
Behnke wide angle IP camera
exclusively intended to branch Behnke
labels and Behnke cameras with
illumination. Non-compliance can lead
to a circuit board defect.
Earthing
needed in case a
TNV-1 circuit is used (e.g. devices to be
mounted in a column without connection
to the building)
Relay 2
max. switching voltage: 60VDC/50VAC
max. switching current: 2A
max. switching cable max 62,5VA/60W
Please note that none of the above
specifications may be exceeded
Relay 1
max. switching voltage: 60VDC/50VAC
max. switching current: 2A
max. switching cable max 62,5VA/60W
Please note that none of the above
specifications may be exceeded
Make contact
Make contact
Control contact
Control contact
Rest contact
Please note: Operation only possible in conjunction
with connection box 43-9251. Please see the manual for
connection box 43-9251 for a detailed description of the
wiring between 20-0005-IP and connection box 43-9251
5VDC – 24 VDC
Alarm in
Sub circuit board
Suitable installation material for adaptation of
speaker, microphone and buttons at the door:
branch-off box 20-9251
Clamps buttons 1 to 8
potential-free buttons, max. 50m wire length +
min. 0.14mm² cross-section
(cf. page 45) (configurations steps 21 to 28)
Microphone
(please maintain the polarity!)
GND + 12V
Speakers
Alarm in
unlined
Connections
for key pad max. 50m
