Instructions for Stainless Steel Vertical Column Installation
3. Assembling the columns

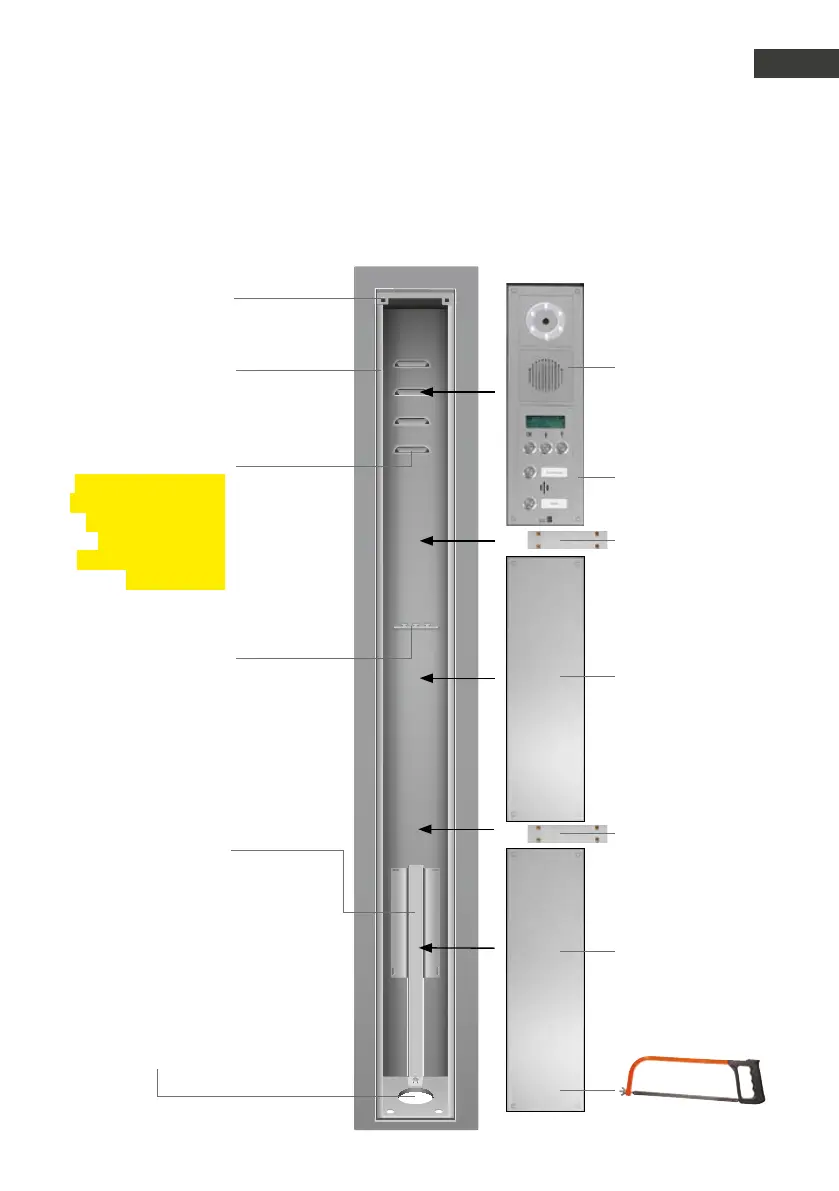

Behnke door
intercom station,
mm wide (e.g.
Series )
Front frame
Clamping plate 
*
Cover panel
with chamfered top
Clamping plate 
*
Cover panel without
chamfer to be short-
ened if necessary, lower
edge not visible
Clamping plate 
(firmly integrated
*)
Air vents
The two air vent areas
in the upper and lower
area of the stainless
steel column must
not be closed! Risk of
condensation.
Mounting rail for cable
fixing. Fasten the
cable with cable ties
(not included in the
box)
Support sheet for
door intercom sta-
tions, modules and
cover panels
Mounting plate for
fixing the -
basic electronics or
third-party products
(screw mounting not
provided for third-
party products)
Cable inlet from below
through the column's
base
(Prior to the installation, check that all the necessary mounting parts are available in sufficient quan-
tity for the correct installation of the column. Not all parts are included in the column box)
*equipped with M  box nuts
