ADR-3000 – System Introduction
Revision 1.10 4 November 2004
2.11 RM-4005 Remote Panel and Annunciator
The RM-4005 Remote Panel and Annunciator enables control and supervision of the
ADR-3000 fire alarm control panel from remote locations and key positions such as:
security officer, premises manager, or maintenance office.
The RM-4005 remote panel consists of an LCD display, keyboard, internal buzzer, and
features such as alarm output, trouble output, and an interface relay that reduces the
need for additional input/output interface cards.
The remote panels are connected to the main control panel via a twisted wire pair
(RS-485). As many as 16 remote panels can be connected to the control panel using
the same cable. Each remote panel should be configured with a unique address of 1 to
16. The communication and input/output circuits are fully supervised.
In large systems incorporating several control panels
connected via a peer-to-peer network as many as 16
remote panels can be connected to each of the control
panels.
RM-4005
ADR
3000
ADR
3000
RM-4005
RM-4005
Panel 1
(Partner 2:ON)
RS-485
RS-485
LonWorks
Event flow
11
1
Panel 2
(Partner 1:ON)
6
The RM-4005 operates with a 24 V
DC
power source that
can be supplied from the main control panel or a remote
power supply such as Telefire’s TPS-34A Analog
Addressable Remote Power Supply.
Please refer to the RM-4005 technical manual for further
details.

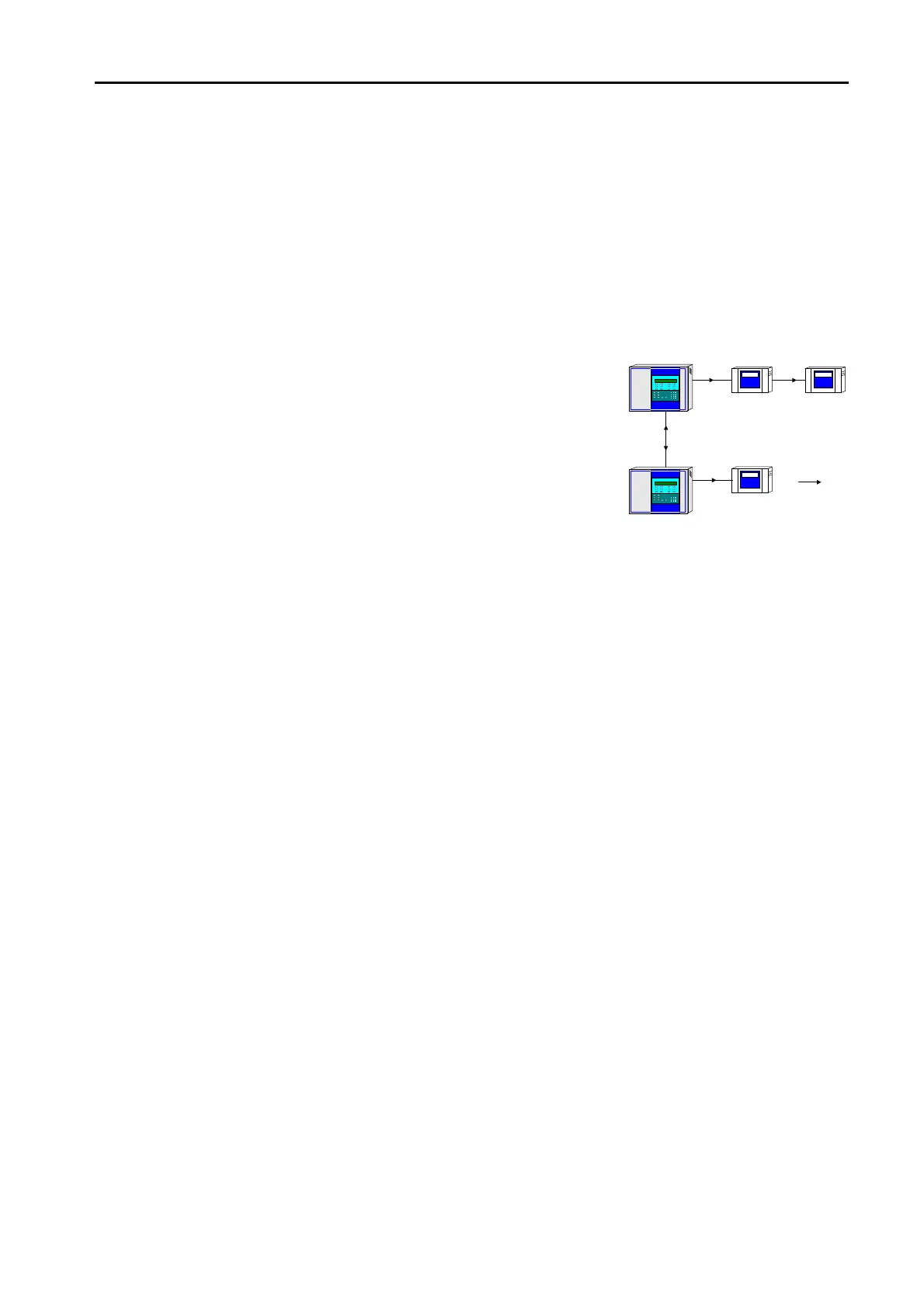

Figure 14 RM-4005 Event flow
– Page 8 –
To Next Page
