Telefire ADR-3000 – System Introduction
Revision 1.10 4 November 2004
1 System Introduction
The ADR-3000 intelligent fire alarm control panel monitors various analog addressable
initiating devices such as ionization and photoelectric smoke detectors, heat detectors,
flow switches and manual fire alarm call points.
The ADR-3000 intelligent fire alarm control panel controls notification devices such as
alarm bells, horns, strobe lights, annunciators, and automatic dialers as well as
automatic extinguishers.
Non-addressable initiating devices can be connected to the system via analog
addressable input modules. Non-addressable output devices can be connected to the
general outputs or via analog addressable output modules.
The ADR-3000 provides individual control and supervision of each analog addressable
device. Sensitivity adjustment, pre-alarm, maintenance and malfunction levels can be
set for each device independently.
Advanced conditional activation for each output device can be preformed from a single
control panel or a multi-unit network.
Unlike conventional systems, the ADR-3000 enables processing of analog signals
received from detectors, compensation of environment changes and drifts caused by
dust accumulation, while the alarm threshold setting values remains unaffected.
The system configuration allows considerable flexibility to in planning and installation,
starting as small as a single control panel with one SLC loop (127 addresses), and
enhanced by connecting two or more (as many as 32) control panels located in one or
several buildings in a peer-to-peer network, thus expanding the ADR-3000’s capacity
beyond 508 addresses and up to as many as 16,256 addresses. Each control panel on
the network can respond to alarm and trouble events that occurred in other control
panels.
Loop 4
RS-485
RS-232
ADR
3000
ADR
3000
LonWorks
ADR-3000 ADR-3000
General
Outputs
Alarm
Relay
Trouble
Relay
RM-4005 RM-4005
RM-4005 RM-4005
12
127
3
FIRE
12 1273
12
127
3
FIRE
12
127
3
As many as 32 fire alarm control panels
As many as 16 remote panels and annunciators
Loop 3
Loop 2
Loop 1
ADR-833
ADR
3000
FM200
FM200
Modem
PC
Printer
TCP/IP
Connection
9
ADR-833

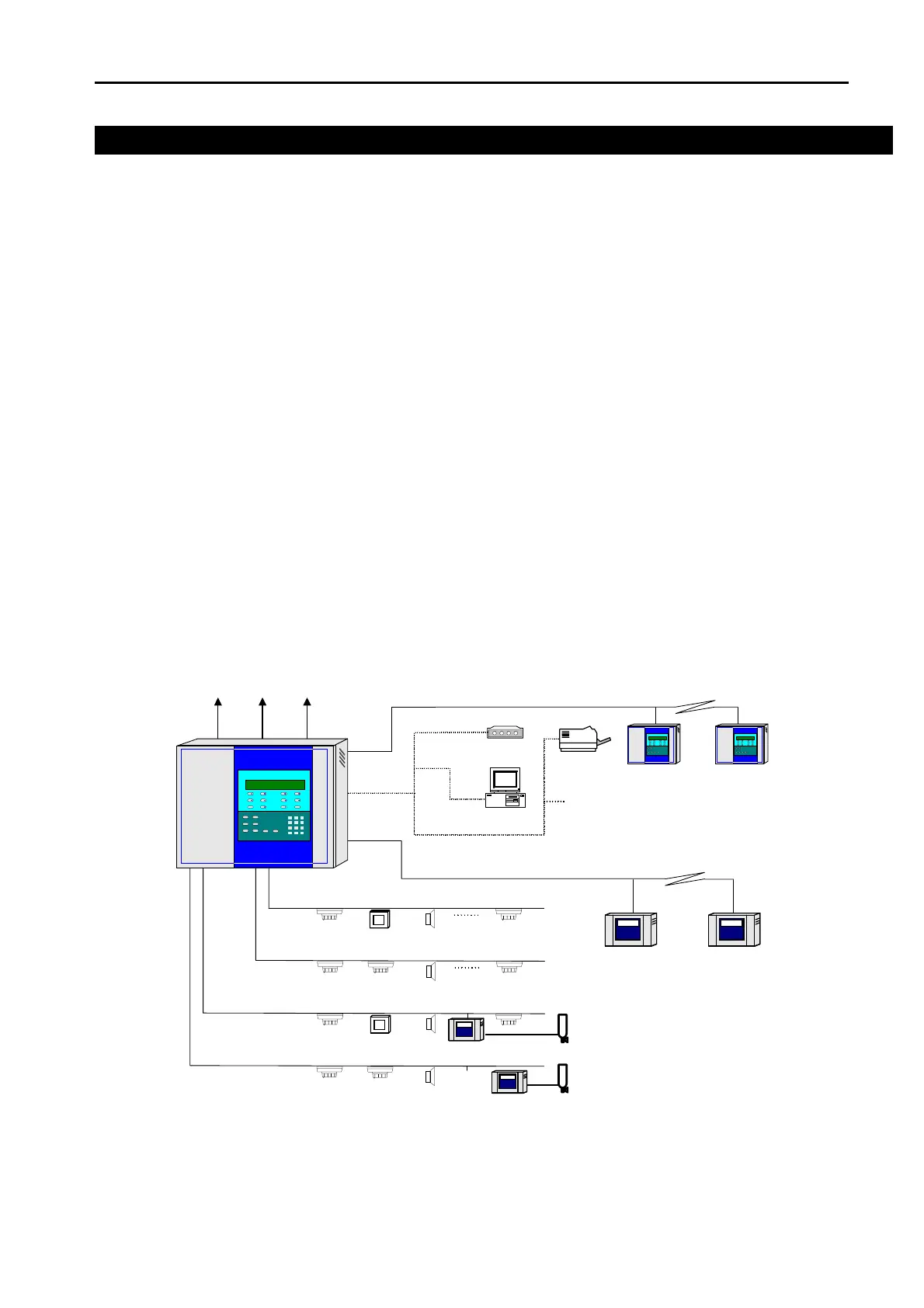

Figure 1 Typical ADR-3000 fire alarm system
