Telefire ADR-3000 - Figure 28 Multi-Amplifier System in a Multi-Storey Building

Telefire ADR-3000 – System Introduction
Revision 1.10 4 November 2004
ADR-3000
EVAX 25
ADR-3000
EVAX 25
EVAX 25 +
ADR-820 / 823
As many as 100
loudspeakers
As many as
20 units
EVAX 25 +
ADR-820 / 823
EVAX 25 +
ADR-820 / 823
As many as 100
loudspeakers
As many as 100
loudspeakers
As many as 100
loudspeakers

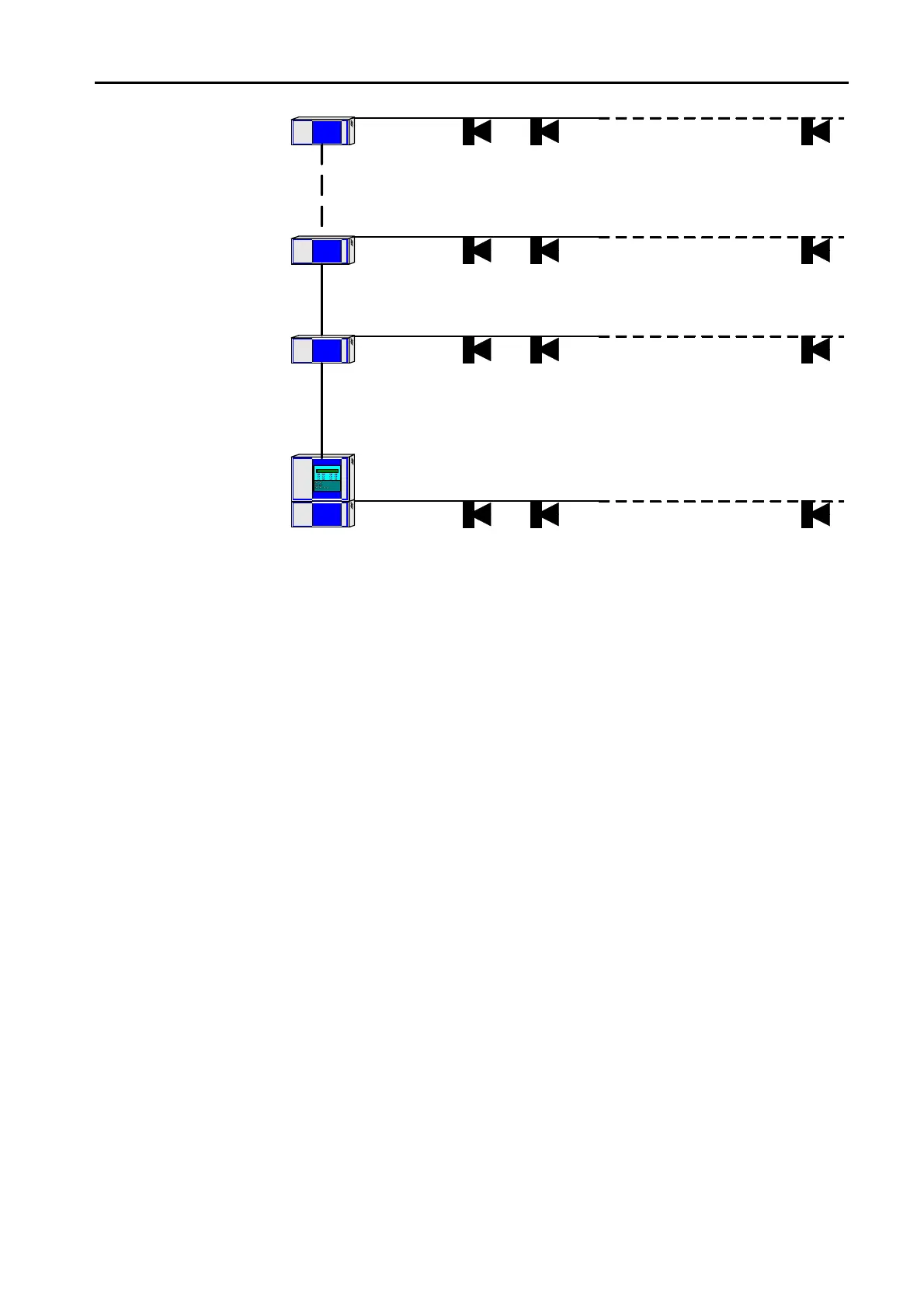

Figure 28 Multi-amplifier system in a multi-storey building
– Page 21 –
