Televes 5863 - 2.- REFERENCE DESCRIPTION

29
Frequency margin: 950 ... 2150 MHz Connector: “F”
Gain (950 MHz): 35 ± 2 dB Powering: 15 V
Gain (2150 MHz): 41 ± 3 dB Output level (2 tones -35 dB): > 123 dBµV
Adjustable margin: 20 dB Consumption at 15 V: 200 mA
1 . 2.- Technical specifications - IF amplifier ref. 5865
Amplifier
2.- REFERENCE DESCRIPTION
Ref. 5863 .... IF Processor simple (950 - 2150 MHz)
Ref. 5864 .... IF Processor triple (950 - 2150 MHz)
Ref. 5865 .... IF Amplifier (950 - 2150 MHz)
Ref. 5029 .... Power Supply (230 V ± 15 % - 50/60 Hz)
(24 V - 0,55 A)
(18 V - 0,8 A)
(15 V - 4,2 A)
(1)
(5 V - 6,6 A)
Ref. 7234 .... Universal programmer
Ref. 5071 .... Standard mounting rail (10 mod. + PSU.)
Ref. 5239 .... Wall mounting rail (12 mod. + PSU.)
Ref. 5255 .... T03/T05 power lead extender
Ref. 5074 .... Link “F” connector
Ref. 4061 .... 75 ohm adapter load “F”

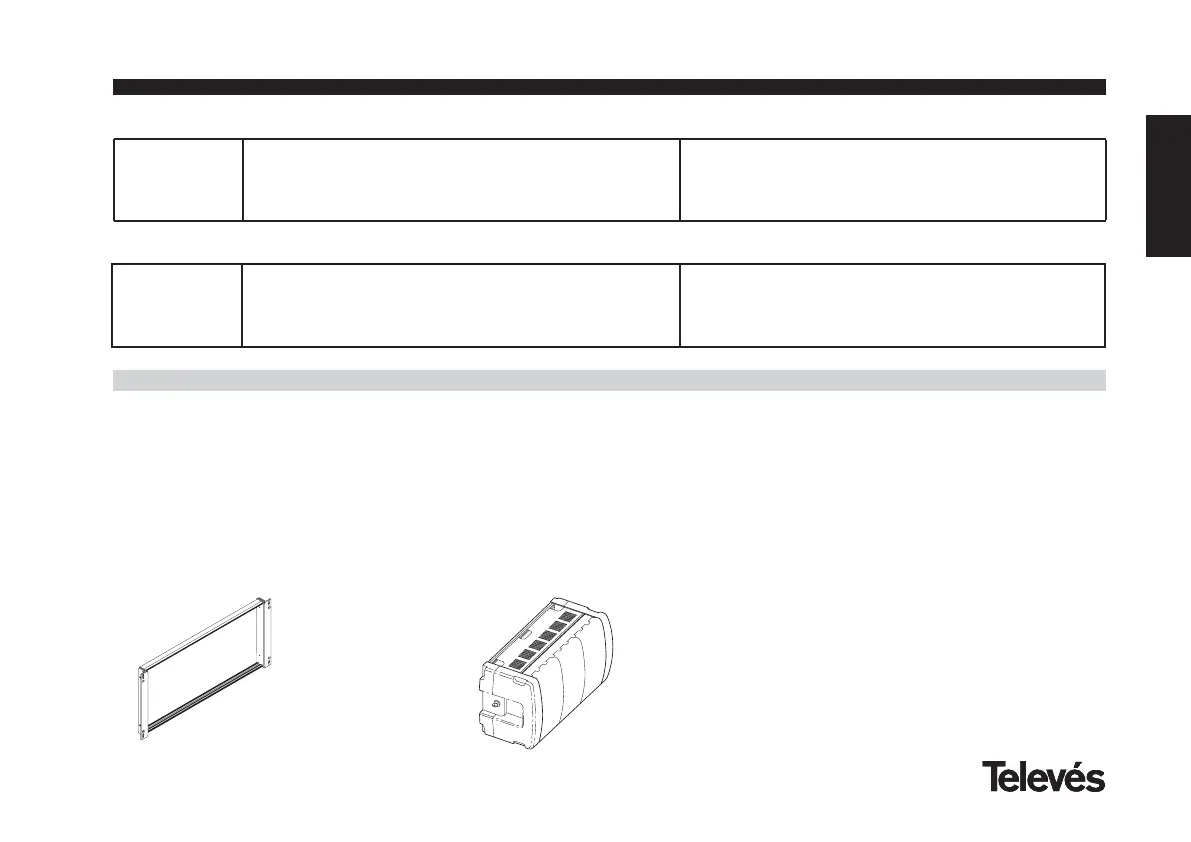

Ref. 5301 .... 19” Subrack
Ref. 5072 .... Lockable cabinet
Ref. 5301
Ref. 5072
24V (0,55 A)
Input level: 230 ± 15 % V~ Maximum current: 18V (0,8 A)
Output levels: 5V, 15V, 18V, 24V 15V (4,2 A)
(1)
5V (6,6 A)
1 . 3.- Technical specifications - Power Supply ref. 5029
Power Supply
(1)
If using 24V and/or 18V, you need to take the power consumed by
these away from the 15V power.
