Televes TDT+ - Power Supply Unit

10
User manual TDT +

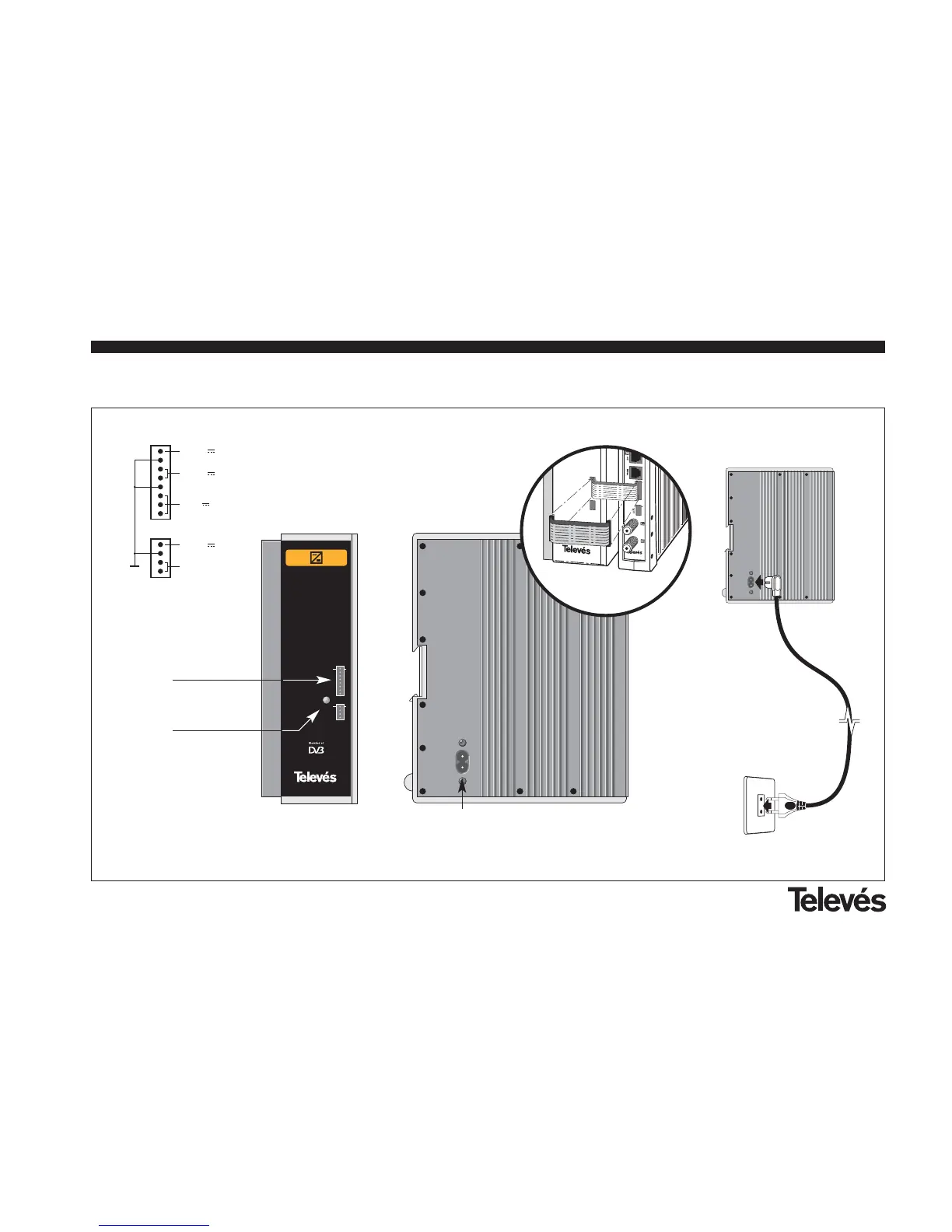

4.2.- Power supply unit
PWRPWR
LED on
Mains input
220V~ 15%~ (ref. 5025)
230V~ 15%~ (ref. 5029)
120V~ 15%~ (ref. 5030)
Connectors
to power the
modules (1))
PWR
PWR
+ 18V
+ 15V
+ 5V
+ 24V
GND
N/C
(1)
* The power supply unit can power a
maximum of 7
TDT+ modules.
(1)
