TG-7 Cellular Series Installation & Operating Guide 26 56053501 Rev A © 2022 Telguard
Installation of AC Adapter
The plug-in AC Adapter, when used, must be installed in a protected metal housing. It is important to
use only the adapter (sometimes referred to as a transformer) that is supplied with the communicator.
Wiring from the adapter to the communicator must run through metal conduit. The adapter itself is
plugged into a conventional 120-volt/60 Hz outlet connected to a dedicated circuit for the security
system.

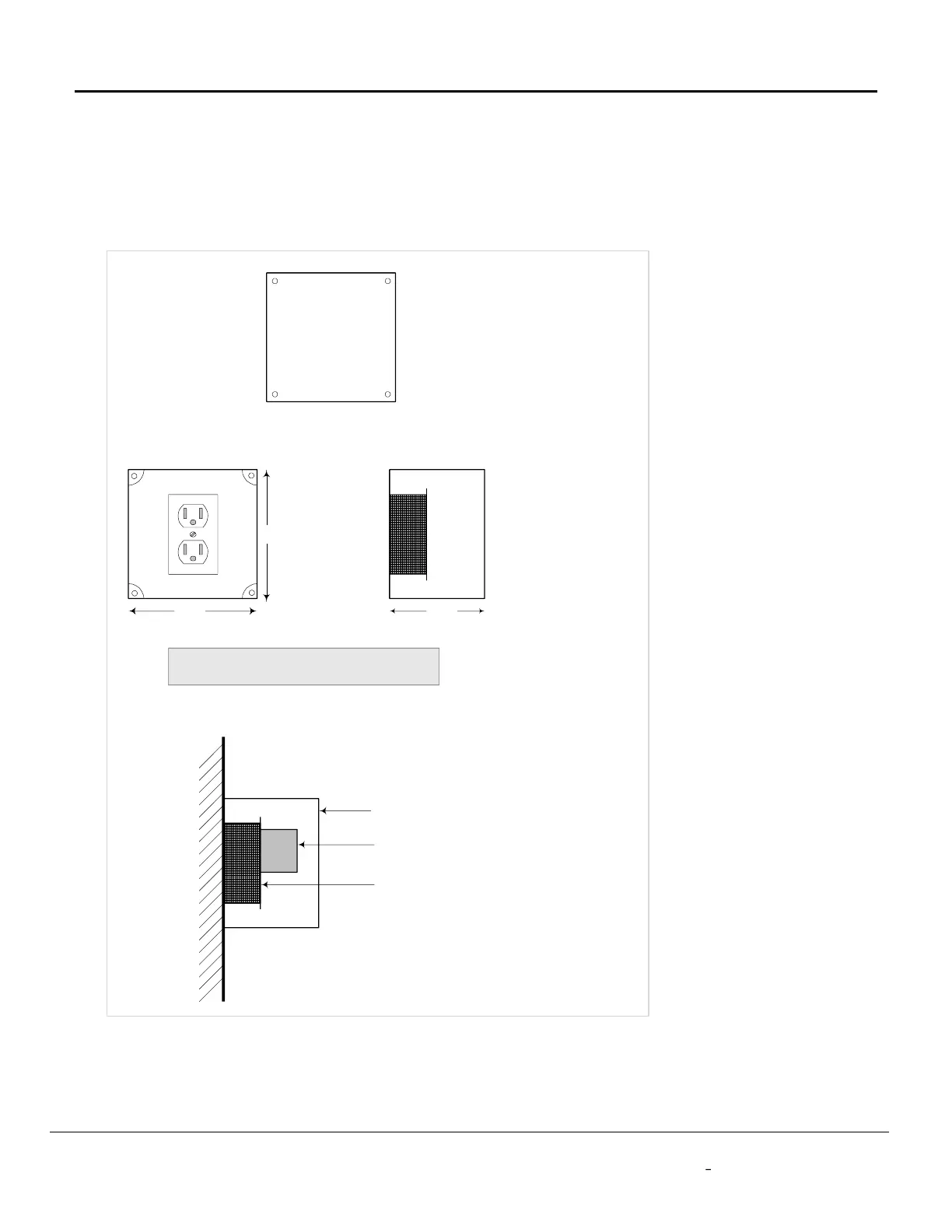

The diagram below should be consulted as a reference.
COVER
FRONT VIEW SIDE VIEW
6 IN.8 IN.
8 IN.
LISTED PULL BOX WITH LISTED
OUTLET BOX AND RECEPTACLE
WALL
LISTED PULL BOX
LISTED TRANSFORMER
LISTED OUTLET BOX AND RECEPTACLE
ULTPDE.VSD
