Tamper Switch Installation for UL/ULC Commercial Burglary
For all UL/ULC Commercial Burglary Installations, a Tamper switch must be wired to monitor the
TG-7FP enclosure. The wiring from Tamper Switch to the panel shall be in a rigid or flexible metal
conduit along with other wiring from the TG-7FP to the Panel.

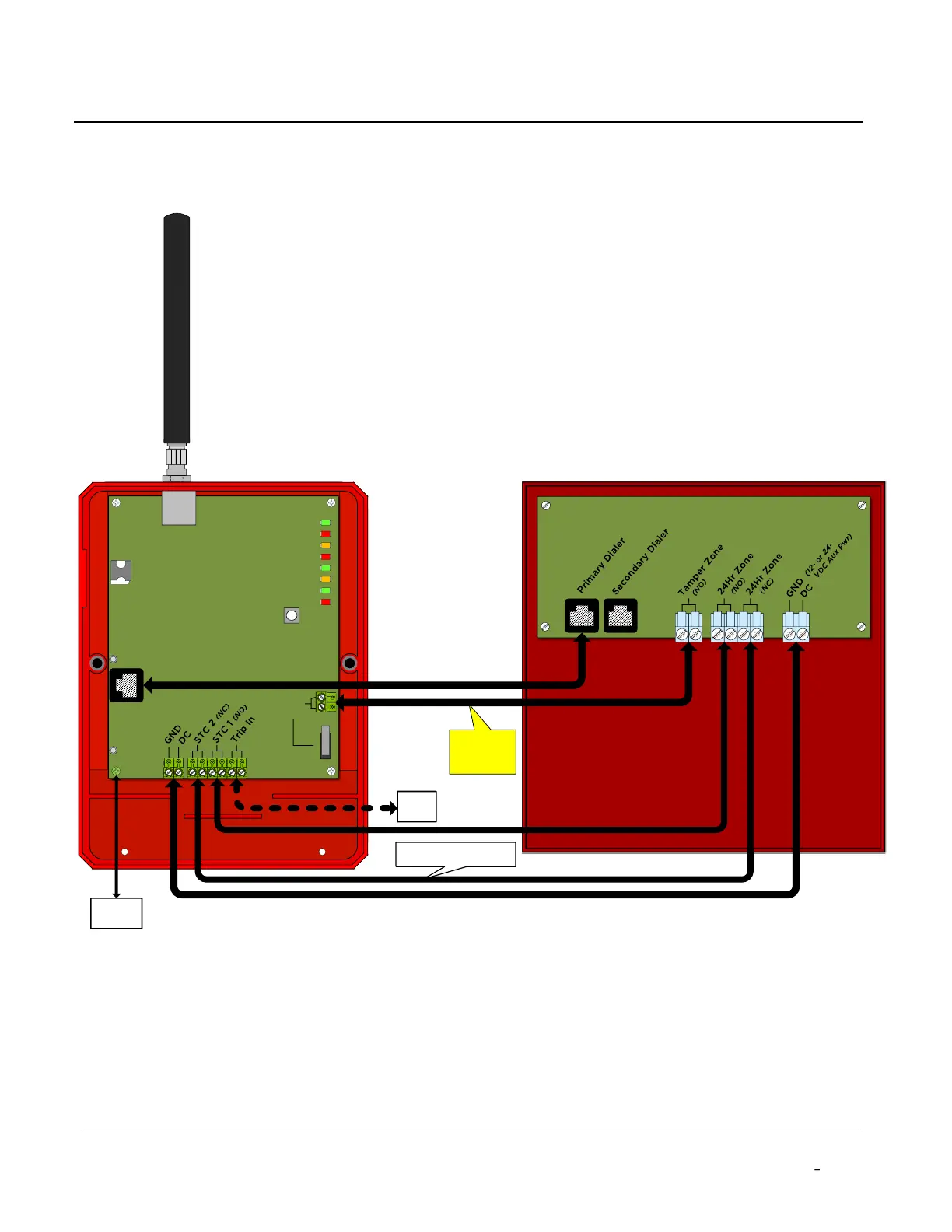

TG-7FP
LED 1
LED 2
LED 3
LED 4
LED 5
LED 6
LED 7
LED 8
ALARM PANEL
TRIP
INPUT
EARTH
GROUND
SIM
LTE
ANTENNA
SEE NOTE
ABOVE
ULC BURG NOTE: Tamper switch
housed within the TG-7FP circuit
board to be connected to Alarm
Panel.
Tamper
Switch
STC2 NOT PERMITTED
IN UL FIRE SYSTEMS
To Next Page
