Telit Wireless Solutions LE910C series Hw Design Guide

LE910Cx mPCIe Hardware Design Guide
1VV0301510 Rev. 13 Page 46 of 73 2021-07-07
Not Subject to NDA

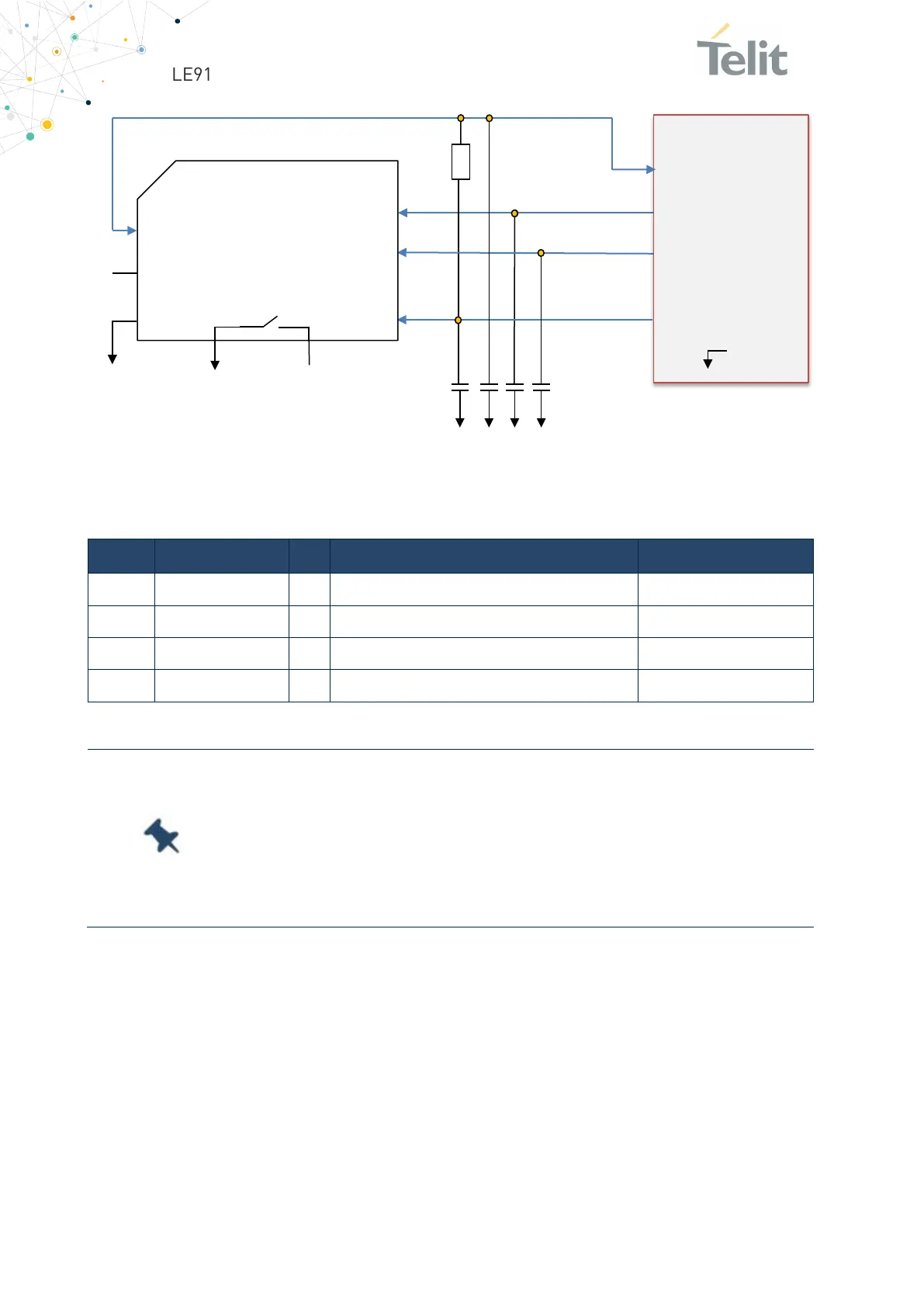

Figure 14: SIM Interface
Pin
Signal
I/O
Function
Type
8
SIMVCC
O
External SIM signal – Power supply for the SIM
1.8 / 3V
10
SIMIO
I/O
External SIM signal - Data I/O
1.8 / 3V
12
SIMCLK
O
External SIM signal – Clock
1.8 / 3V
14
SIMRST
O
External SIM signal – Reset
1.8 / 3V
Table 22: External SIM Signals
Note
: The resistor value on SIMIO pulled up to SIMVCC should be
defined accordingly in order to be compliant with 3GPP specification.
LE910Cx-mPCIe contains an internal pull-up resistor on SIMIO.
However, the un-mounted option in the application design can be
recommended in order to tune R1 if necessary.
C1
Not mounted
R1
14
12
SIMCLK
SIMRST
SIMVCC
LE910Cx-mPCIe
SIMIN
8
7
SIMIN
1
2
3
4
5
8
SIMIO
6
External SIM card
8.2K
GND
GND
GND
10
C2
C3
C4
100nF
33pF
33pF
33pF
