Page 15

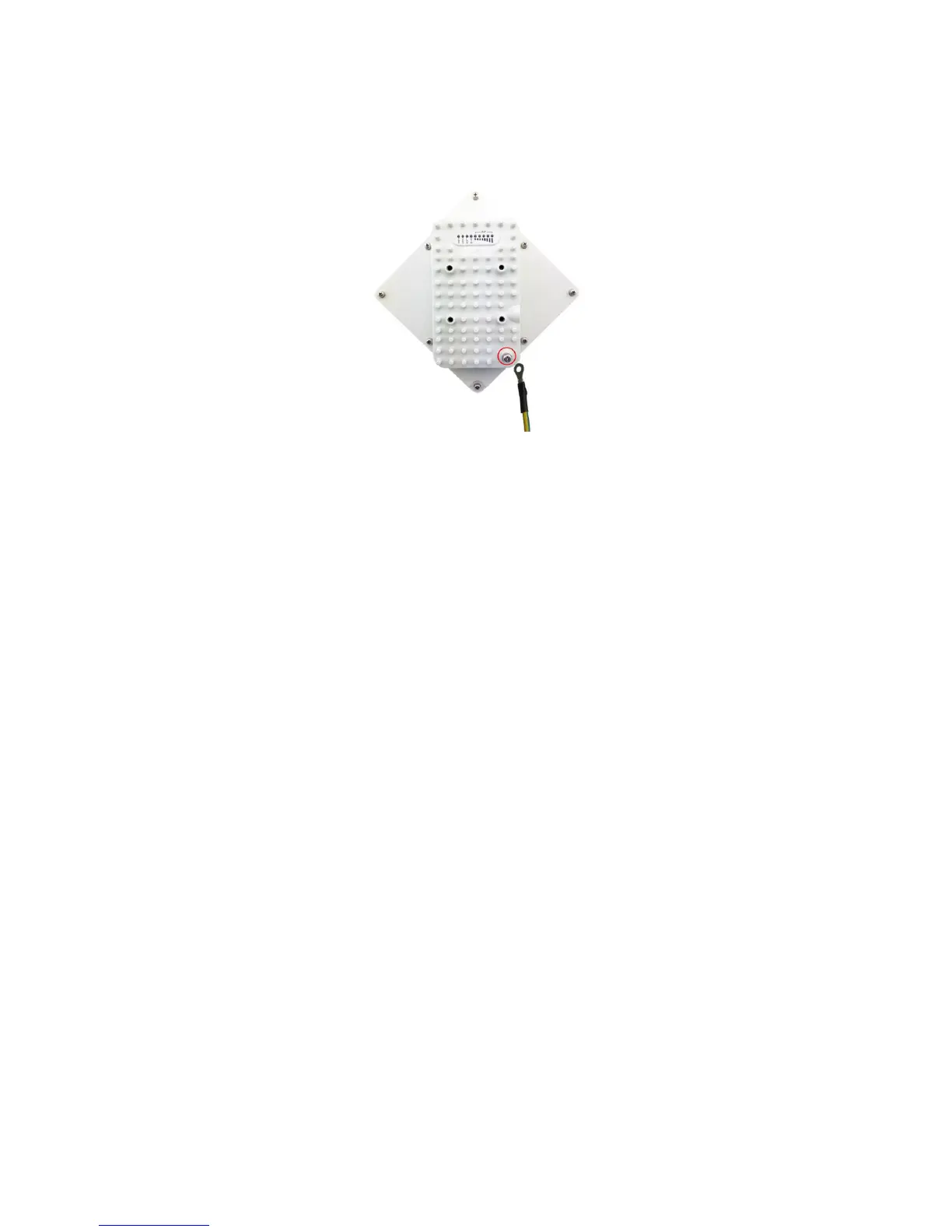

The Grounding screw is located on the lower part at the back of the unit (see Figure below).
Use 10 AWG cable for grounding.
Connect one of a grounding cable to the grounding screw and firmly tighten the grounding
screw. Connect the opposite end of the grounding cable to a good ground(earth) connection.
