Teltonika FMB202 - Pinout

Quick Manual v1.5 // FMB202
4
PIN NAME DESCRIPTION
VCC (6-30)V Power supply (6-30) V DC (+).
GND (-) Ground pin. (6-30) V DC (-)
DIN 1 Digital input, channel 1.
DIN 2 Digital input, channel 2.
DIN 3 Digital input, channel 3.
AIN 1
Analog input, channel 1. Input
range: 0-30 V DC.
DOUT 1
Digital output, channel 1. Open
collector output. Max. 3,3 A DC..
DOUT 2
Digital output, channel 2. Open
collector output. Max. 3,3 A DC.
1WIRE DATA Data for 1–Wire devices.
1WIRE POWER +3,8 V output for 1–Wire devices.

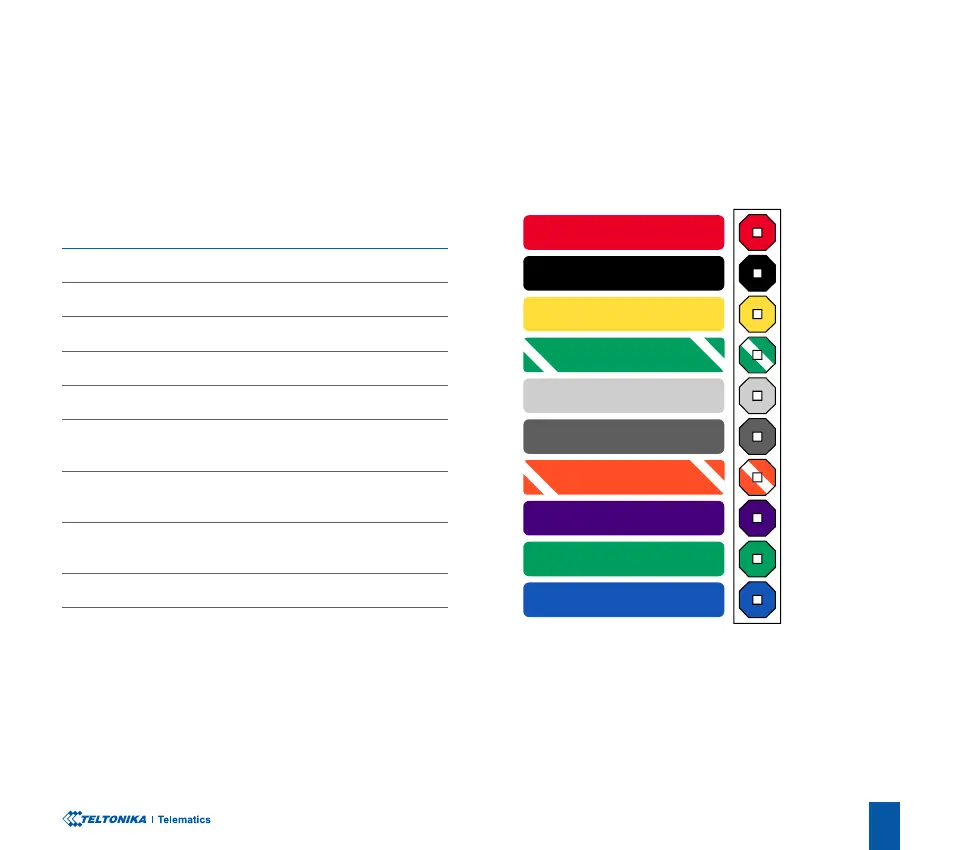

PINOUT
+6...30 V DC
GND
DIN3
AIN1
DIN1
1WIRE DATA
1WIRE POWER
DOUT2
DIN2
GND
+6...30 V DC
DOUT1
FMB202 wires
