Temcoline T30 SERIES - Dimensions and Panel Cutouts; T32 (48 x96 mm) Dimensions; T33 (96 x48 mm) Dimensions; T34 (48 x48 mm) Dimensions

www.temcoline.com
DIGITAL PID CONTROLLER

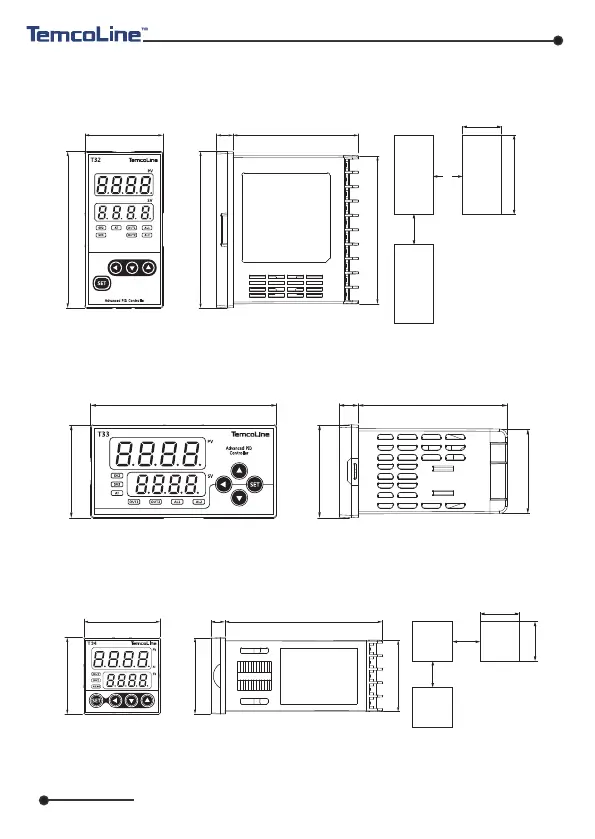

3. Dimensions and Panel cutouts
1) T32 (48x96 mm) Dimensions
2) T33 (96x48 mm) Dimensions
3) T34 (48x48 mm) Dimensions
9
T32 / T33 (96x48)
Panel cutouts
(Unit: mm)
(Unit: mm)
45
±0.5
92
±0.5
Min. 30
Min. 20
T34 (48x48) Panel cutouts
Min.17
Min.17
45
+0.5
-0
45
+0.5 -0
48.0
96.0
10.0 77.0
96.0
91.0
96.0
48.0
48.0
43.6
10.0
77.0
99.0
8.8
48.0
44.9
48.0
48.0
