DIGITAL PID CONTROLLER
6) Installation
(1) T54-SERIES
(2) T52/ T53/ T57/ T59-SERIES
① Bore a hole in the panel, referring to the panel cutouts on the previous page.
② Insert this device into the front of the panel.
③ Insert 2 brackets, one each on the bracket holes on the top and the bottom
of the device.
④ Secure using screws on the two locations at top and bottom.
13

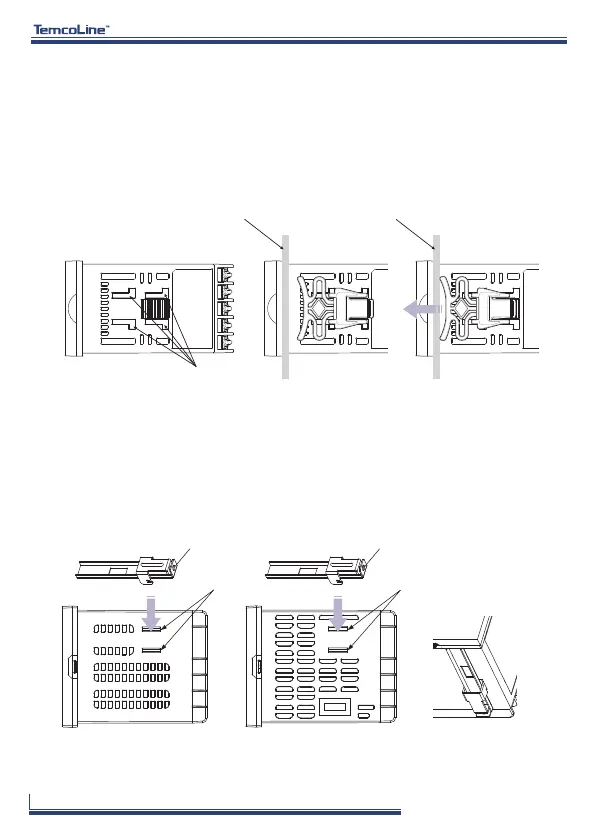

[ figure 1 ] Top side [ figure 2 ] Bottom side
[ figure 3 ] Fixing completion
Hole of fixing screwHole of fixing screw
Bracket hole
Bracket hole
Bracket hole
Turn the screw
2-3 times after
contact with panel.
Panel Panel
① Process the mounting hole referring to the panel machining dimensions of
the previous page on the panel.
② Insert this device from the front of the panel.
③ After inserting the two brackets into the holes of the left and right brackets
of the device, Slide it until it fits tightly to the panel and secure it.
To Next Page
