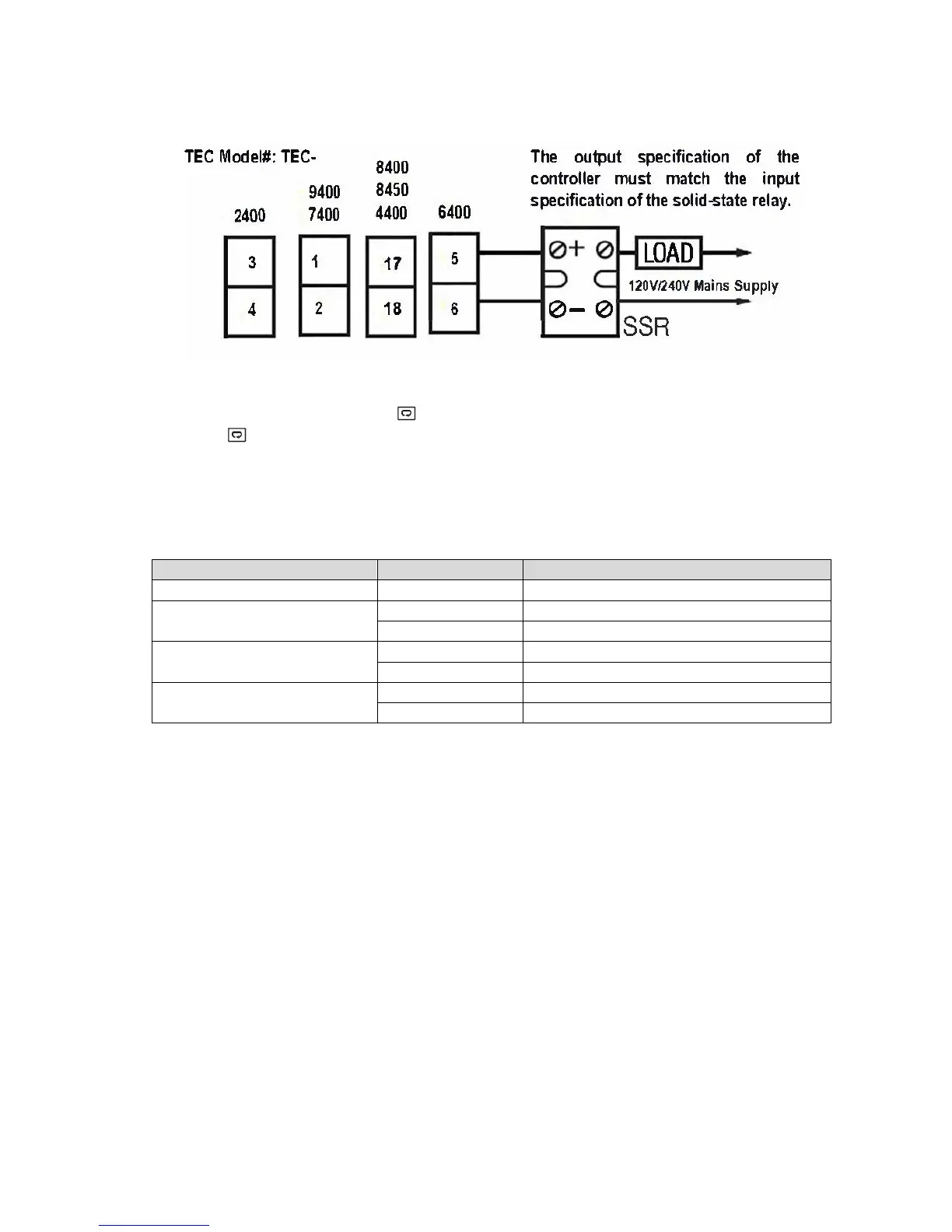

2.5 Wiring Example: Solid State Relay
3 Programming
Press and hold the key for 5 seconds, then release to enter the setup menu. Press and
release the key to select the desired parameter. The upper display indicates the parameter symbol, and
the lower display indicates the value of the selected parameter.
3.1 User Security
There are two parameters, PASS (password) and CODE (security code), which will control
the security function.
CODE Value
PASS Value
Access Rights
0
Any Value
All parameters are changeable
1000
=1000
All parameters are changeable
≠1000
Only user menu parameters changeable
9999
=9999
All parameters are changeable
≠9999
Only SP1 to SP7 are changeable
Others
=CODE
All parameters are changeable
≠CODE
No parameters can be changed
3.2 Signal Input
INPT: Select the sensor or signal type for the desited signal input
Range: (Thermocouple) J_TC, K_TC, T_TC, E_TC, B_TC, R_TC, S_TC, N_TC, L_TC
(RTD) PT.DN, PT.JS
(Linear) 4-20, 0-20, 0-60, 0-1V, 0-5V, 1-5V, 0-10
UNIT: Select the process unit
Range: °C, °F, PU (Process unit). If the unit is neither °C nor °F, select PU.
DP: Select the resolution of process value.
Range: For Thermocouple and RTD Signal NO.DP, 1-DP and For Linear Signal NO.DP, 1- DP, 2-DP,
3-DP
INLO: Select the low scale value if using a linear input.
INHI: Select the high scale value if using a linear input.
How to use INLO and INHI:
If 4-20mA is selected for INPT, let SL represent the low scale of the input signal (i.e. 4 mA),
let SH represent the high scale of the input signal (i.e. 20 mA). S represents the current input signal value;
the conversion curve of the process value is shown on the following page:
