Cyclone User Manual 40
Remote Monitoring Connections
Tempest enclosures optionally support two types of remote
monitoring:
1. Tempest System Manager (TSM) – a dedicated
network manager, with monitoring, system
configuration and firmware upgrade capability over
Ethernet.
Requires 51.D4.23 EtherNode board in at least one
enclosure
2. Tempest Enclosure Management Protocol (TEMP) – a
simple protocol for use by system integrators wishing to
monitor Tempest enclosures from their own show control
network.
Requires 51.D4.15 Ethernet board in at least one
enclosure

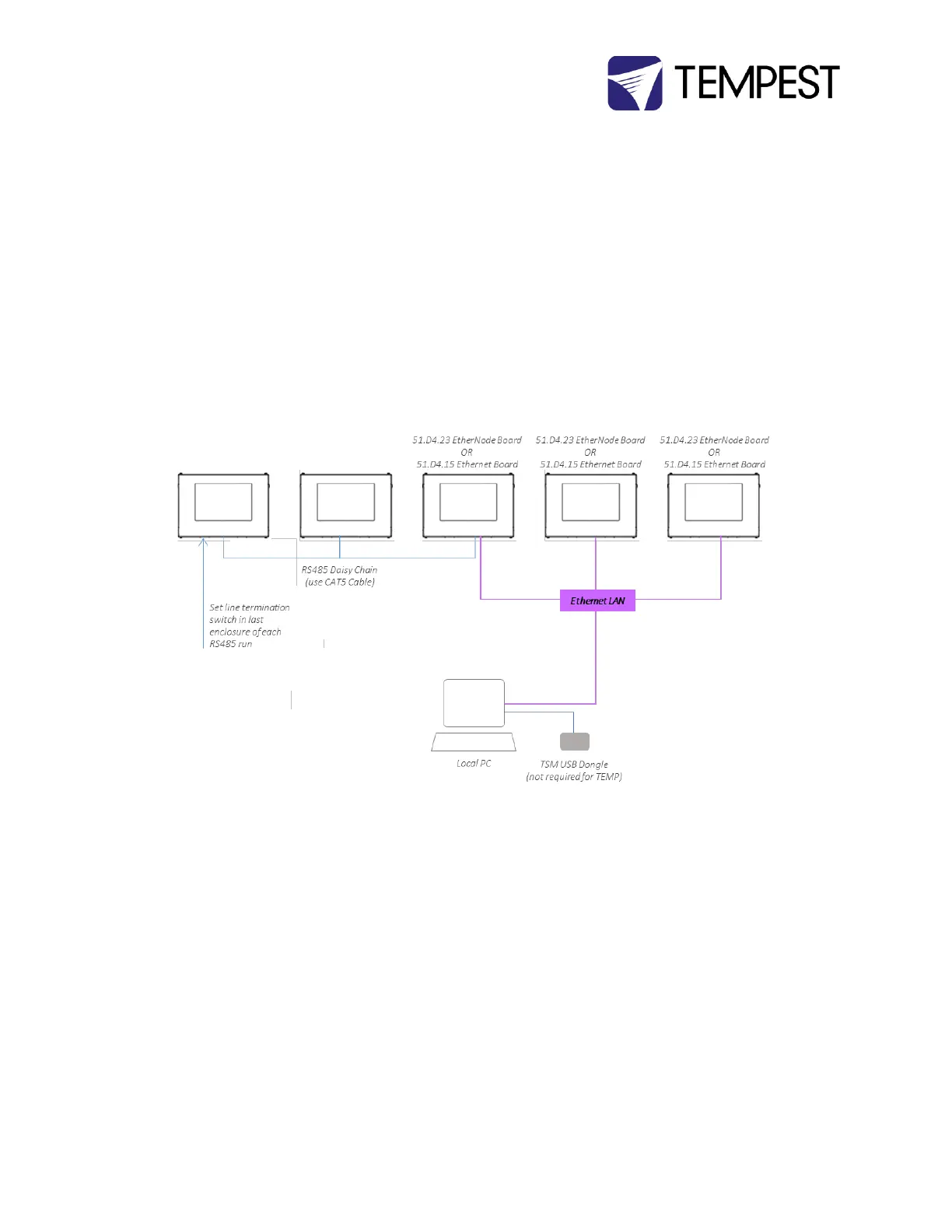

The system topology is the same for both methods:
