Tempest Cyclone 55.210L - Installation; Dimensions, Weights & Rigging Points

Cyclone User Manual 9
Installation
Dimensions, Weights & Rigging Points

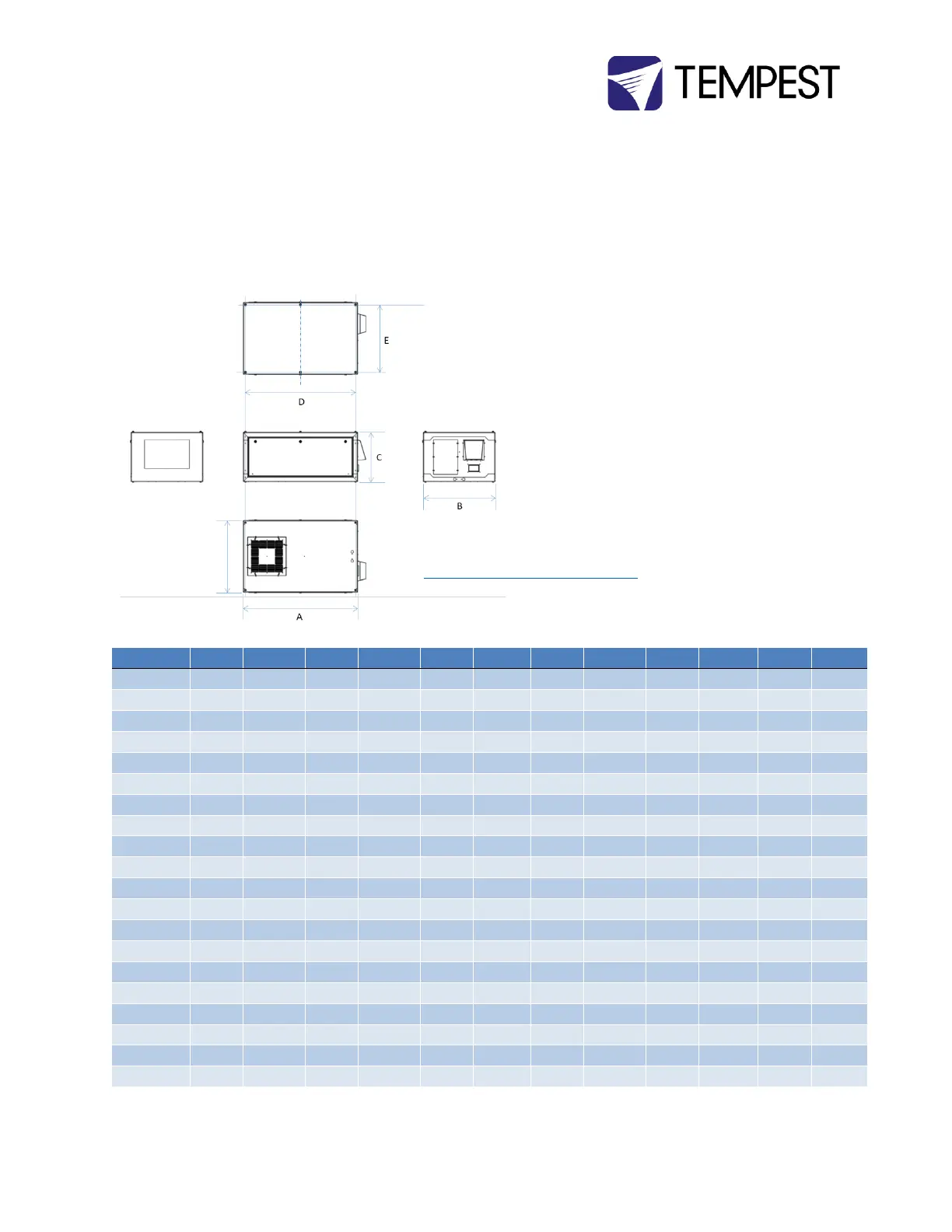

We are adding models all the time – check our web site for submittal drawings or consult factory for models not shown here
Cyclone
A in
A mm
B in
B mm
C in
Cmm
D in
D mm
E in
E mm
W lb
W kg
55.210L
51
1,295
32
813
22
559
49
1,245
30
762
177
80
55.210P
51
1,295
25
635
34
864
49
1,245
23
584
213
97
55.240L
53
1,346
34
864
26
660
51
1,295
32
813
230
105
55.240P
53
1,346
25
635
34
864
51
1,295
23
584
222
101
55.250L
51
1,295
37
940
24
610
49
1,245
35
889
223
101
55.250P
51
1,295
25
635
41
1,041
49
1,245
23
584
257
117
55.305L
51
1,295
34
864
24
610
49
1,245
32
813
205
93
55.305P
51
1,295
25
635
36
914
49
1,245
23
584
226
103
55.310L
59
1,499
34
864
25
635
57
1,448
32
813
247
112
55.310P
59
1,499
25
635
36
914
57
1,448
23
584
261
119
55.314L
58
1,473
37
940
27
686
56
1,422
35
889
285
130
55.314P
58
1,473
25
635
40
1,016
56
1,422
23
584
271
123
55.320L
67
1,702
37
940
25
635
65
1,651
35
889
305
139
55.320P
67
1,702
25
635
38
965
65
1,651
23
584
313
142
55.324LAC
58
1,473
37
940
34
864
56
1,422
35
889
359
163
55.324PAC
58
1,473
30
762
41
1,041
56
1,422
28
711
351
160
55.525L
67
1,702
37
940
29
737
65
1,651
35
889
354
161
55.525P
67
1,702
30
762
40
1,016
65
1,651
28
711
376
171
55.525LAC
67
1,702
37
940
33
838
65
1,651
35
889
402
183
55.525PAC
67
1,702
30
762
44
1,118
65
1,651
28
711
415
189
Rigging Points:
M12-1.75 (bolts
supplied), 6 points top, 4
points bottom surface
For more detail, download 2-D PDF or DWG
and 3-D STEP files at
https://www.tempest.biz/product/cyclone/
