Alternate Power Supplies
This furnace is designed to operate on a utility generated
power which has a smooth sinusoidal waveform. If the furnace
is to be operated on a generator or other alternate power
supply, the alternate power supply must produce a smooth
sinusoidal waveform for compatibility with furnace electronics.
The alternate power supply must generate the same voltage,
phase, and frequency (Hz) as shown in Table 9 or on the
furnace rating plate.
Power from an alternate power supply that non-sinusoidal may
damage the furnace or cause erratic furnace operation.
Contact the alternate power supply manufacturer for
specifications and details.
Table 9 Electrical Data − MODULATING (F/G)9MAC
UNIT SIZE
VOLTS-
HERTZ-
PHASE
OPERATING VOLTAGE
RANGE* MAXIMUM
UNIT
AMPS
UNIT
AMPACITY#
MINIMUM
WIRE SIZE
AWG
MAXIMUM
WIRE
LENGTH
FT (M)}
MAXIMUM
FUSE OR CKT
BKR
AMPS{
Maximum* Minimum*
60,000 115-60-1 127 104 9.7 12.7 14 29 (8.8) 15
80,000 115-60-1 127 104 9.7 12.7 14 29 (8.8) 15
100,000 115-60-1 127 104 14.8 19.1 12 30 (9.1) 20
120,000 115-60-1 127 104 14.8 19.1 12 30 (9.1) 20
* Permissible limits of the voltage range at which the unit operates satisfactorily.
# Unit ampacity = 125 percent of largest operating component’s full load amps plus 100 percent of all other potential operating components’ (EAC, humidifier, etc.) full load
amps.
 Time−delay type is recommended.
 Length shown is as measured one way along wire path between unit and service panel for maximum 2 percent voltage drop.

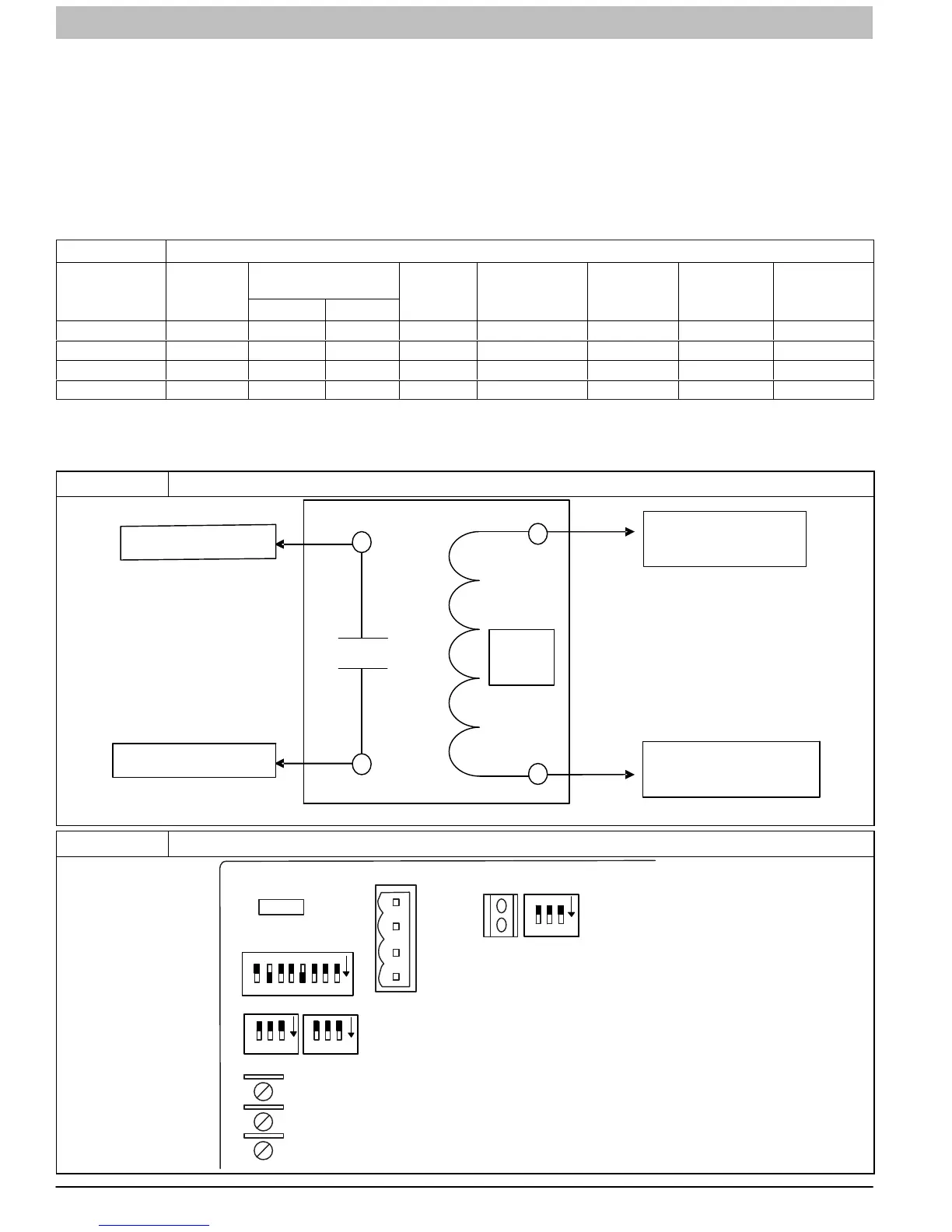

Figure 38 Isolation Relay for Humidifiers with Internal Power Supply
24 V
Coil
To Humidifier Leads
To Com/24V Screw Terminal
on Thermostat Strip
To HUM Terminal On
Furnace Control Board
To Humidifier Leads
A11157
Figure 39 Variable Speed Furnace Control − Switch Locations
OAT
PL9
A B C D
PL4
PL7
SW*
1
SW2 SW3
SW4
O
N
W2
Y1
DHUM
8 7 6 5 4 3 2 1
3 2 1
O
N
O
N
O
N
3 2 1
3 2 1
