Tenda AC7 User Manual

74
Configuring procedures:
Step 1 Start a web browser on a device connected to the router and visit tendawifi.com to log in
to the web UI of the router.

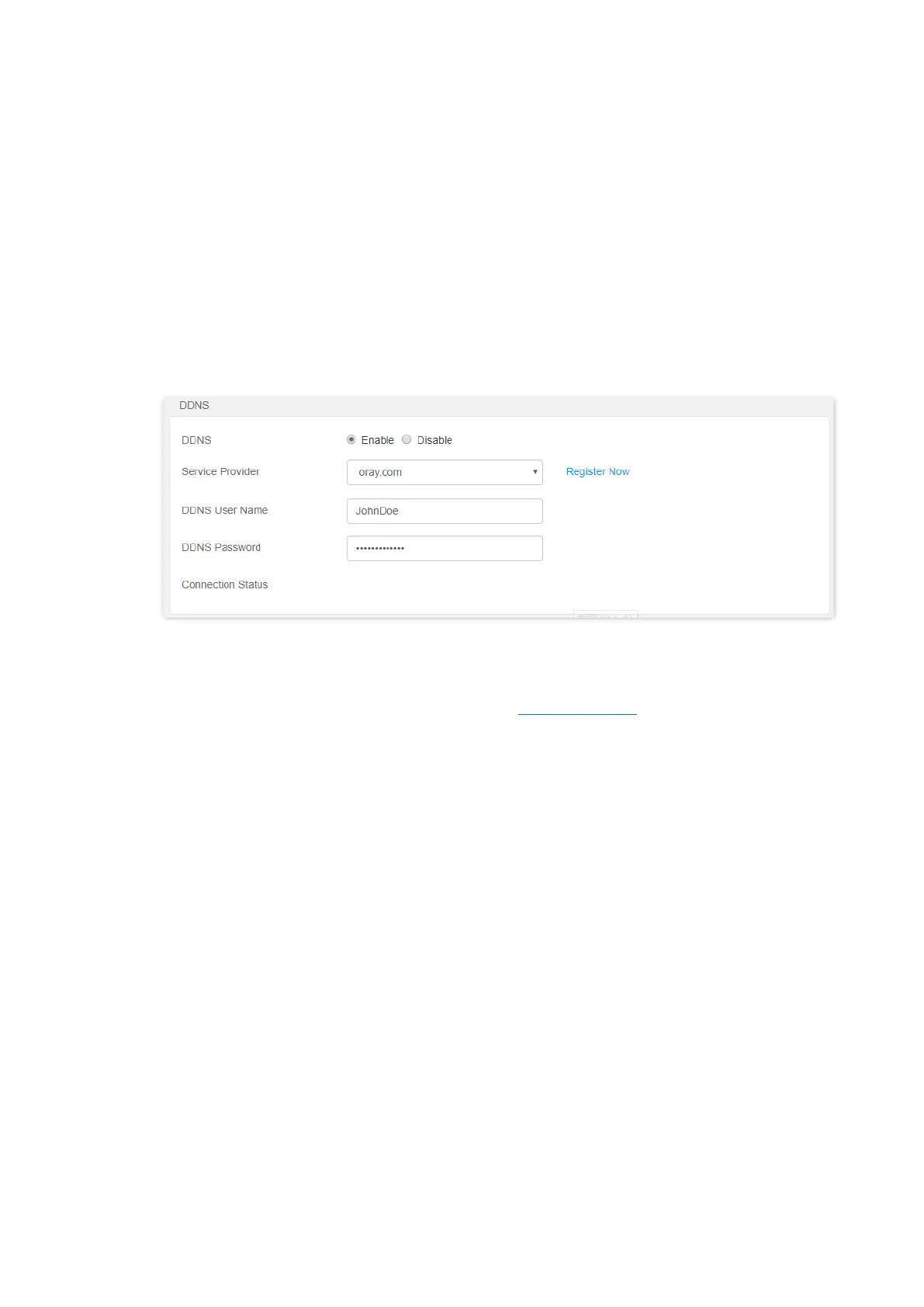

Step 2 Configure the DDNS function.
1. Choose Advanced > DDNS.
2. Set DDNS to Enable.
3. Choose a service provider, which is oray.com in this example.
4. Enter the user name and password, which are JohnDoe and JohnDoe123456 in this
example.
5. Click OK on the bottom of the page.
Wait a moment, when the Connection Status turns Connected, the configurations
succeed.
Step 3 Configure the port forwarding function (refer to Port forwarding).
---End
When completing the configurations, users from the internet can access the FTP server by visiting
“Intranet service application layer protocol name://the domain name”. If the external port number
is not the same as the default intranet service port number, the visiting address should be:
“Intranet service application layer protocol name://the domain name:external port number”.

Tenda AC7 Specifications

General

VPN support	IPsec pass through, PPTP pass through, L2TP pass through, PPTP server, PPTP client, L2TP client
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
USB port	No
Ethernet LAN (RJ-45) ports	4
Transmit power	30 dBmW
Antennas quantity	5
Antenna gain level (max)	6 dBi
Product type	Tabletop router
Product color	Black
LED indicators	LAN, System, WAN
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Package type	Box
Package weight	860 g
Number of products included	1 pc(s)
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Firewall security	Forbid UDP flood attack, Forbid TCP flood attack, Forbid flood attack, Forbid WAN PING from internet
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45)

Weight and Dimensions

Depth	141.5 mm
Width	220 mm
Height	49 mm
Weight	360 g
