Tenda D151 User Manual

Wireless Modem Router User Guide
- 16 -
_________________________________________________________________________________________________

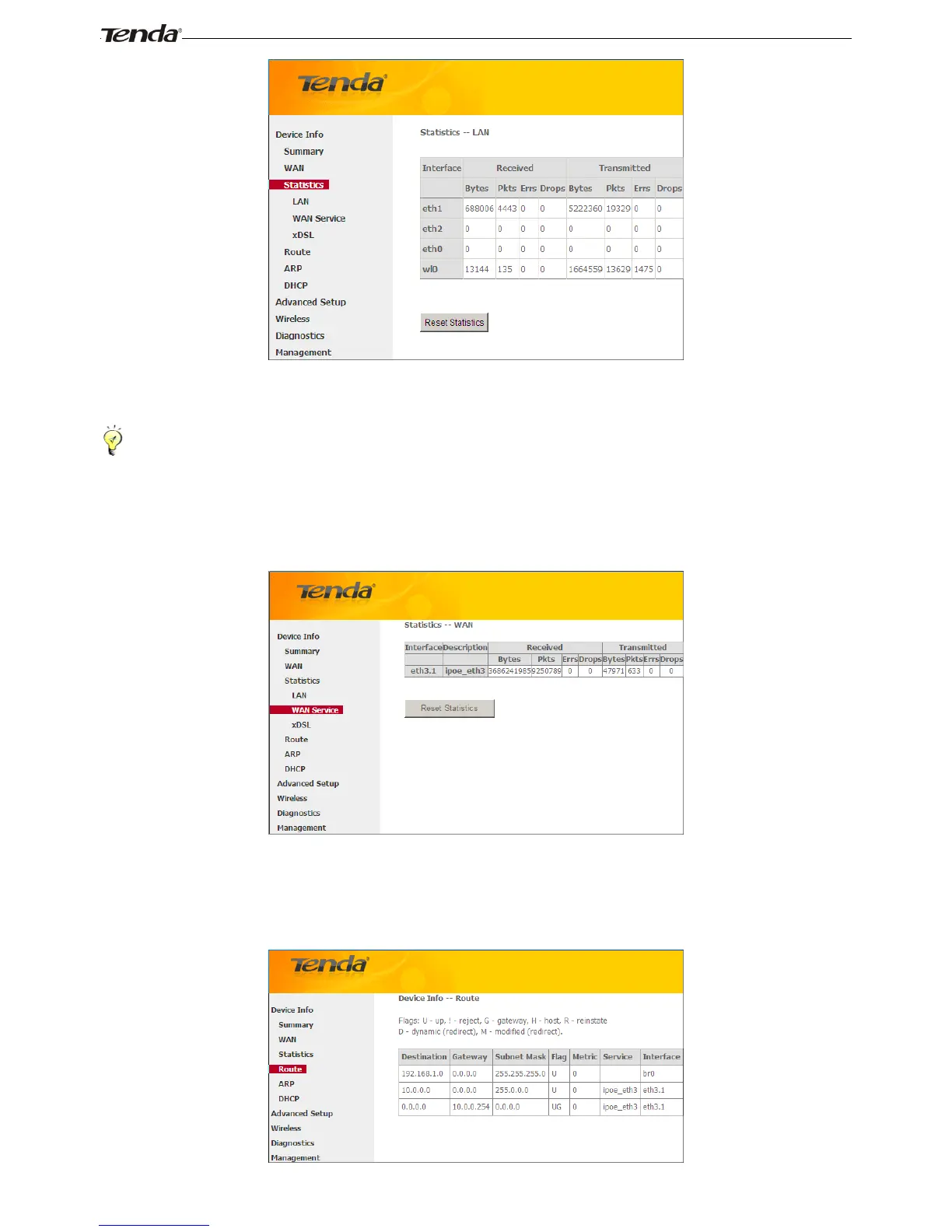

Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________
Statistics--WAN: Displays the packets received and transmitted on the WAN ports as seen in the screenshot below.
Route
Here you can view the route table as seen in the screenshot:

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
