Tenda D151 User Manual

Wireless Modem Router User Guide
- 54 -

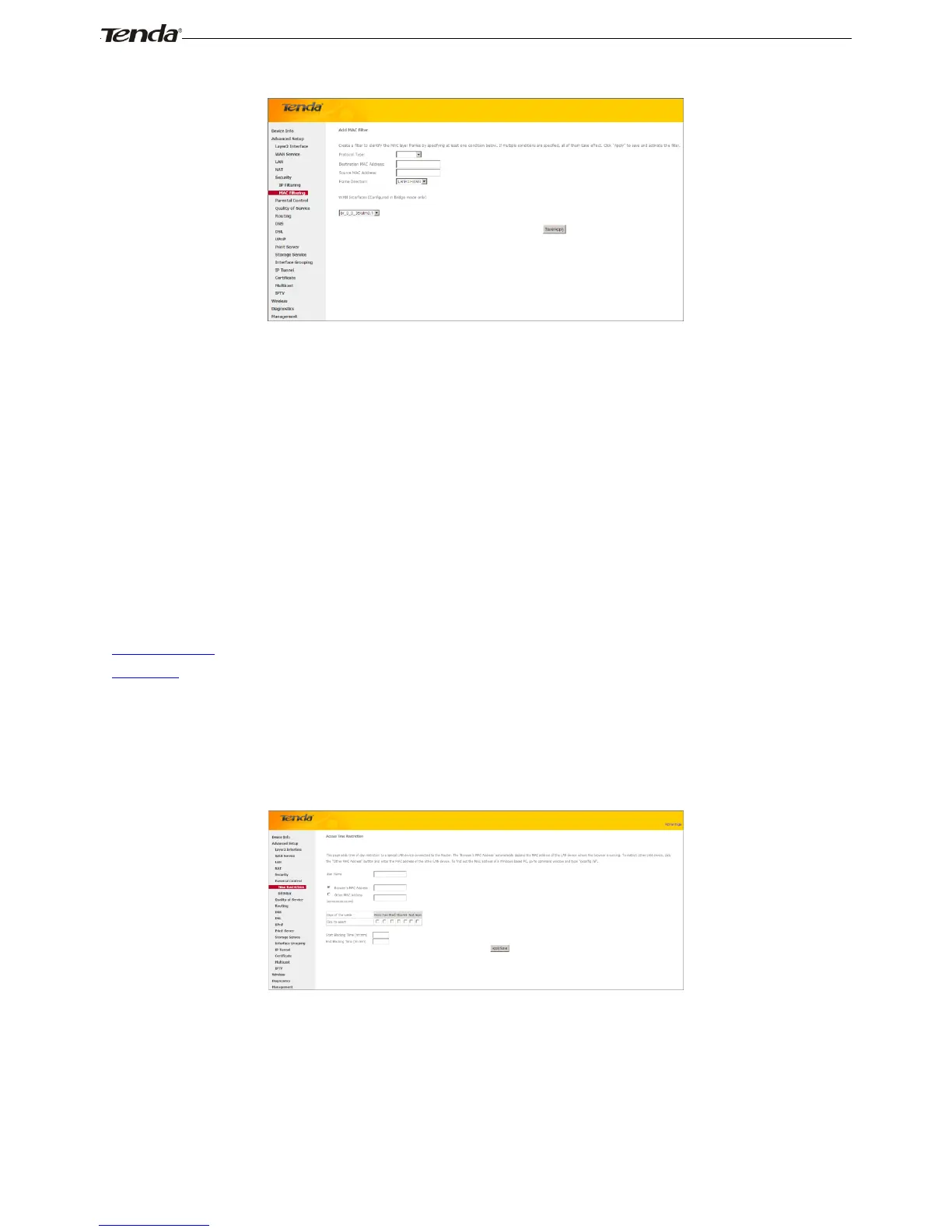

Click Add to enter the following screen:
Here you can create a filter to identify the MAC layer frames by specifying at least one condition below. If multiple
conditions are specified, all of them take effect. Click Save/Apply to save and activate the filter.
Protocol Type: Select a protocol type from the drop-down list.
Destination MAC Address: Enter the destination MAC address apply the MAC filtering rule to which you wish to
apply the MAC filtering rule.
Source MAC Address: Enter the source MAC address to which you wish to apply the MAC filtering rule.
Frame Direction: Select a frame direction from the drop-down list.
WAN Interfaces: Select a WAN interface from the drop-down list.
4.2.6 Parental Control
This section explains the following information:
• Time Restriction
• URL Filter
Time Restriction
Click Parental Control -> Time Restriction -> Add to enter the following screen.
Here you can add time of day restriction that an attached LAN device can access Internet.
The 'Browser's MAC Address' automatically displays the MAC address of the LAN device where the browser is running.
To restrict other LAN device, click the "Other MAC Address" button and enter the MAC address of the other LAN
device.
 User Name: Enter a user name.
 Browser's MAC Address: Automatically adds the MAC address of the attached LAN device where the browser is

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
