Tenda D151 User Manual

Wireless Modem Router User Guide
- 8 -
Chapter 2 Hardware Install
If you have not already set up your new router using the Quick Install Guide that comes in the box, this chapter walks
you through the hardware install. To set up your Internet connection, see Chapter 2 Quick Internet Setup.

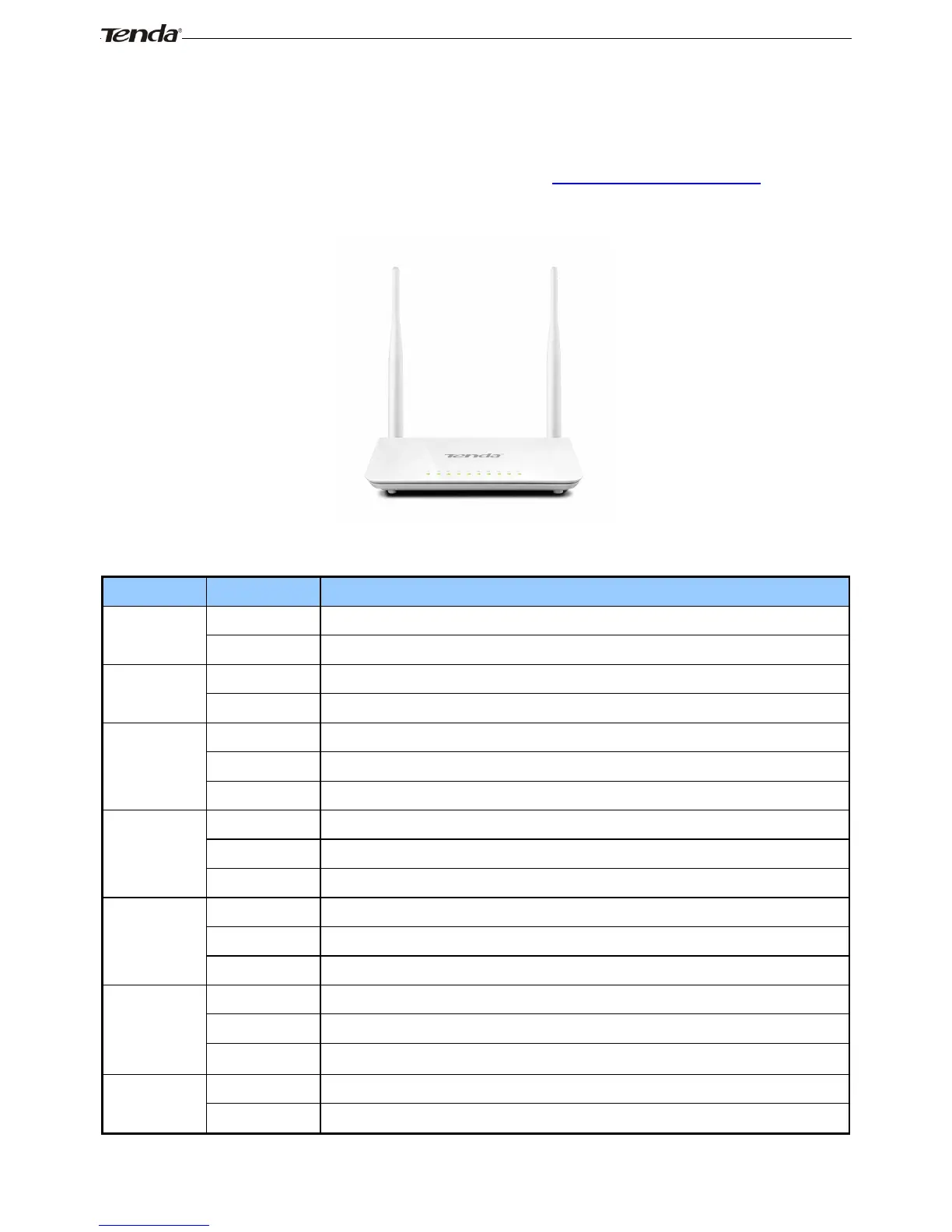

Front Panel
The LEDs on the device are described below:
LED
Status
Description
Power
Solid
Power is supplied to the device.
Off
Power is not supplied to the device.
SYS
Blinking
System is functioning correctly.
Solid/Off
System is functioning incorrectly.
WLAN
Blinking
Transferring data
Off
Wireless is disabled.
Solid
Wireless is enabled.
ADSL
Slow Blink
Physical connection failure.
Fast Blink
Synchronizing...
Solid
ADSL connection is established.
LAN 1/2/3/4
Off
No connection established.
Blinking
Transferring data
Solid
Connection is established.
WPS
Solid
Client connected successfully.
Blinking
The WPS LED starts blinking if you pressed the WPS button on the device or interface.
Off
If there is no wireless clients connected, the WPS LED turns off after blinking for 2 minutes.
USB （ available
only in D301）
Solid
Connection is successfully established on the USB port.
Off
Connection is not established on the USB port.

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
