Tenda D151 User Manual

Wireless Modem Router User Guide
- 71 -

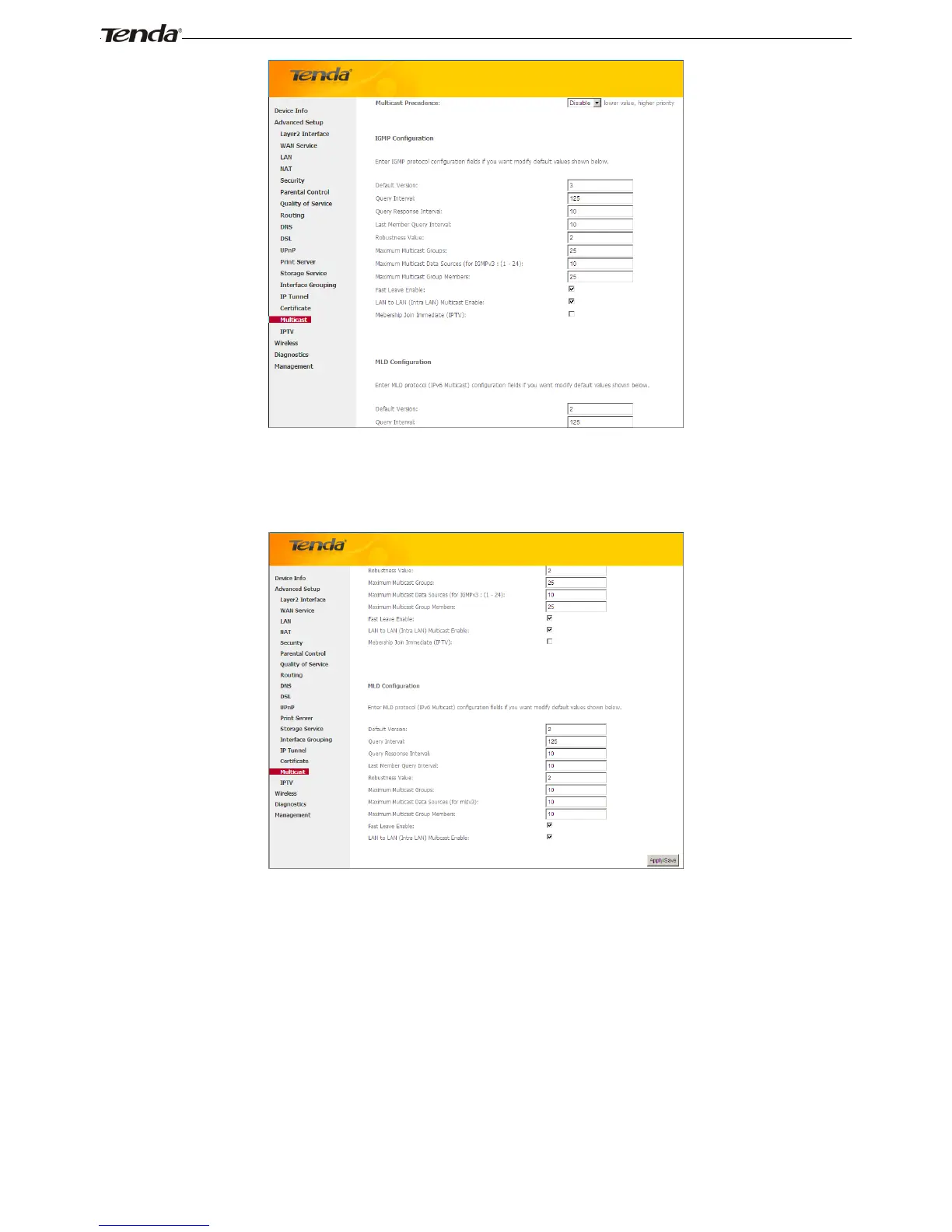

To configure IGMP for IPv6
1. Check the LAN to LAN (Intra LAN) Multicast Enable box.
2. Keep other options unchanged from factory defaults if you are not an advanced user. This is strongly recommended.
4.1.18 IPTV
If you check the Enable IPTV checkbox, you must choose a layer2 interface, and then configure the PVC/VLAN info
(ATM), or ETH port/VLAN info (ETH). Click Apply/Save button to save it.
Enable IPTV: Check/uncheck to enable/disable the IPTV service.

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
