Tenda D151 User Manual

Wireless Modem Router User Guide
- 31 -

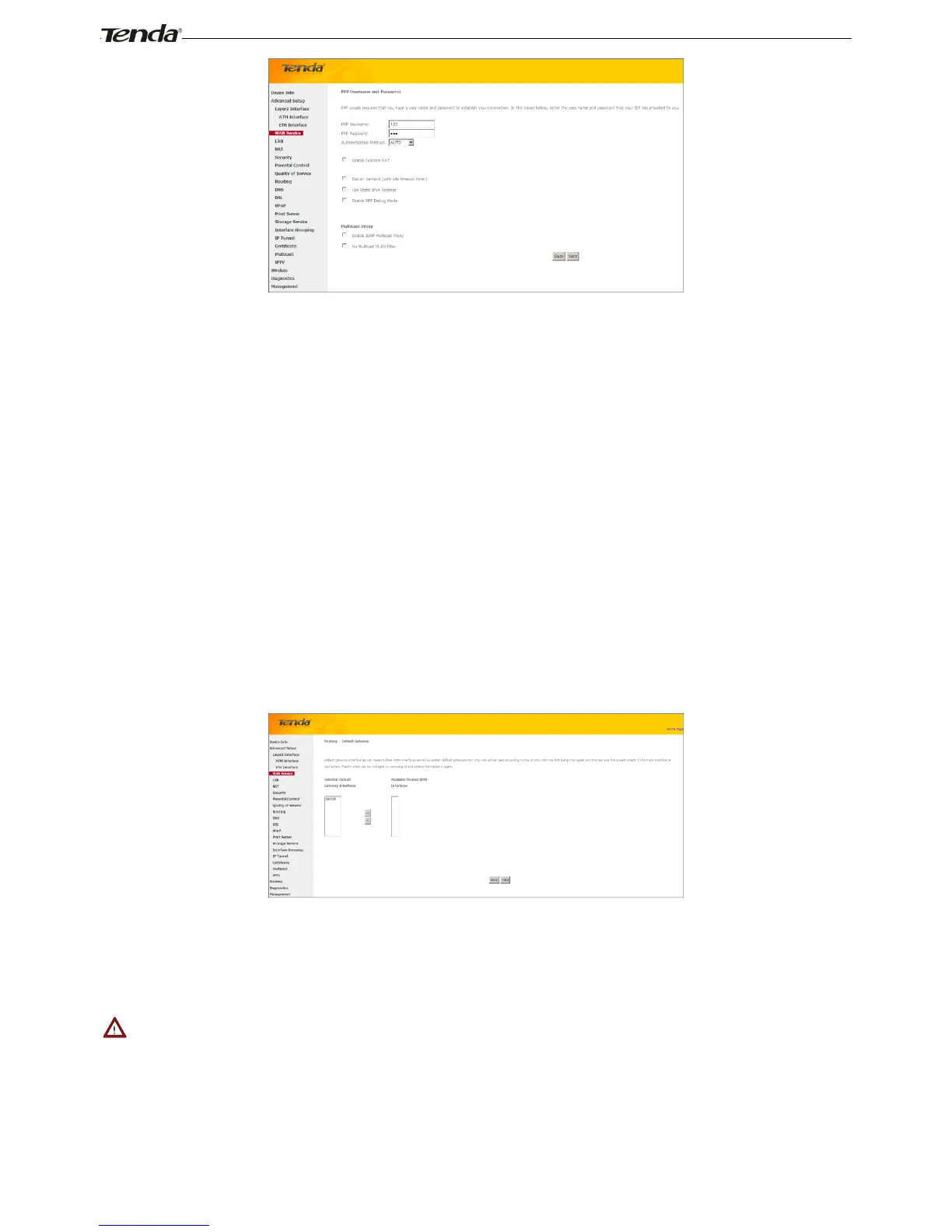

 PPP User Name: This is for logging in to your ISP. If you cannot locate this information, ask your ISP to provide
it.
 PPP Password: This is for logging in to your ISP. If you cannot locate this information, ask your ISP to provide it.
 Authentication Method: This is used by ISP to authenticate the client that attempts to connect. If you are not sure,
consult your ISP or select Auto.
 Dial on demand: Connect to ISP only when there is traffic transmission. This saves your broadband Internet
service bill.
 Enable PPP Debug Mode: Only enable this feature if supported by your ISP.
 Bridge PPPoE Frames Between WAN and Local Ports: If enabled, PPPoE dialup frame from LAN side will
directly egress the WAN port without modification.
 Multicast Proxy: If enabled, the router will use multicast proxy.
If you are not sure about the options on this screen, simply enter your ISP user name and password and leave the other
options unchanged from defaults. Click Next to enter the following screen.
WAN gateway
Here you can configure the WAN gateway address. After you configure it click Next. The default setting is
recommended.
_________________________________________________________________________________________________
Note:
Default gateway interface list can have multiple WAN interfaces served as system default gateways but only one will be
used according to the priority with the first being the higest and the last one the lowest priority if the WAN interface is
connected. Priority order can be changed by removing all and adding them back in again.
_________________________________________________________________________________________________

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
