Tenda D151 User Manual

Wireless Modem Router User Guide
- 35 -

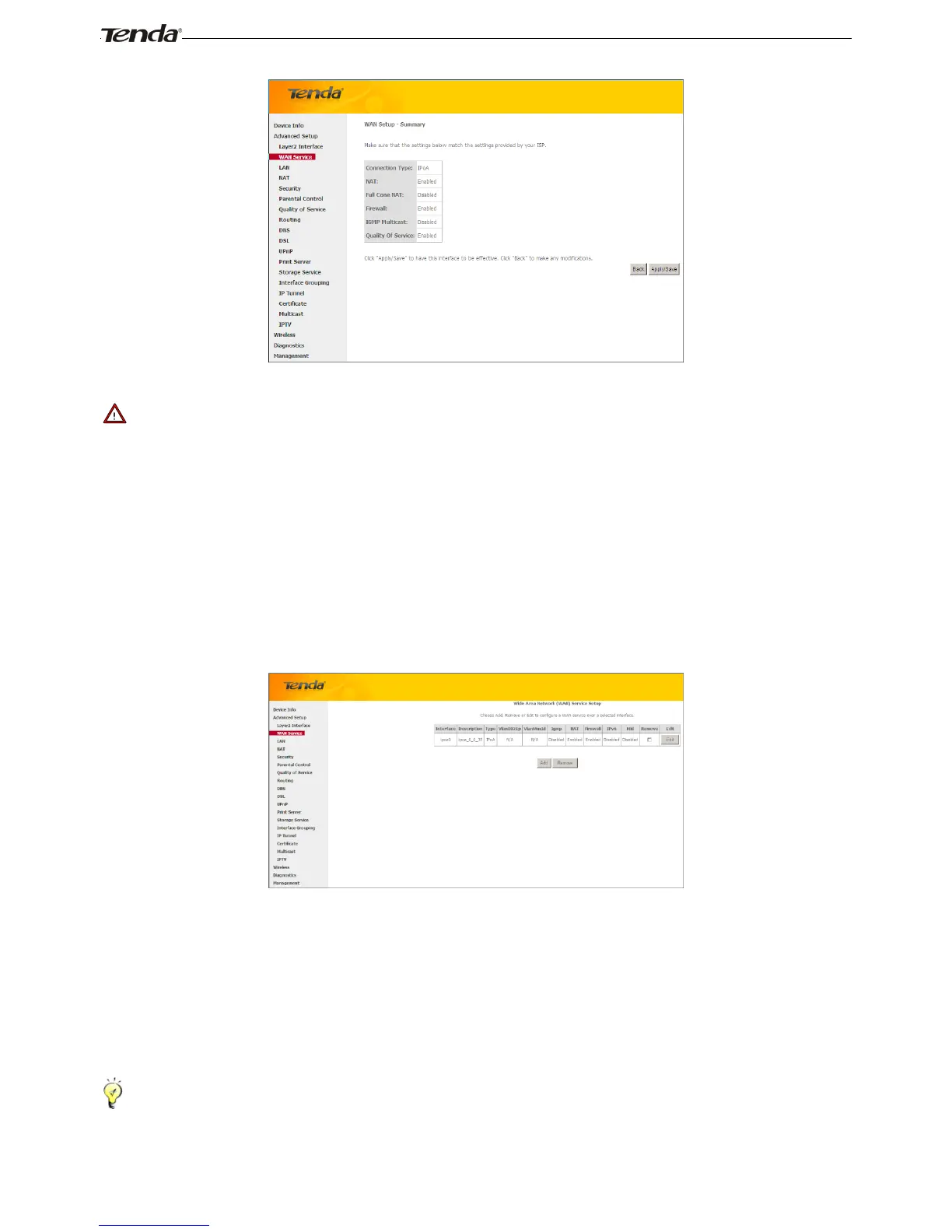

And then click Next to enter the following screen.
_________________________________________________________________________________________________
Note:
1. DNS Server Interfaces can have multiple WAN interfaces served as system dns servers but only one will be used
according to the priority with the first being the higest and the last one the lowest priority if the WAN interface is
connected. Priority order can be changed by removing all and adding them back in again.
2. In ATM mode, if only a single PVC with IPoA or static IPoE protocol is configured, Static DNS server IP addresses
must be entered.
3. If you cannot locate the static DNS server IP information, ask your ISP to provide it.
_________________________________________________________________________________________________
Confirm your settings and then click Apply/Save to apply and save your settings. Your settings will then be displayed on
the screen below:
To setup WAN Service for ETH Interface
If you select and configured the ETH Interface (Ethernet uplink), follow steps below to configure the WAN service:
Two Internet connections: PPP over Ethernet (PPPoE) and IP over Ethernet (IPoE) are available in the Ethernet uplink
mode.
_________________________________________________________________________________________________
Tip:
eth0, eth1, eth3 and eth3 respectively represent the LAN port1, LAN port2, LAN port3 and LAN port4 of the device.
_________________________________________________________________________________________________

Tenda D151 Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	1
Antenna gain level (max)	5 dBi
Product type	Tabletop router
Product color	White
LED indicators	Power, System, USB, WLAN, WPS
Output current	1 A
Output voltage	9 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Bandwidth (first)	2.4 GHz
Security algorithms	SSID, WDS, WPA2-PSK
Cables included	LAN (RJ-45)
Certification	FCC / CE / RoHS

Weight and Dimensions

Depth	171.61 mm
Width	111.16 mm
Height	34.47 mm
