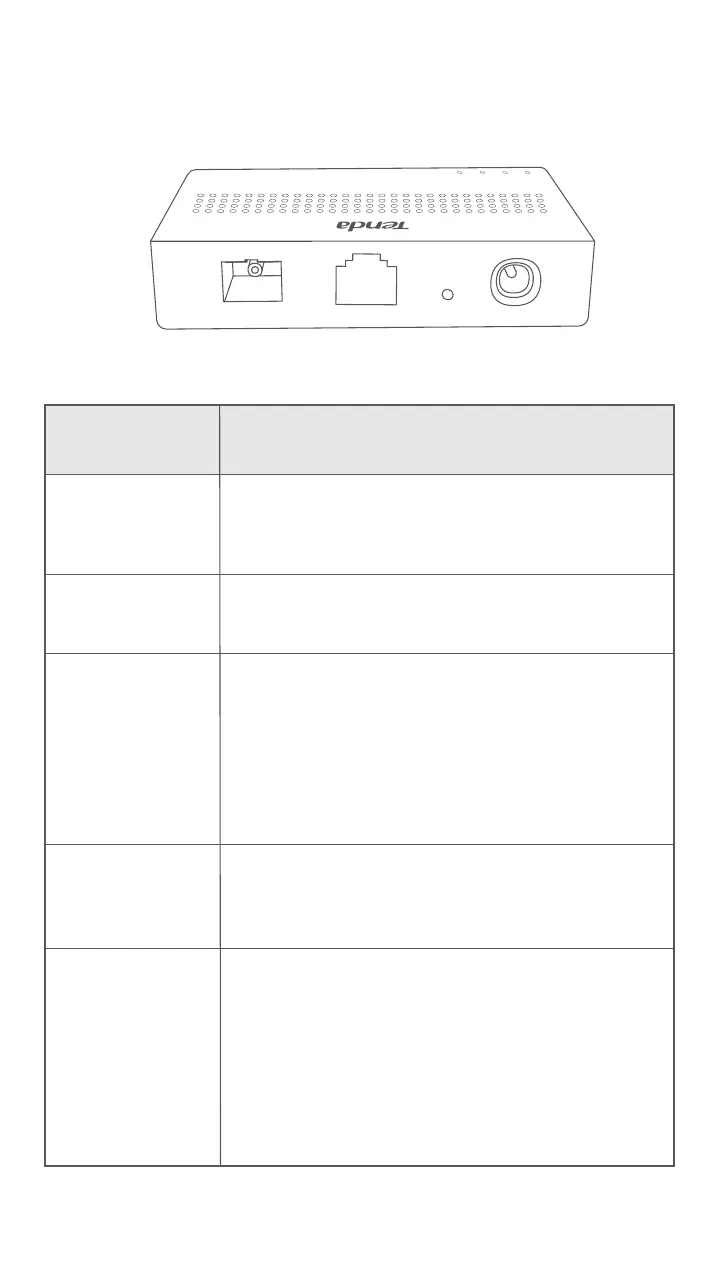

Ports, button and jack
PON
Optical fiber port
Used to connect to optical network through a fiber
cord.
LAN port
Used to connect to a router, switch or computer.
Reset button.
When the PWR LED indicator lights solid on, use an
object with a spike to hold the button down for
longer than 10 seconds and release it. All LED
indicators light off several seconds later. When the
PWR LED indicator lights solid on again, the ONT is
reset.
Power jack
Use the included power adapter to connect the
device to a power source.
Used to mount the device onto the wall.
Wall-mounting materials are self-prepared.
Recommended specifications of the expansion
bolts and screws you may use are as follows:
[Expansion bolt] Inner diameter: 2.4 mm;
Length: 26.4 mm.
[Screws] Quantity: 2; Thread diameter: 3 mm;
Length: 14 mm; Head diameter: 5.2 mm.
Port/Button/
Jack
LAN
Wall-mounting hole
RST
PWR
Description
PWR PON LO S LAN
PON LAN RST PWR
