98

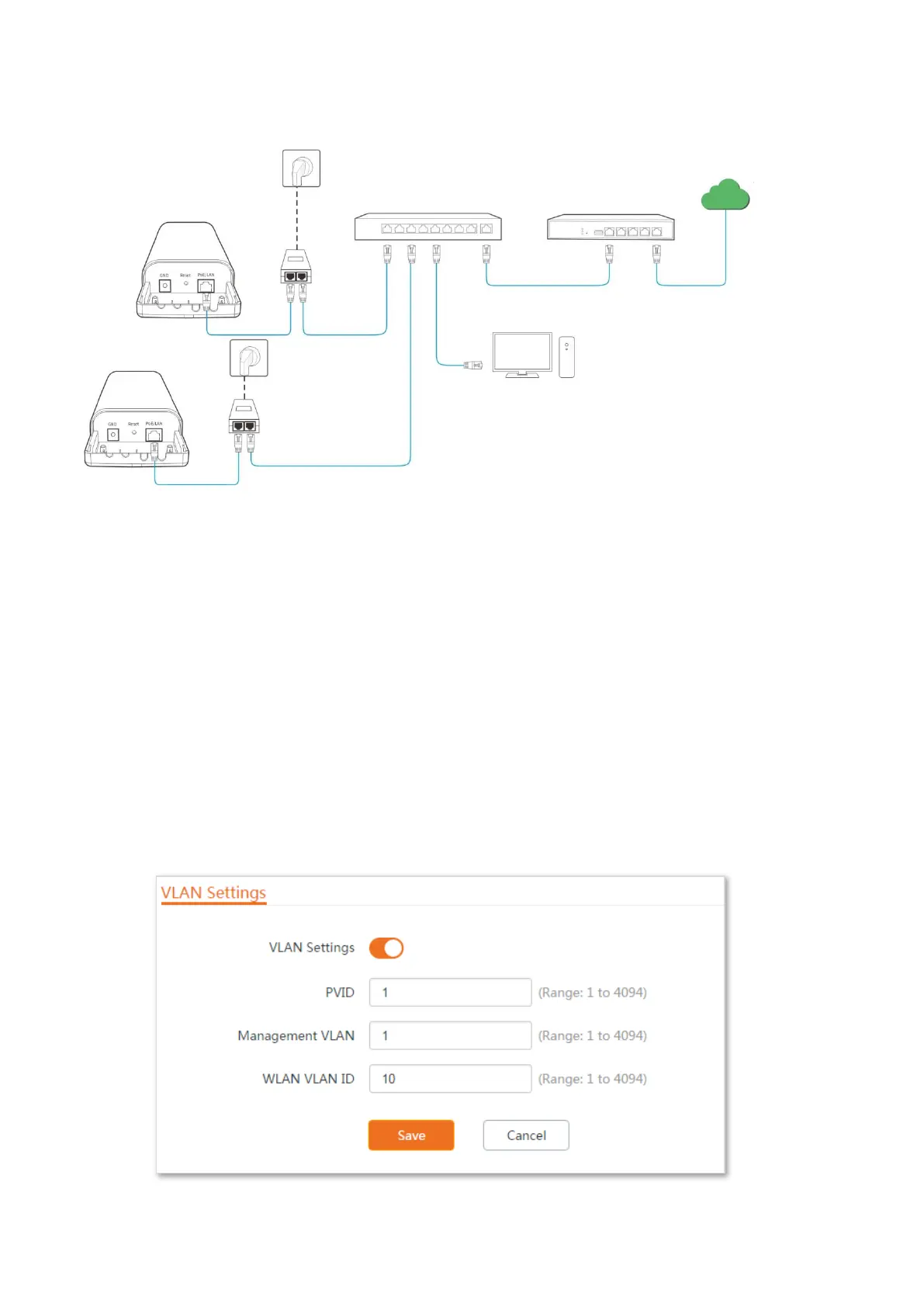

Network Topology
The connections of the switch:
−
The rout
er is connected t
o the uplink port
−
CPE1 is connect
ed to port 1
−
CPE2 is connect
ed to port 2
Configuration procedures
Step 1
Set up CPE1.
1.
Log in to the web UI of CPE1, and choose
Network
>
VLAN Settings
.
2.
Enable the function.
3.
Set
Management VLAN
to
1
.
4.
Set
WLAN VLAN ID
to
10
.
5.
Click
Save
.
CPE2: VLAN20
CPE1: VLAN10
Switch
Rout
er
Internet
105
107
Table of Contents
Table of Contents
7
Application Scenario
9
ISP Hotspot Connection-WISP Mode
9
CCTV Surveillance
14
Login
24
Logout
27
Web UI
28
Web UI Layout
28
Common Buttons
29
Quick Setup
30
AP Mode
31
Client Mode
34
Example of AP Mode and Client Mode
37
Universal Repeater Mode
42
Example of Universal Repeater Mode
45
WISP Mode
48
Example of WISP Mode
52
Repeater Mode
56
P2MP Mode
65
Example of Repeater Mode and P2MP Mode
71
Router Mode
77
Example of Router Mode
80
Status
83
System Status
83
Wireless Status
86
Statistics
88
Network
94
LAN Setup
94
MAC Clone
99
DHCP Server
101
DHCP Client
103
VLAN Settings
104
Wireless
108
Basic
108
Advanced
135
Access Control
138
Advanced
141
LAN Rate
141
Diagnose
143
Bandwidth Control
151
Port Forwarding
154
MAC Filter
159
Network Service
163
Tools
181
Date & Time
181
Maintenance
183
Account
190
System Log
192
Appendix
193
A1. Default Parameters
193
How to Assign a Fixed IP Address to Your Computer
195
How to Check the Gateway IP Address of a Computer
197
