Option A Connect to the included PoE injector
Power the AP CAT5e or better Ethernet cables are recommended.

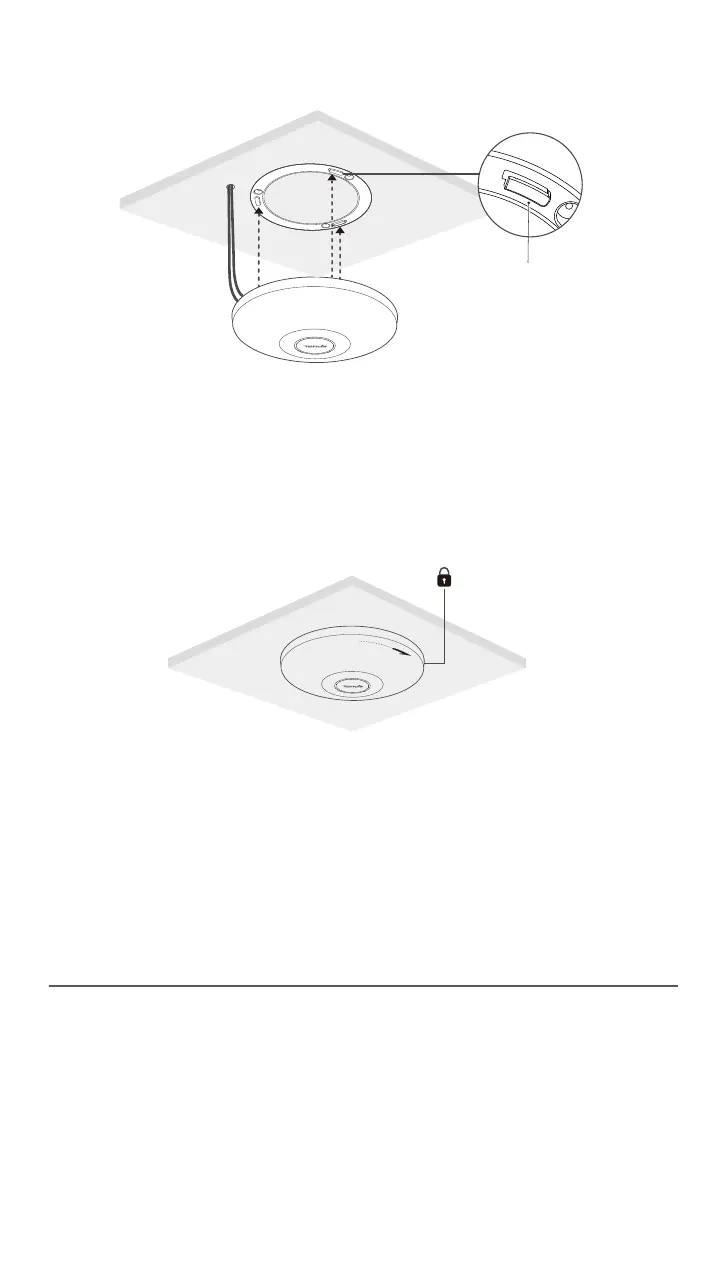

Ensure that the AP is firmly seated onto the bracket. Turn the
AP clockwise until it is fixed securely onto the bracket.
1. Use an Ethernet cable to connect the LAN/PoE port of the AP
to the PoE port of the PoE injector.
2. Use the included power adapter to connect the PoE injector to
a power source.
Align the slots of the AP with the hooks of the bracket.
- 6 -
Hook

Other manuals for Tenda i27

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda i27 and is the answer not in the manual?

Tenda i27 Specifications

General IconGeneral
Antenna typeExternal
Antennas quantity2
Antenna gain level (max)4 dBi
2.4 GHzYes
MIMO typeMulti User MIMO
Number of users254 user(s)
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11v, IEEE 802.3at
Virtual LAN featuresTagged VLAN
Spread spectrum methodOFDMA
Ethernet LAN data rates10, 100, 1000 Mbit/s
Maximum data transfer rate2976 Mbit/s
Maximum data transfer rate (5 GHz)2402 Mbit/s
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Power consumption (max)14.04 W
PlacementCeiling, Wall
Product colorWhite
Security algorithmsSSID, WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Number of SSID supported8
Service Set Identifier (SSID) featuresHidden SSID
Storage temperature (T-T)-30 - 70 °C
Operating temperature (T-T)-10 - 45 °C
Operating relative humidity (H-H)10 - 90 %
USB 2.0 ports quantity-
Ethernet LAN (RJ-45) ports1
Weight and Dimensions IconWeight and Dimensions
Depth38 mm
Width178 mm
