Tenda O1 User Manual

137

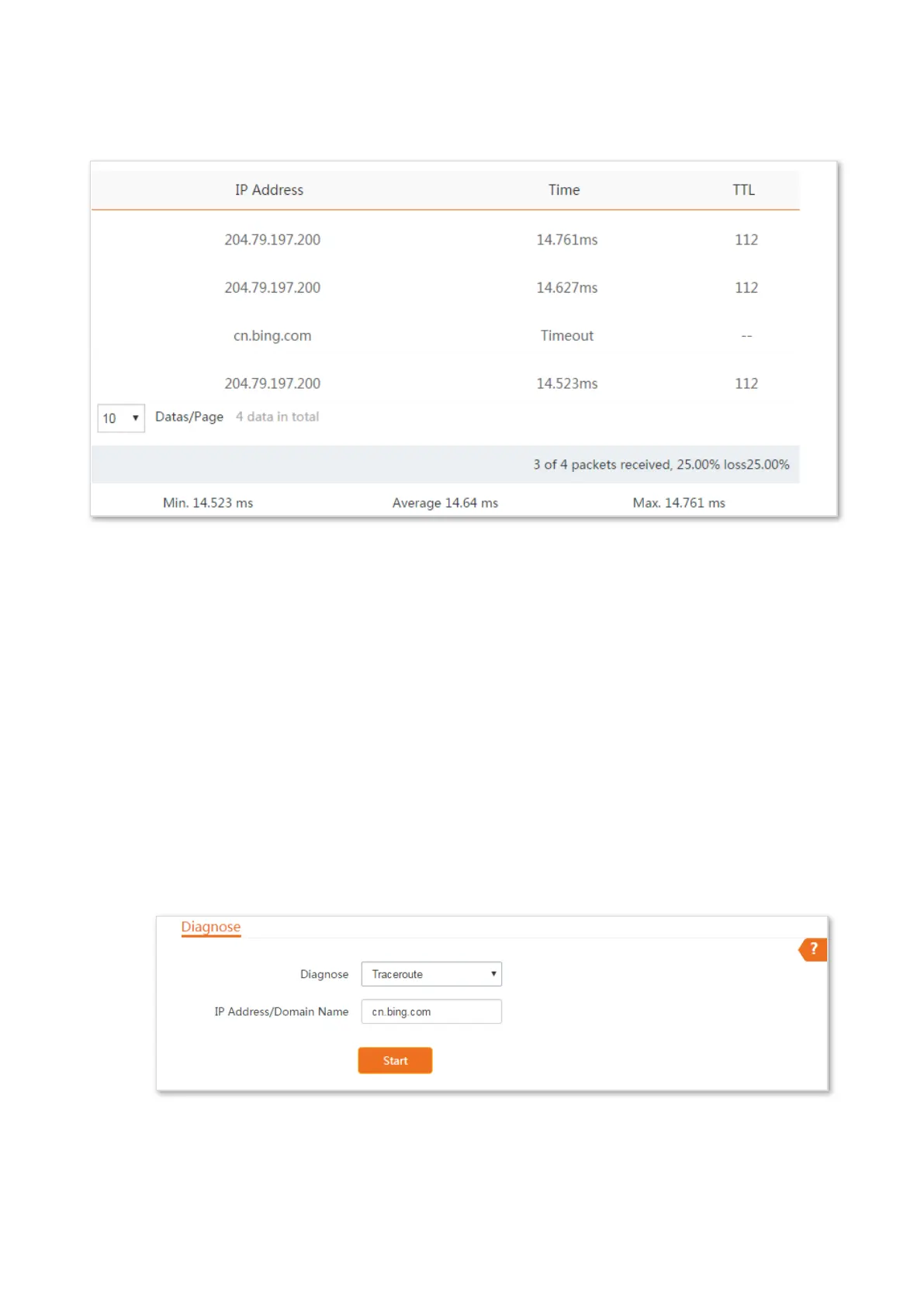

The diagnosis result will be displayed in a few seconds in the list below Start button. See the
following figure:
8.2.4 Traceroute
You can use the Traceroute tool to detect the routes that the packets pass by from the device to
destination host.
Assume that you want to detect the routes that the packets pass by from the device to
cn.bing.com.
Configuration procedures:
Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Diagnose.
Step 2 Select Traceroute in the Diagnose drop-down list menu.
Step 3 Enter the target IP address or a domain name, which is cn.bing.com in this example.
Step 4 Click Start.
----End
The diagnosis result will be displayed in a few seconds in the list below Start button. See the
following figure:

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
