Tenda O1 User Manual

90
6.1.4 Set the device to obtaining an LAN IP address automatically
This mode enables the device to automatically obtain an IP address, a subnet mask, a gateway IP
address, DNS server IP addresses assigned by the DHCP server of the upstream device. If a large
number of devices are deployed, you can adopt this mode to prevent IP address conflicts and
effectively reduce your workload.
Configuration procedures:

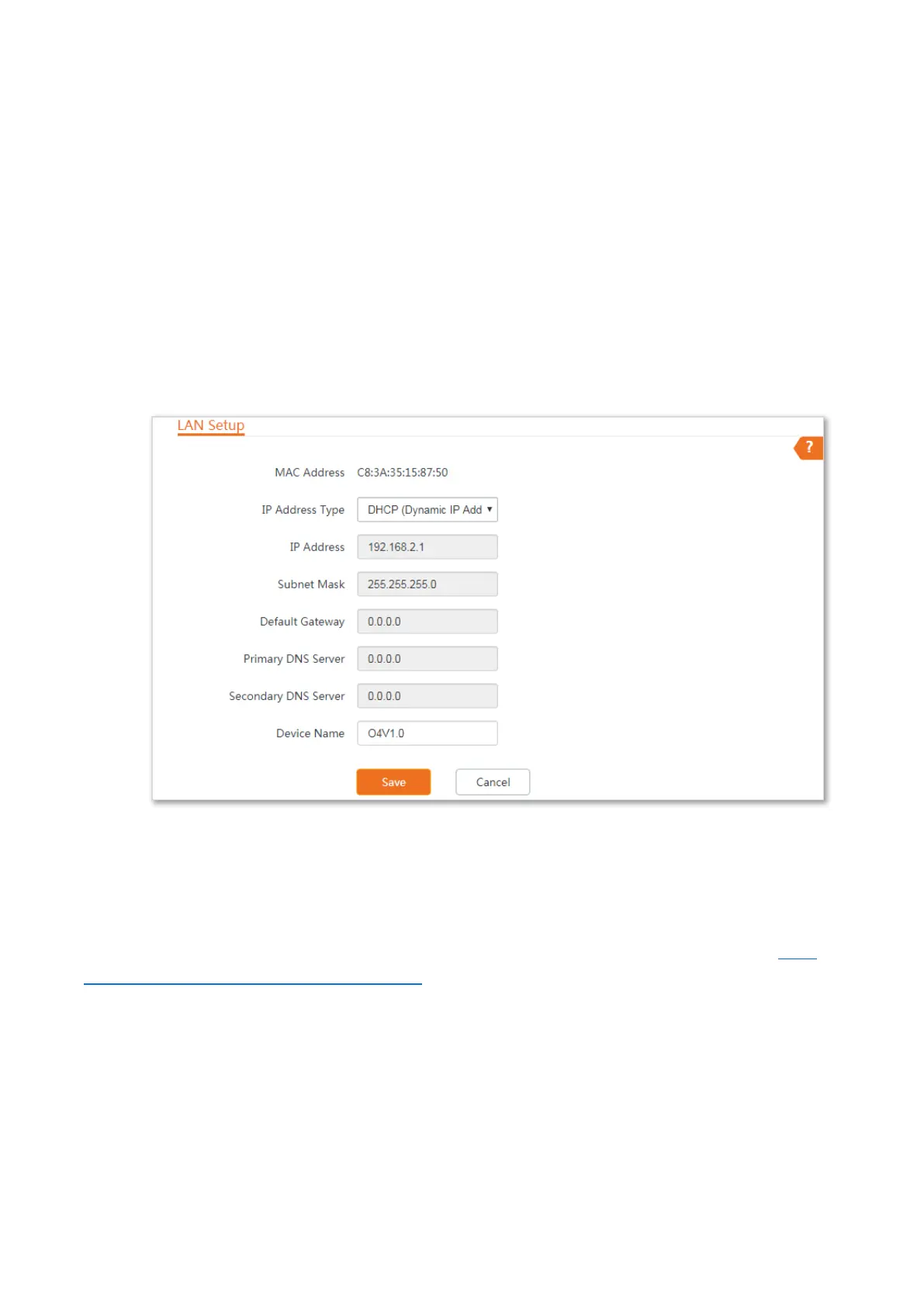

Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Network > LAN Setup to enter the configuration page.
Step 2 Set IP Address Type to DHCP (Dynamic IP Address).
Step 3 Click Save.
----End
After completing the configuration, if you want to re-log in to the web UI of the device, check the
new IP address on the web UI of the upstream device which assigns the IP address to this device.
Ensure that the IP address of the management computer and the IP address of the device belong
to the same network segment, and access the IP address of the device. Refer to steps in the How
to assign a fixed IP address to your computer part to assign an IP address to the computer
manually.

Tenda O1 Specifications

General

5 GHz	No
Bandwidth	2.4 GHz
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Maximum data transfer rate	300 Mbit/s
Placement	Wall
Certification	FCC/CE/RoHS
Product color	White
LED indicators	LAN, PoE, WLAN
International Protection (IP) code	IP64
Output voltage	9 - 12 V
Power consumption (max)	2.6 W
Security algorithms	WEP, WPA-PSK, WPA2-PSK
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Antenna features	Integrated antenna
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-30 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	67.5 mm
Width	80 mm
Height	190.35 mm
