(1)
(1)
Loosen the nut and remove the quick release lever. Secure the nut behind the head light with the 10mm Wrench,
and then loosen the screw with the 5mm Hex Key.
Remove the protective sheet from the brake clamps.
Put the nut back, and then slightly tighten it.
Use the 4mm Hex Key to remove the pre-installed screws
on the front fork joints, install the two support rods on the
joints, and then slightly tighten the screws here.
Manually adjust the height of the mudguard to the top
position, and then tighten all screws.
(2)
(2)
(3)
(3)
(4)
(4)
(5)
Remove all wrapping material from the quick release.
Remove the nut, and then hook the middle of the front
mudguard to the screw.
There is no need for you to fully tighten the nut at this time.
The protective sheet on the brake should be removed only at this step, and kept for future use.
Removing it too early could damage the brake caliper.
When installing the quick release spring, you should ensure that the orientation is the same as
when it was removed.
05

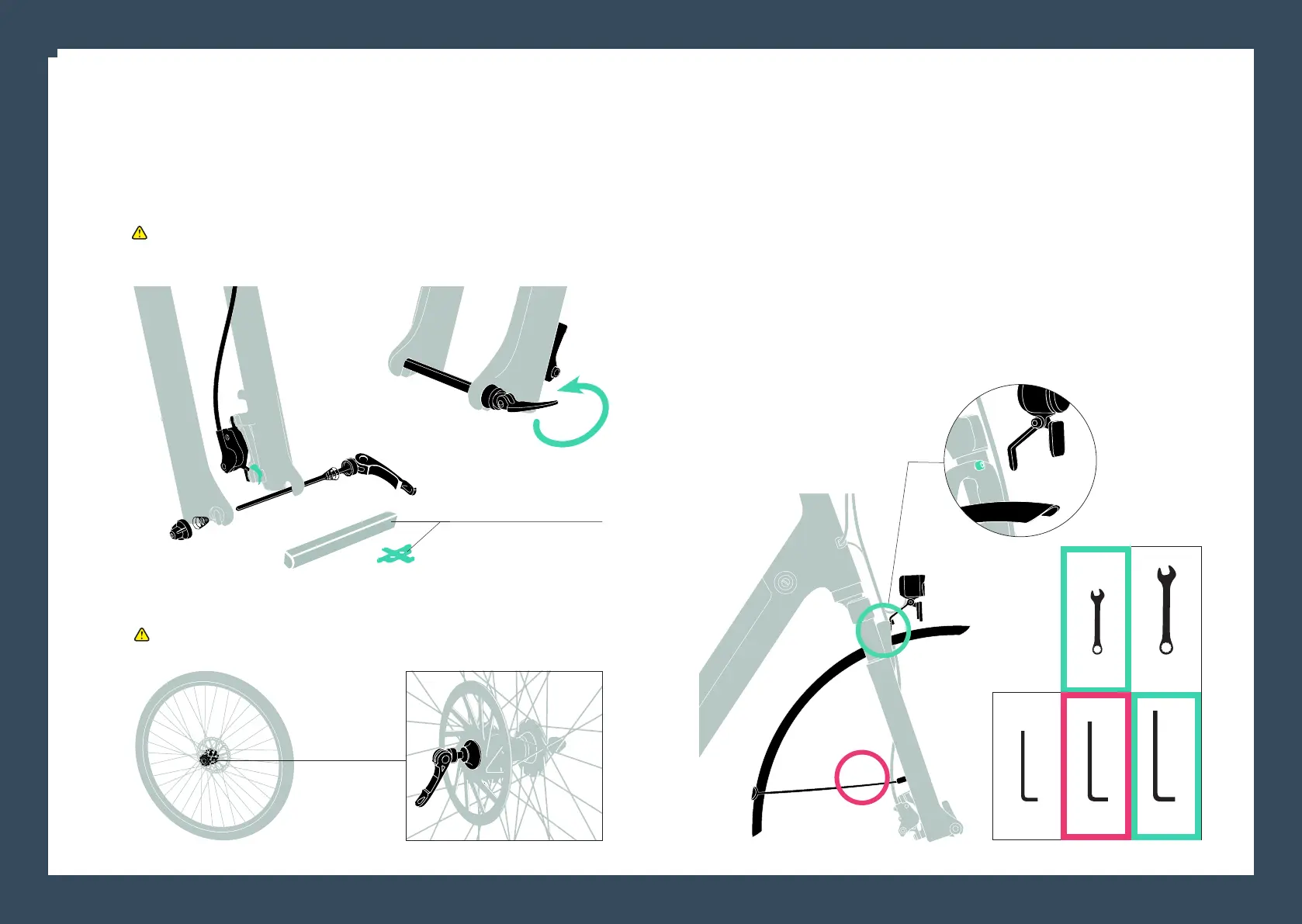

Install the front wheel mudguard.
0
4
Remove quick release from the front
fork. Pre-install it on the front wheel.
10mm
Wrench
15mm
Wrench
3mm
Hex Key
4mm
Hex Key
5mm
Hex Key
Keep wrapping materials and
protective sheet for future use.
Install the quick release on the front wheel in the direction shown in
the gure, and then tighten the nut.
6 7
