ANTENNA RECEIVE PATTERN

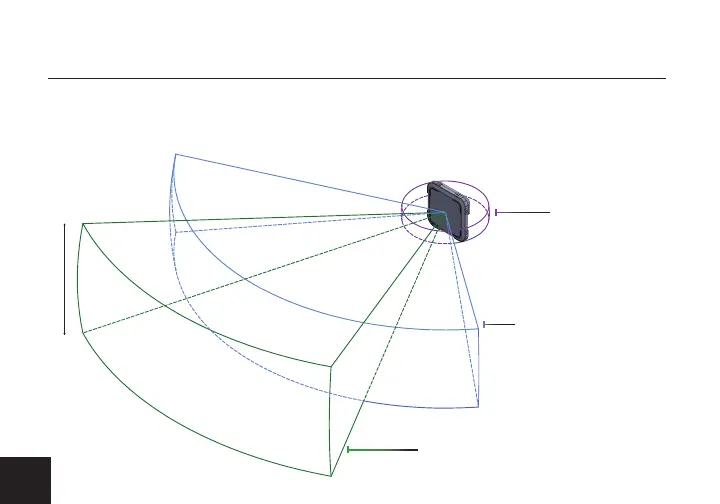

The Bolt Panel Antenna has a built-in directional antenna with a receive pattern that varies based on
its distance from the transmitter. The horizontal receive angle measures 55° at 5,000 ft (1.5 km), 104°
at 4,000 ft (1.25 km), and is eectively omni directional at up to 500 ft (150 m). The vertical receive
angle measures 20° at any distance.
500 ft (150 m) ~ 360°
5,000 ft (1.5 km) ~ 55°
4,000 ft (1.25 km) ~ 104°
20°
