Fourth Edition • Fourth Printing Operator's Manual

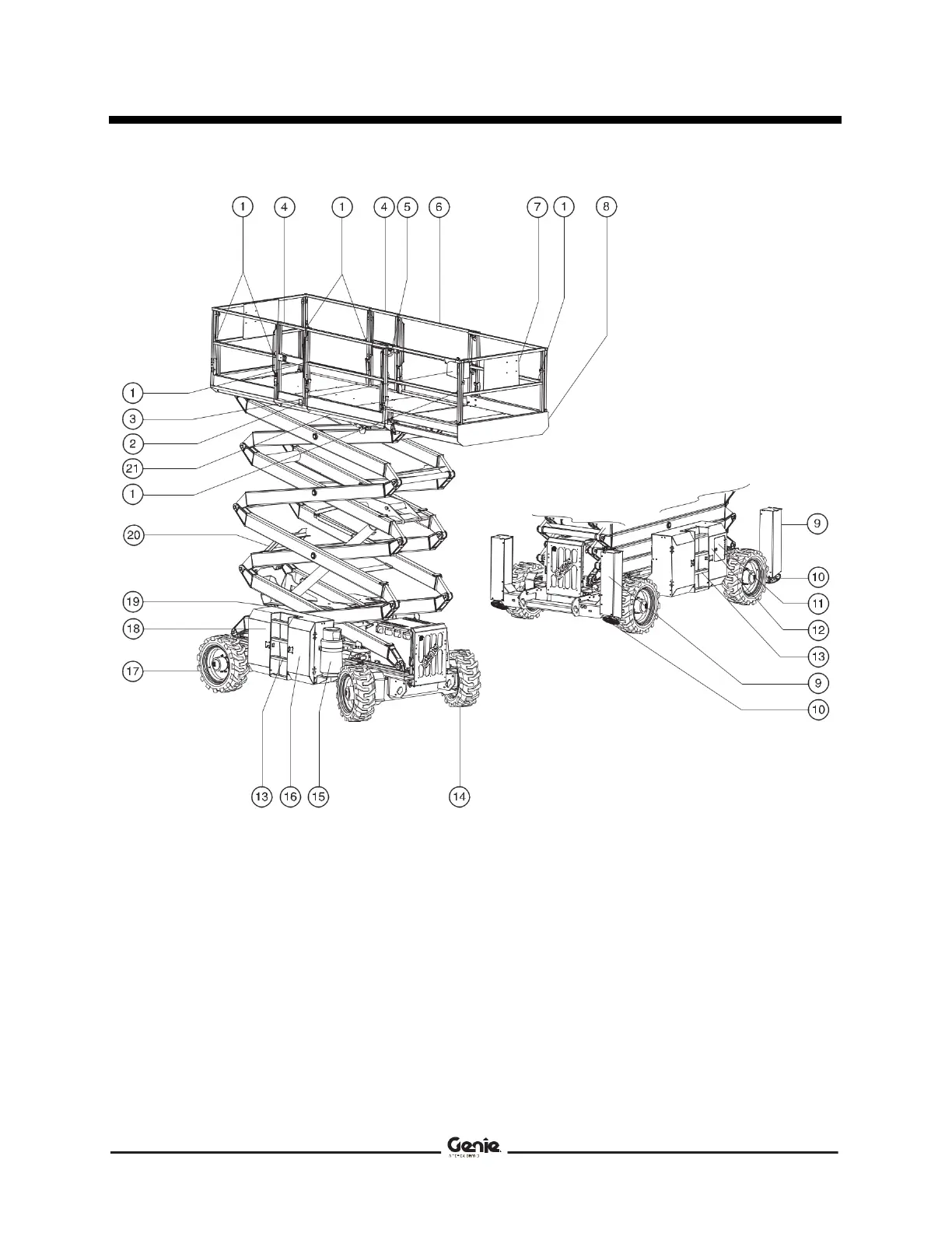

Legend
1 Lanyard anchorage points
2 GFCI outlet
3 Platform controls
4 Platform entry gate
5 Platform extension
lock handle
6 Platform guard rails
7 Manual storage container
8 Platform extension
9 Outrigger housing
(if equipped with outriggers)
10 Outrigger footpad
(if equipped with outriggers)
11 Ground controls with LCD
readout screen
12 Tilt alarm
(behind ground control panel)
13 Entry ladder
14 Steer tire
15 LPG tank
16 Hydraulic tank (behind cover)
17 Non-steer tire
18 Fuel tank (behind cover)
19 Power to platform
(hidden from view)
20 Safety arm (hidden from view)
21 Capacity indicator
(if equipped)
Part No. 133564 GS-3384 • GS-3390• GS-4390• GS-5390 19
