5 Installation of generator
340-1560-12.65-93
2
3
1

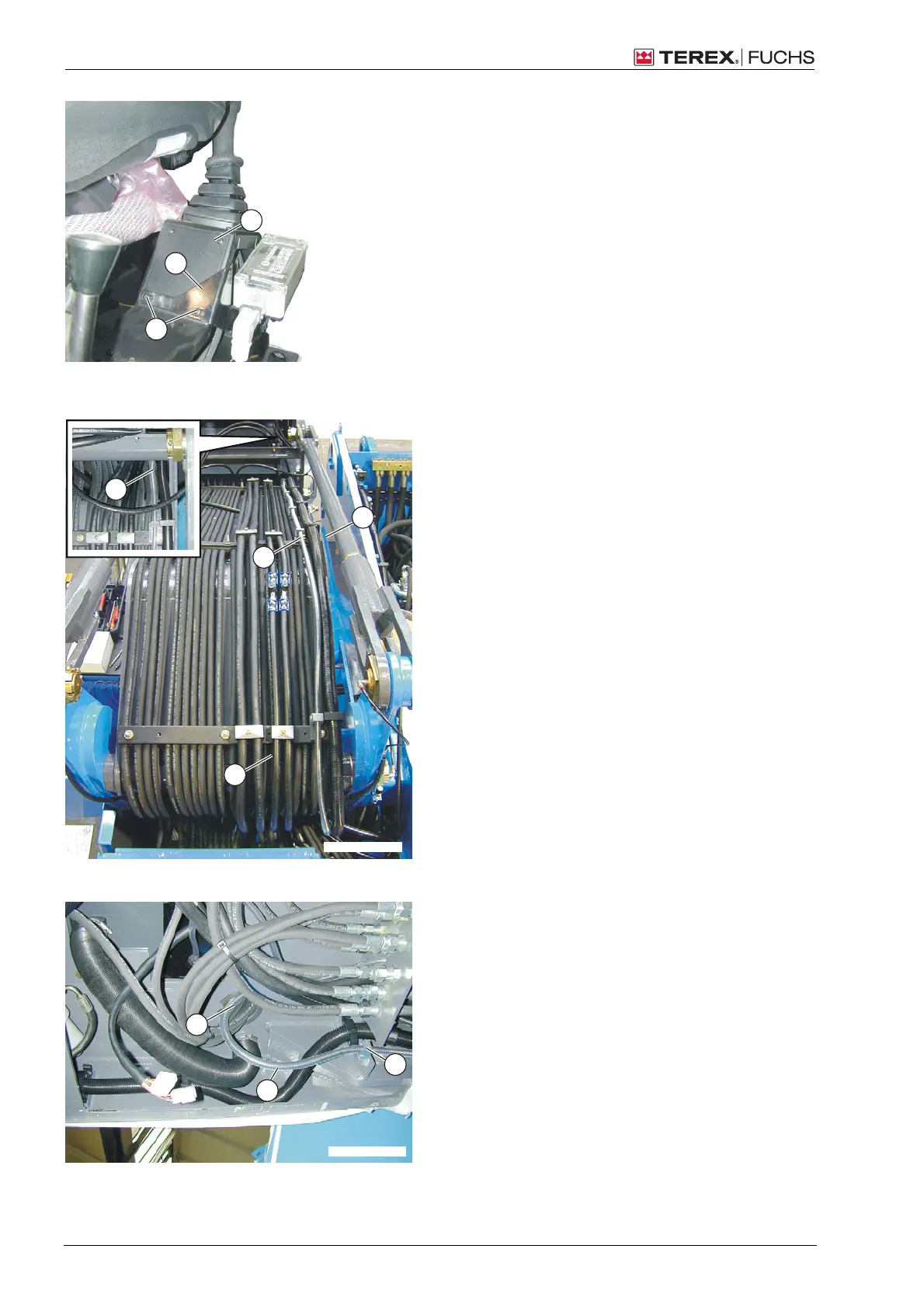

Electrical box on the control lever carrier (view: driver's seat;
right)
Remove the two lower fastening screws
(3) on the right control lever carrier (1).
Connect and tighten the support (2) with
these fastening screws.
340-1560-12.65-94
1
2
2
3
Connecting cable to lever arm (view: service ladder; right)
Laying connecting cable for electrical
box/generator
Set down the connecting cable on the
lever arm (1) and roll it out.
Guide the end of the cable over the lever
arm (1) to the bottom of the cab floor (2).
Lay out the other end of the cable on the
back part of the lever arm (3).
340-1560-12.65-95
1
3
2
Connecting cable in cab (view: below cab)
Guide the connecting cable (2) up through
the access hole (3) in the cab floor.
Fasten in place later with corrugated hose
holder (1).
