5 Installation of generato
340-1560-12.65-96
1
2

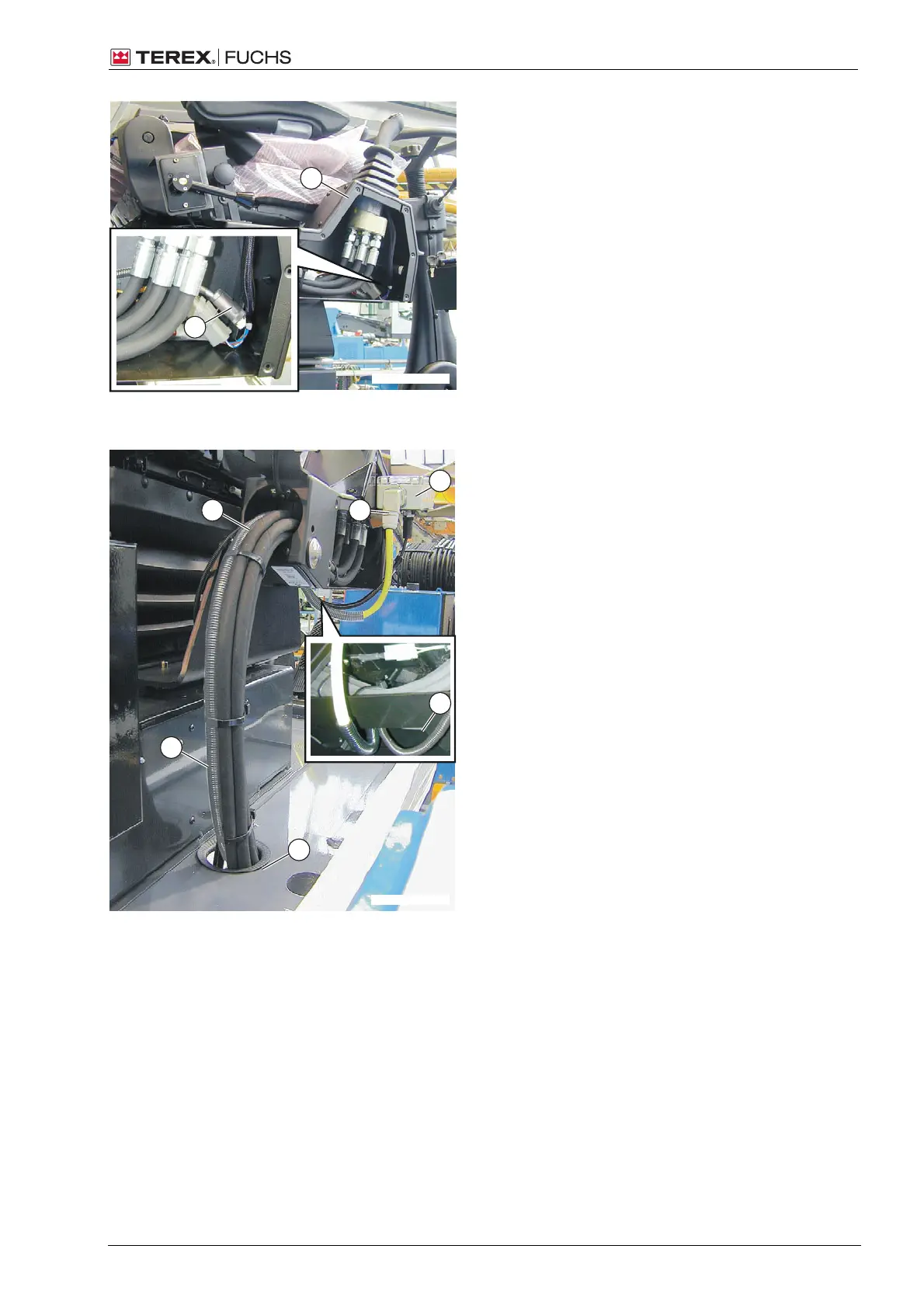

Connection cable on the control lever carrier (view: driver's
seat; right)
Remove the cover (1) on the right control
lever carrier.
Pull out the B55 connection cable (2).
340-1560-12.65-82
1
3
6
5
2
4
Connecting the connecting cable (view: driver's seat; right)
Guide in the connecting cable (2) from the
access hole (1) into the control lever car-
rier (3).
Guide the connecting cable out through
the access hole (6).
Insert the connecting cable plug into the
electrical box (5) and secure it (4).
12.65-SA10403-en-110808 Version 11.08.2008 31 (60)
