5 Installation of generator
340-1560-12.65-97
1
3
4
2

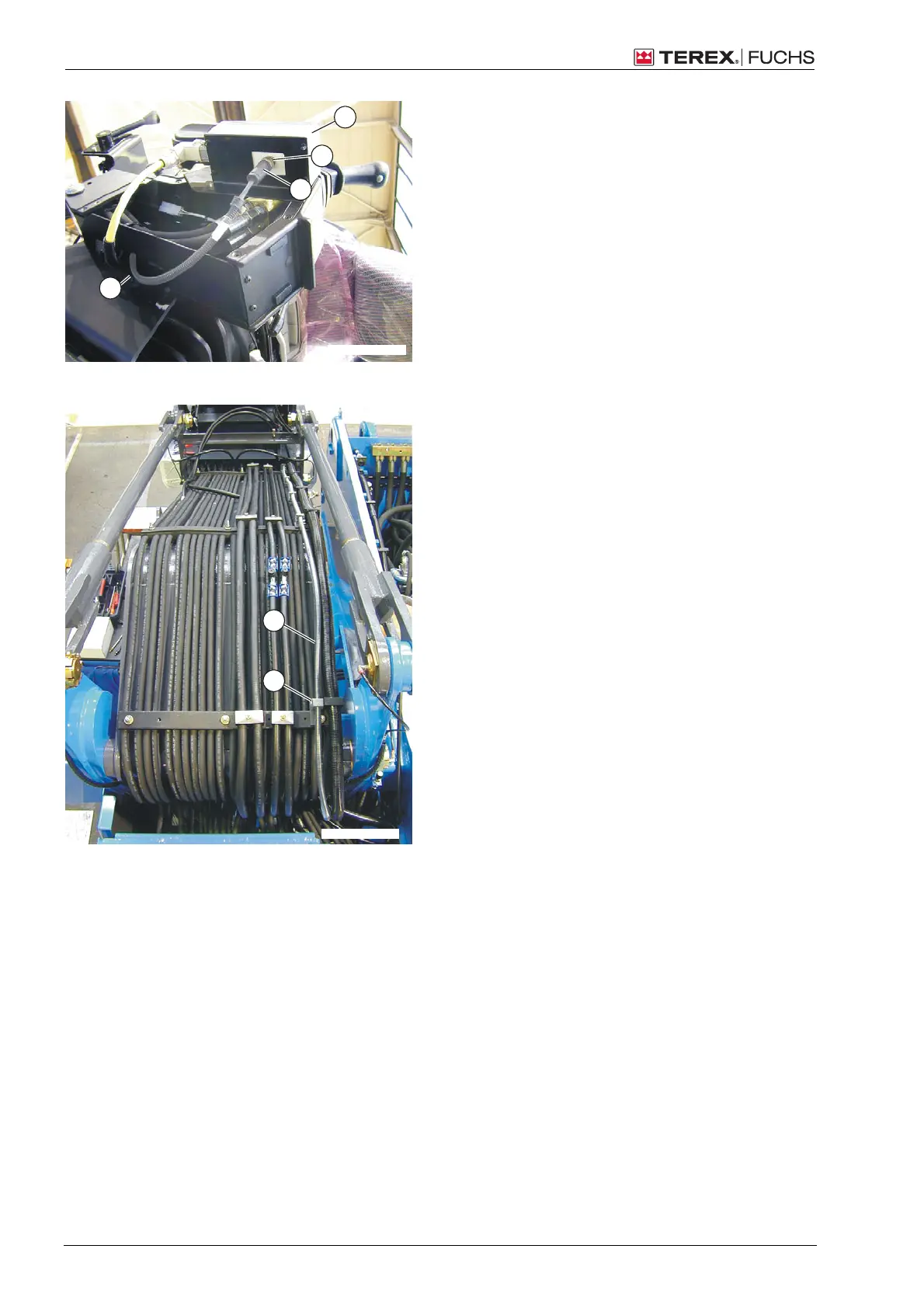

Connecting the connection cable (view: driver's seat; right)
Guide the connection cable (3) out through
the access hole (4) as well.
Insert the connecting cable plug (3) into
the electrical box (1) and tighten it (2).
340-1560-12.65-98
2
1
Laying the connecting cable on lever arm (view: lever arm;
right)
Guide the connecting cable (1) over the
lever arm.
Fasten in place later with corrugated hose
holders (2).
