Terex FUCHS MHL340 D User Manual

5 Installation of generato
r
340-1560-12.65-116
2
1
3
4

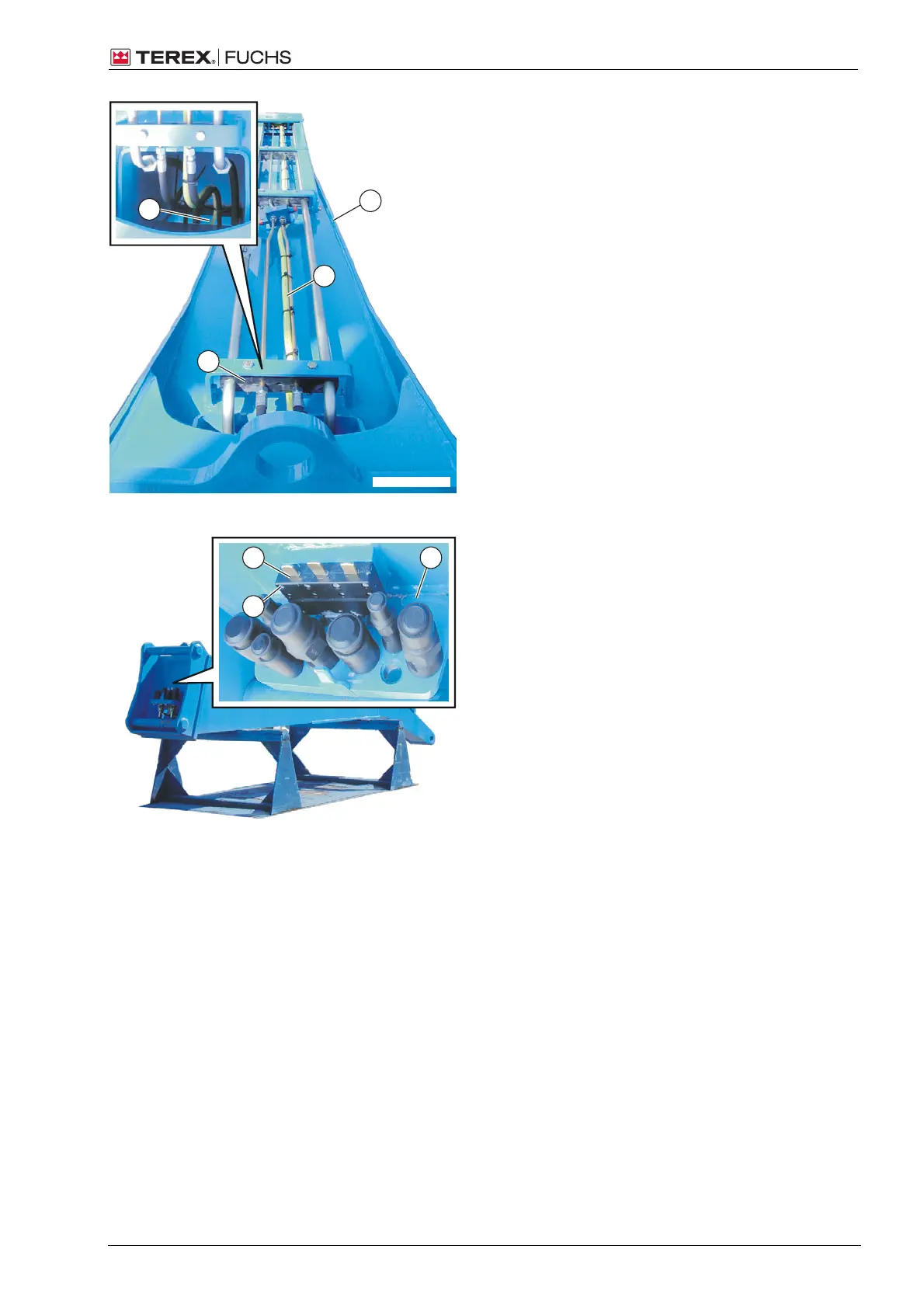

Magnet cable to stick head
Laying the magnet cable from the magnet
socket to the coupler socket
 Lay the magnet cable (2) in the stick head
(1) under the hose bracket (3).
 Guide the magnet cable through the open-
ing out of the stick head (4).
340-1560-12.65-117
1
2
3
Magnet plug on the stick head
Attaching the magnet plug
 Guide the magnet cable from below
through the support (3).
 Connect the magnet plug with the magnet
cable as described for the magnet socket.
h on page 53: Preparations for the mag-
net socket
 Fasten the magnet plug (1) with the fas-
tening screws (2).
12.65-SA10403-en-110808 Version 11.08.2008 55 (60)
