Terex FUCHS MHL340 D User Manual

5 Installation of generator
340-1560-12.65-118
1
2
3

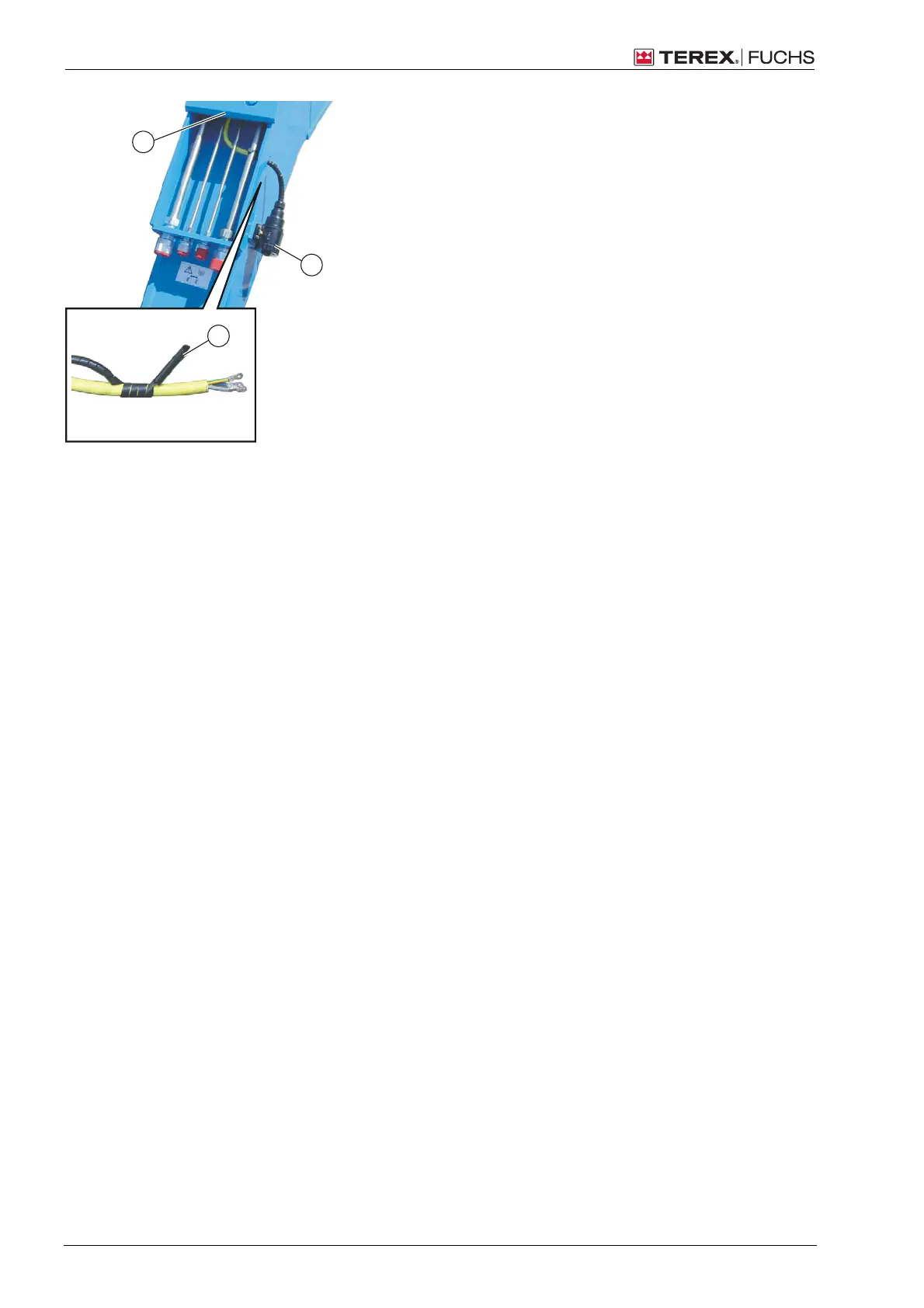

Coupler socket on stick head
Attaching the coupling plug
 Wrap the cable end from the coupler sock-
et to the stick head with coil (2).
 Attach the coupler socket as described for
the standard version.
h on page 39: Attaching the coupler
socket
 Equalize the cable length with a loop un-
der the cover (3).
Fastening the magnet cable
 Close all hose brackets.
 Fasten the magnet cable with cable ties.
