Second Edition • Third Printing Operator's Manual
Legend
Part No. 1298222GT GS™-2669RT • GS™-3369RT • GS™-4069RT 21

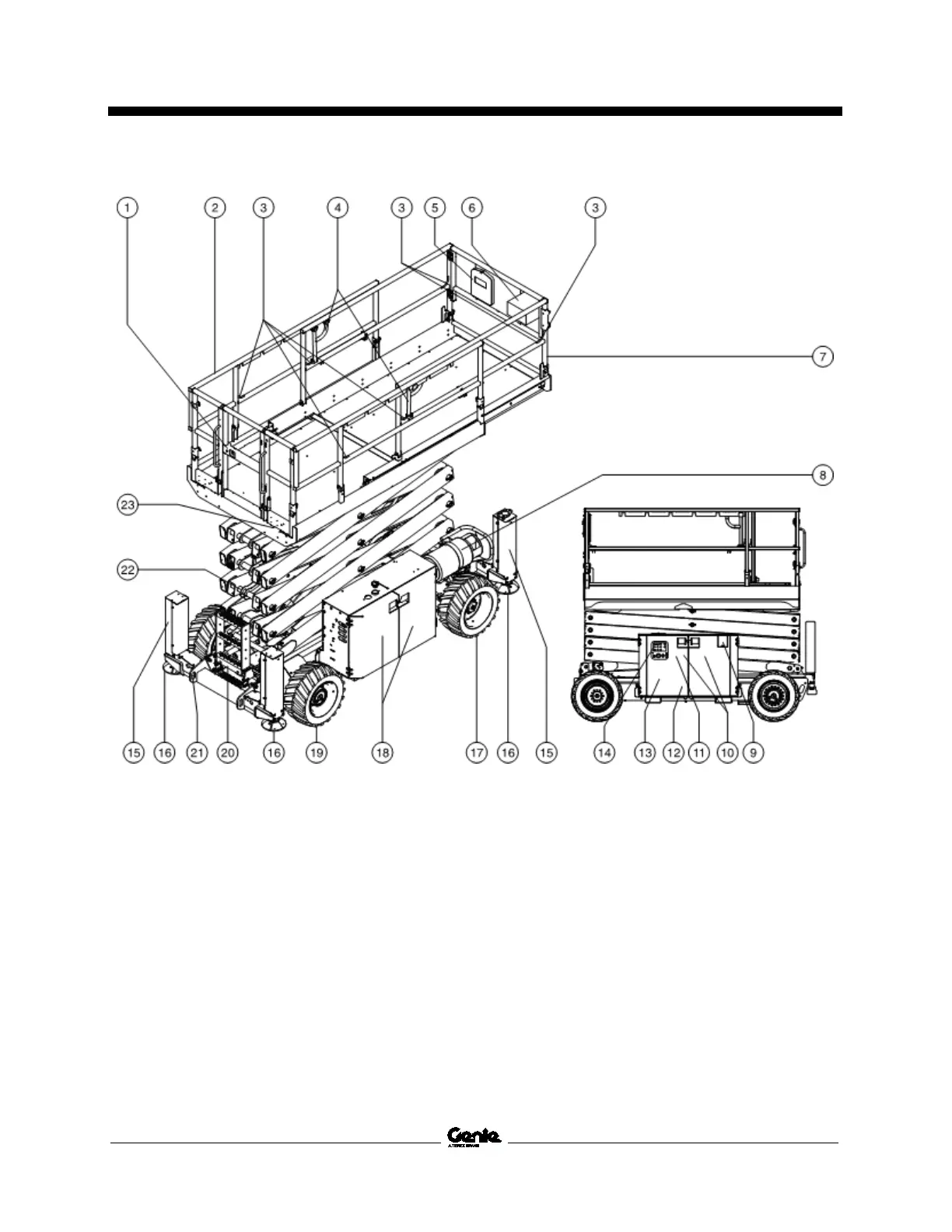

Legend
1 Platform entry gate
2 Platform guard rails
3 Lanyard anchorage points
4 Platform extension lock
handle
5 Manual storage container
6 Platform controls
7 Platform extension
8 LPG tank
9 Fuel tank
10 Ground controls side covers
11 Hydraulic tank (behind cover)
12 Tilt alarm (behind cover)
13 Hydraulic oil level indicator
(behind cover)
14 Ground controls with LCD
readout screen
15 Outrigger housing (if
equipped with outriggers)
16 Outrigger footpad (if equipped
with outriggers)
17 Steer tire
18 Engine side covers
19 Non-steer tire
20 Entry ladder
21 Transport tie-down
22 Safety arm
23 GFCI outlet
