Operator's Manual First Edition • Second Printing
Controls
24 GS
™
-1432m • GS
™
-1932m • GS
™
-1932m Lite Part No. 1308591GT

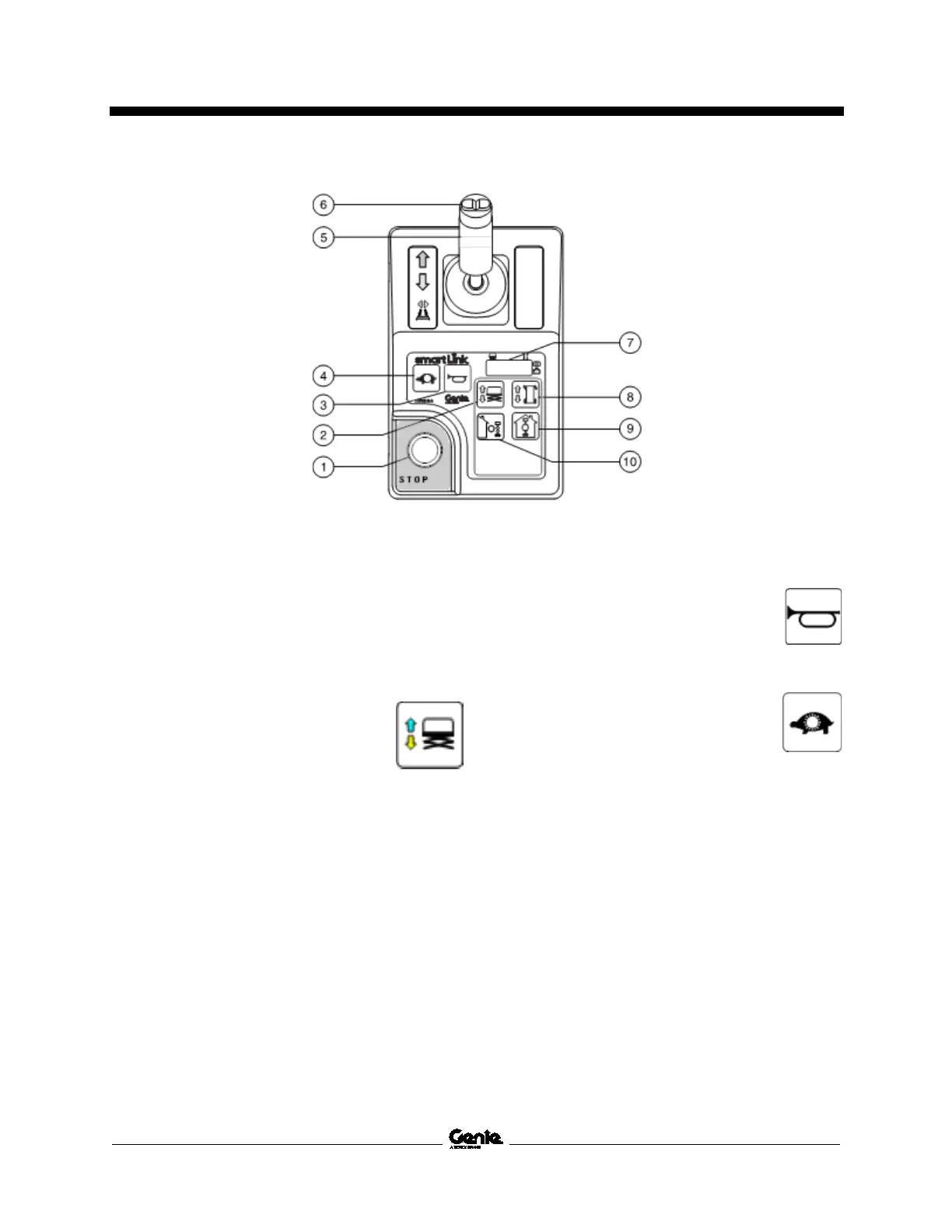

Controls
The ground control station is to be used as a means to raise the platform for function tests and for storage
purposes. The ground control station can be used in the event of an emergency to rescue an
incapacitated person in the platform.

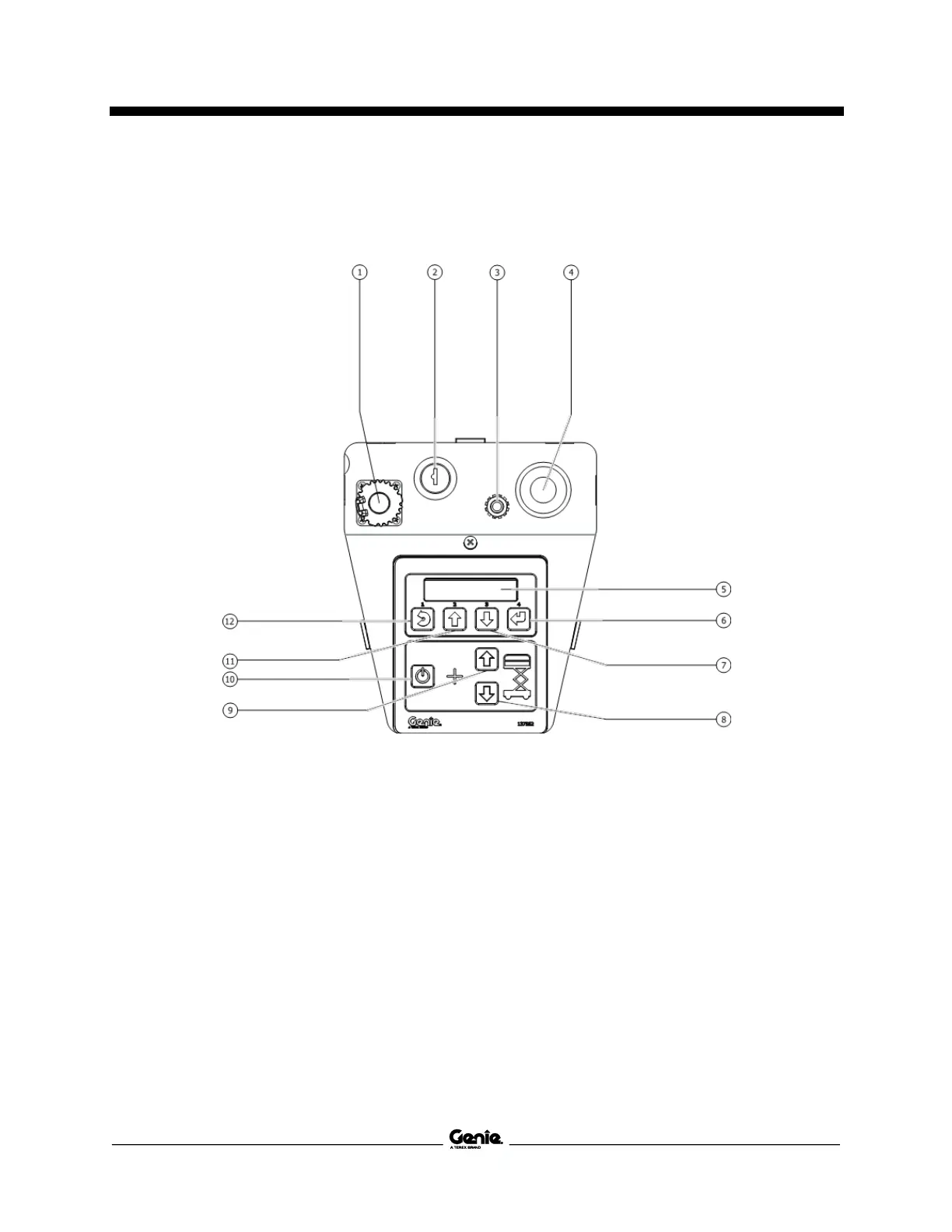

Ground Control Panel
1 Tech Pro Link Connector
2 Key switch for platform/off/ground selection
Turn the key switch to the platform position and
the platform controls will operate. Turn the key
switch to the off position and the machine will be
off. Turn the key switch to the ground position
and the ground controls will operate.
3 7A breaker for electrical circuits
4 Red Emergency Stop button
Push in the red Emergency Stop button to the off
position to stop all functions. Pull out the red
Emergency Stop button to the on position to
operate the machine.
5 LCD diagnostic readout
6 Menu enter button
7 Menu down button
8 Platform down button
9 Platform up button
10 Lift function enable button
Press and hold this button to activate the lift
function.
11 Menu up button
12 Menu escape button
