Terex GS32MT-101 User Manual

First Edition • Second Printing Operator's Manual
Transport and Lifting Instructions
Part No. 1308591GT GS
™
-1432m • GS
™
-1932m • GS
™
-1932m Lite 61
Lifting Instructions
Fully lower the platform. Be sure the extension
deck, controls and component trays are secure.
Remove all loose items on the machine.

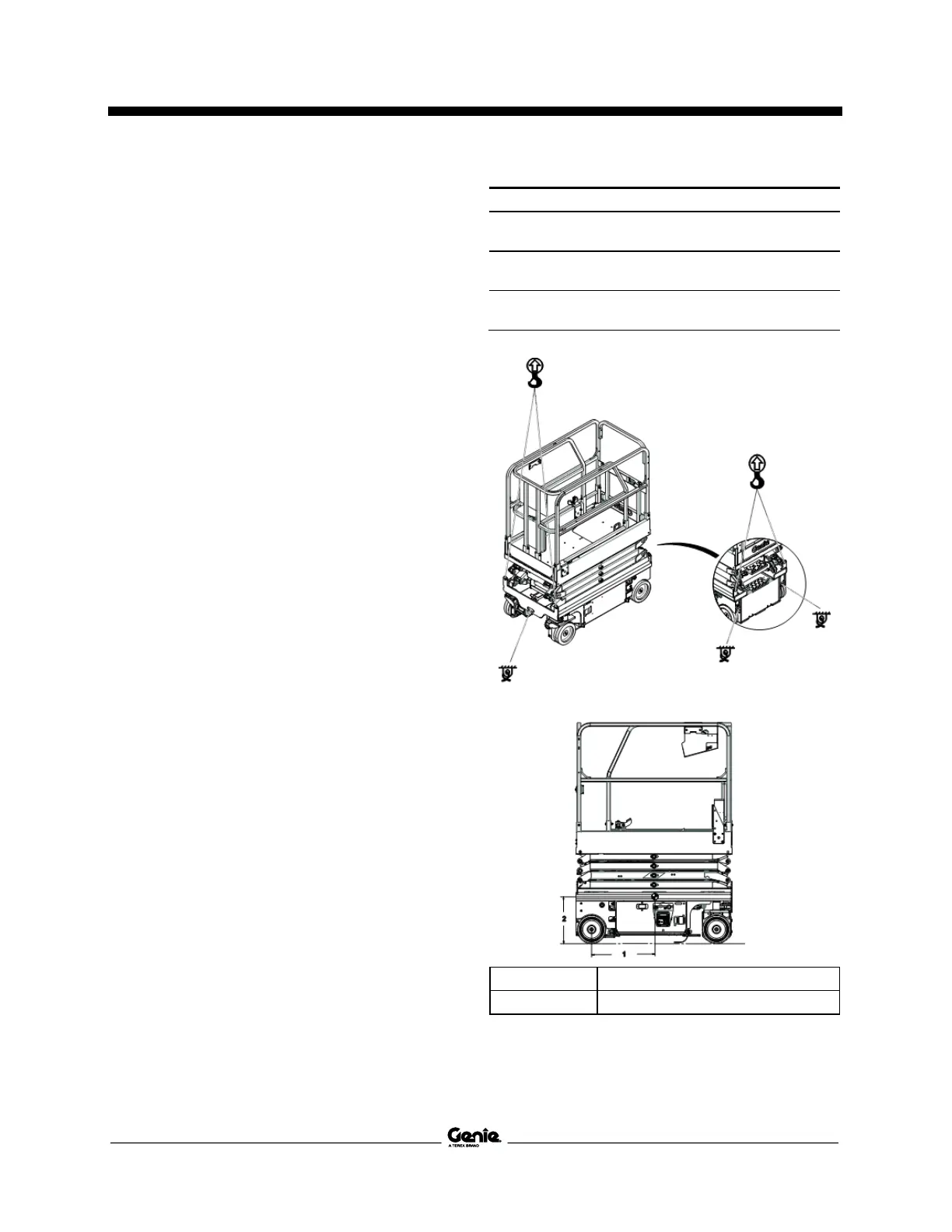

Determine the center of gravity of your machine
using the table and the picture on this page.
Attach the rigging only to the designated lifting
points on the machine. There is a 2.5 cm hole at
each corner of the drive chassis for lifting.
Adjust the rigging to prevent damage to the
machine and to keep the machine level.
Center of Gravity Table (Actual dimensions may
vary due to machine configuration, options, and
manufacturing tolerances)
Model
X Axis
Y Axis
GS-1432m
21.85 in
55.5 cm
19 in
48.3 cm
GS-1932m
21.85 in
55.5 cm
18 in
45.7 cm
GS-1932m Lite
21.85 in
55.5 cm
20 in
50.8 cm
1
X Axis
2
Y Axis
