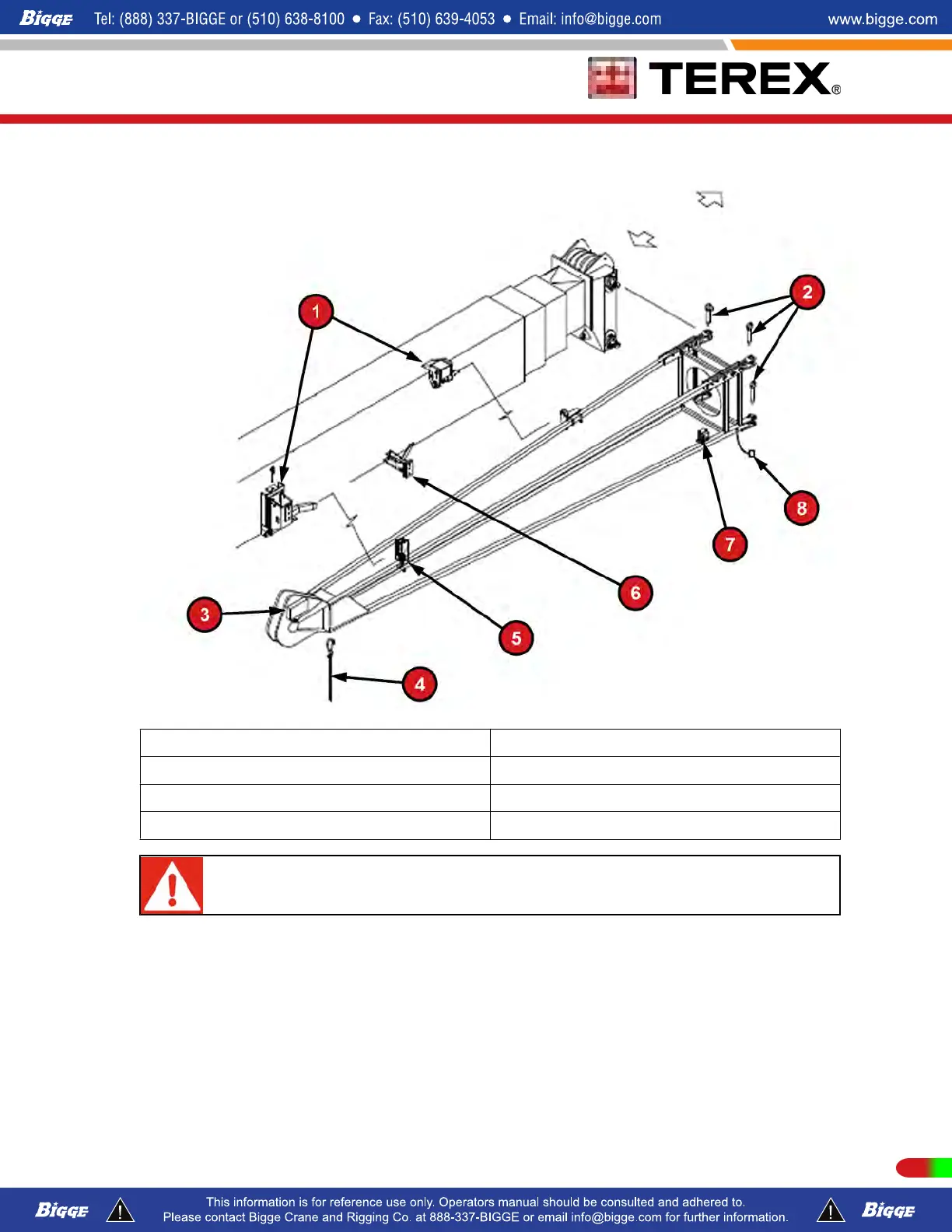

Stowing the Jib
1 Jib Storage Brackets 5 T - Handle
2 Jib Mounting Pins (4) 6 Wear Pad
3 Anti Two-block Switch 7 Anti Two-block Socket
4 Guide Rope 8 Anti Two-block Plug
Before erecting or stowing the jib, ensure that no personnel or obstacles are in
the swing path of the jib.
1. Extend and set the outriggers.
2.
Rotate the upper structure to the “over rear” position.
3.
Make sure the stinger is in the stowed position and the jib offset is at 0° offset.
4. Boom down to minimum boom angle.
5. Remove the hoist line from jib sheave and lay to left side.
6. Disconnect the anti two-block plug from the boom head and plug it in to the jib anti two-
block socket. Move the dummy plug from the jib anti two-block socket to the boom
head anti two-block socket.
Disassembly
229P/N 12261-683 REVISED: January 2015
